Vertiv Netsure User Manual

NetSure
™
Control Unit (NCU)
User Manual, UM1M830BNA
Spec. No: 1M830BNA, 1M830DNA Code: UM1M830BNA
Model No: M830B, M830D Revision M, May 12, 2017
[113]
Individual Battery Settings Page

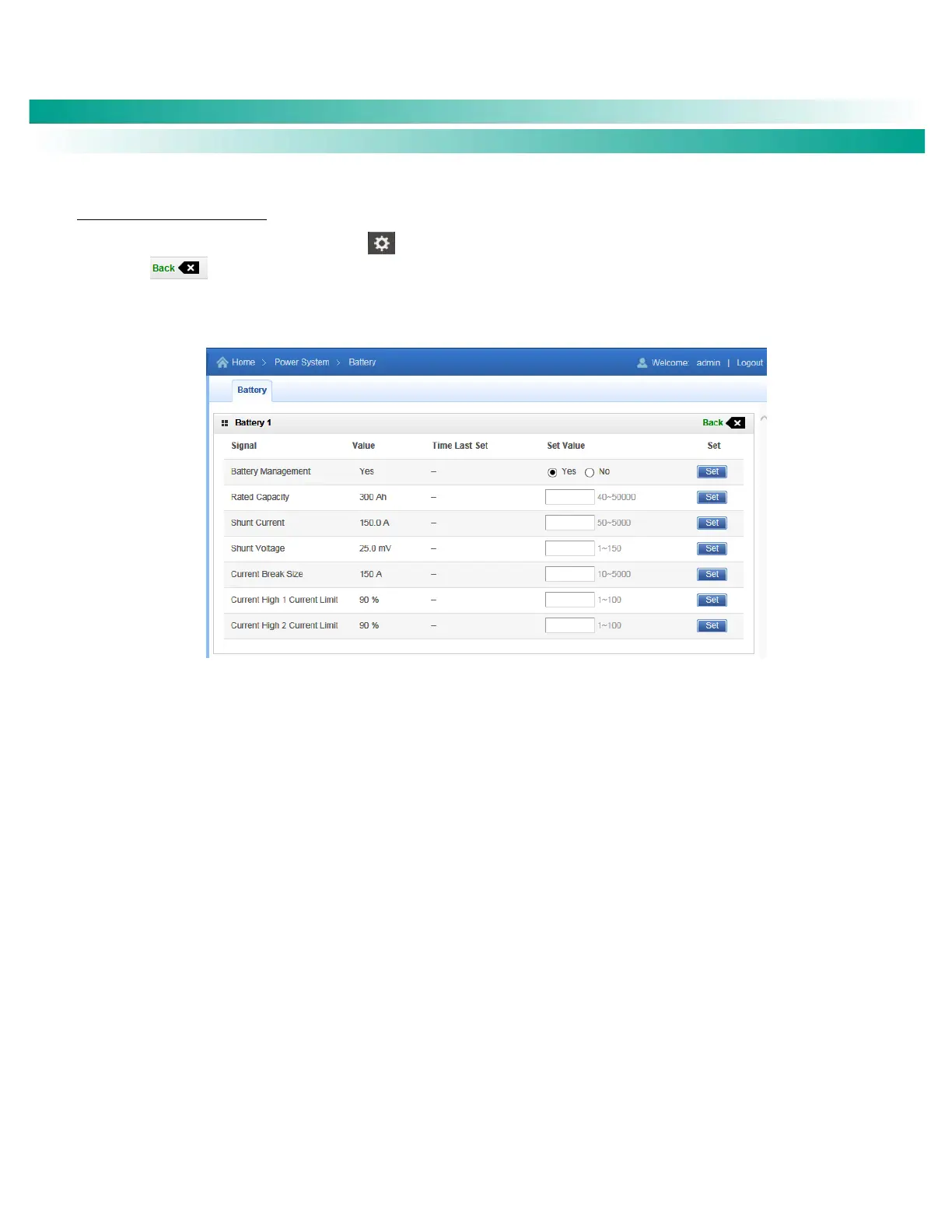

In Figure 42, Figure 43, or Figure 44; click on the symbol located on an individual battery icon to go to the individual battery settings
page. Click to go back to the individual battery status page. See Figure 51, and Figure 52, and Figure 53.
Figure 51. Individual Battery Settings Page (Battery #)
 Battery Management: Select Yes to use the battery management feature and No to not use the feature for this battery.
 Rated Capacity: Enter the battery string's rated capacity.
 Shunt Current: Enter the battery string's shunt current rating.
 Shunt Voltage: Enter the battery string's shunt voltage.
 Current Break Size: Enter the value desired as the reference for the high current alarm (typically the rating of the breaker or fuse
fed by the shunt, if applicable).
 Current High 1 Current Limit: Enter the percentage value of the "Break Value" for alarm.
 Current High 2 Current Limit: Enter the percentage value of the "Break Value" for alarm.
