LaserPLUS Product Guide VESDA
®
4
Display module
The LaserPLUS Display Module is mounted either on the detector front cover or at a remote
location in a remote mounting box or a 19” subrack. It provides a visual representation of the
smoke levels and the four alarm stages for the assigned detector. An array of fault LEDs
illuminate in different configurations to report Urgent, Minor, Zone and System faults. Up to 20
Display Modules can be assigned to one detector, however the Display Module can be
configured to report the status of only one detector at a time.

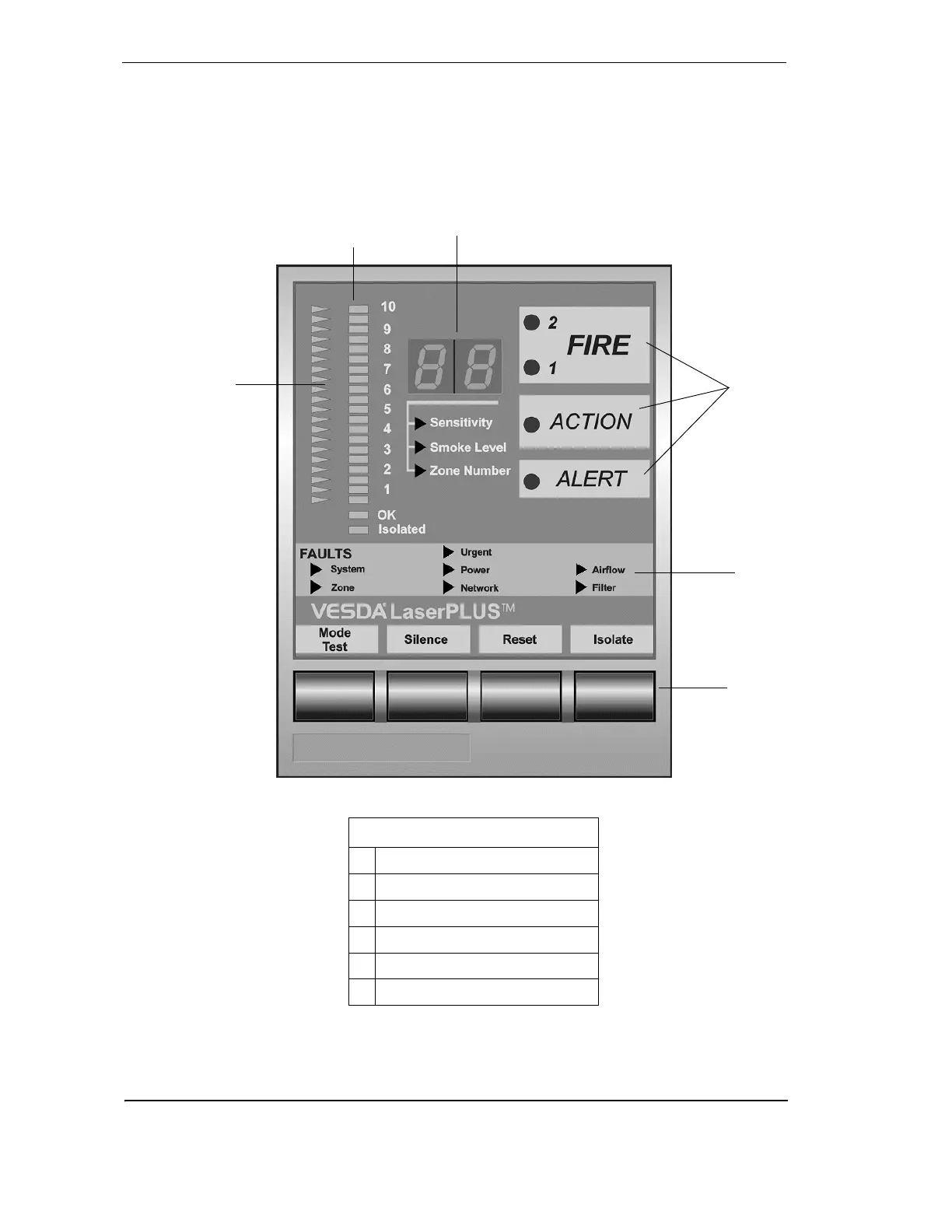

Figure 3 - Display Module for LaserPLUS
Legend
A Alarm Threshold Indicators
B Bar graph of detected smoke
C Numerical Display
D Alarm LEDs
E Fault LEDs
F Push Button Keys
A
B
C
D
E
F
