Note: Do not attempt to force the connector into its socket. If there is any difficulty, reverse
the orientation of the connector before inserting again.

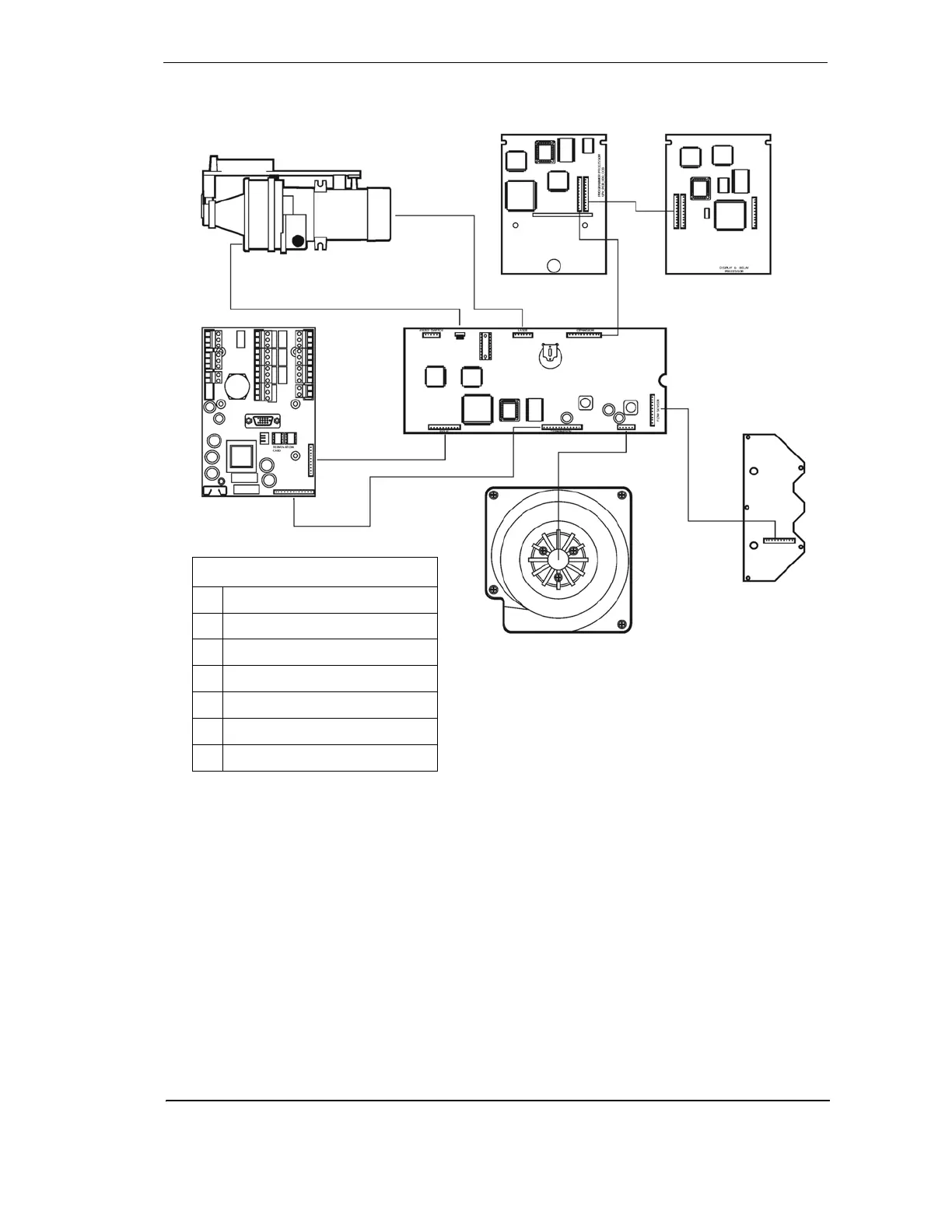

Figure 27 - Internal wiring diagram
A
B
D
F
G
E
Legend
A Detector chamber
B Programmer module
C Display module
D Detector terminal card
E Processor card
F Aspirator
G Flow sensor card
