Vespa LX 2012 User Manual

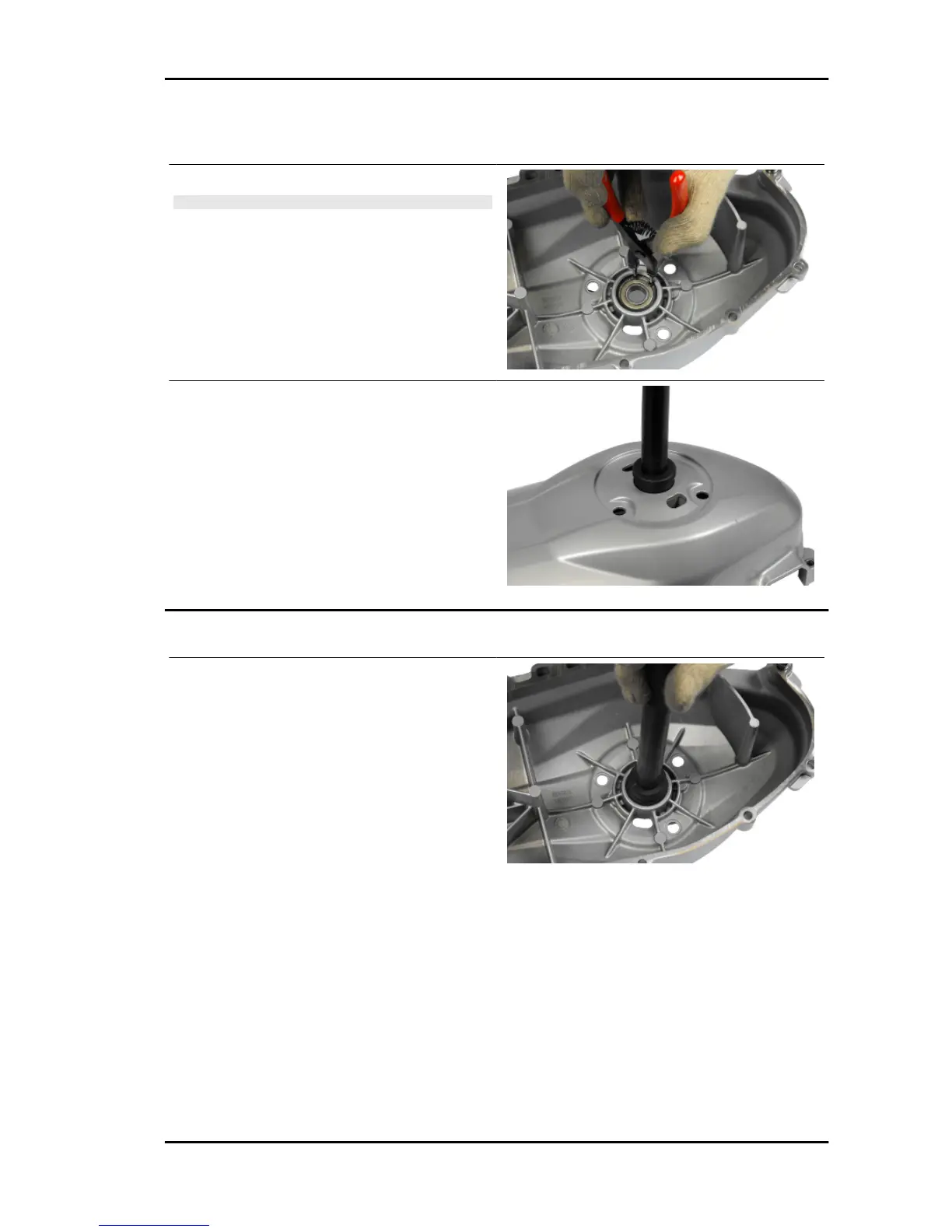

Removing the driven pulley shaft bearing
- Remove the Seeger ring.
CAUTION
PLACE THE COVER ON A SURFACE, REMOVING OR EX-
CLUDING THE ALIGNMENT DOWELS.
- Support the transmission cover adequately.
- Using appropriate tools, remove the bearing.
Specific tooling
020376Y Adaptor handle
020357Y 32 x 35-mm Adaptor
020412Y 15-mm guide
Refitting the driven pulley shaft bearing
- Use the heat gun to heat the inner part of the lid.
- Using the equipment plant a new bearing, apply
grease on the adapter and guide in order to main-
tain the position of the bearing during operation on
the vertical axis.
Specific tooling
020151Y Air heater
020376Y Adaptor handle
020358Y 37x40-mm Adaptor
020412Y 15-mm guide
Vespa LX - S 125 3V ie 150 3V ie (2012) Engine
ENG - 117
