Vespa LX 2012 User Manual

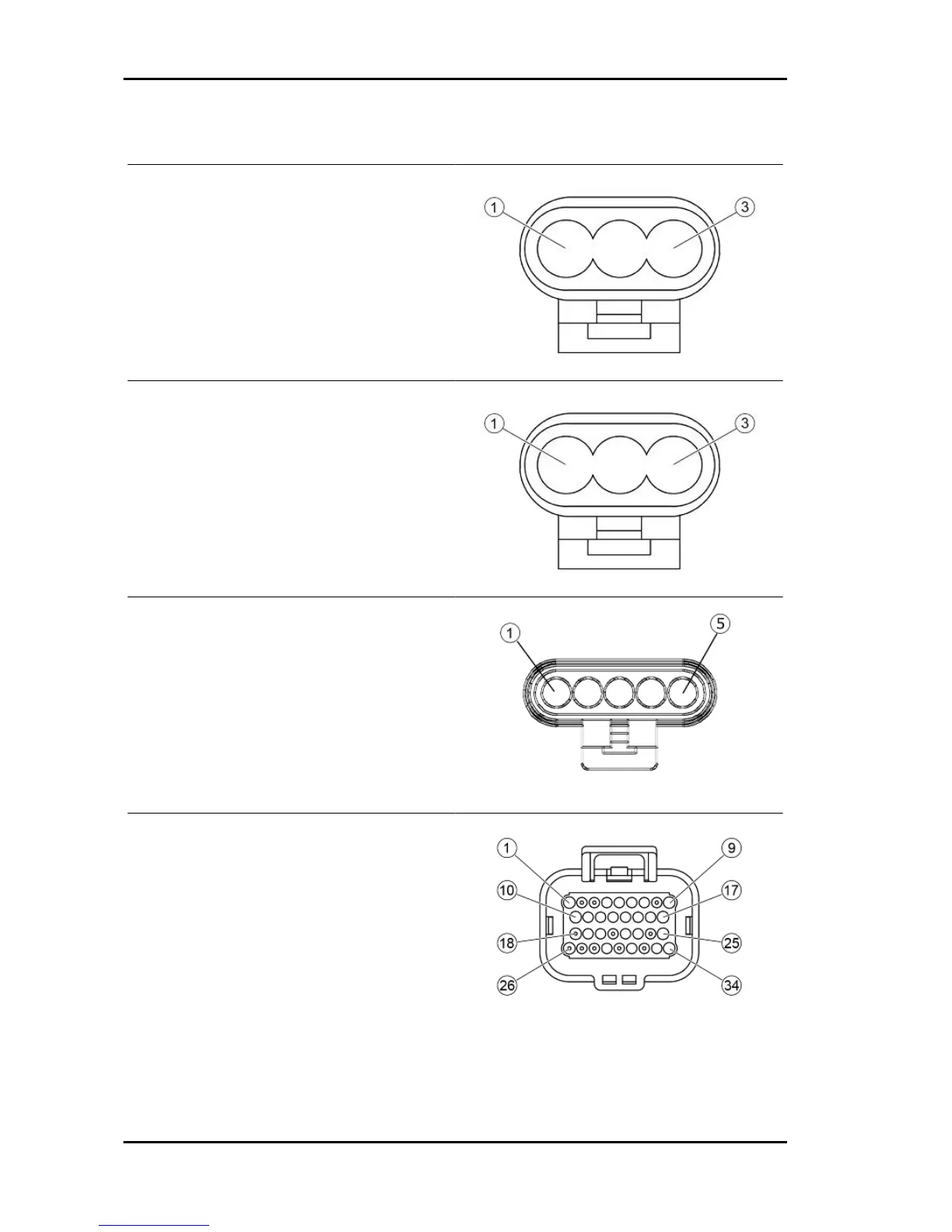

Connectors
DIAGNOSTICS CONNECTOR
1. Not connected
2. Ground lead (Black)
3. Electronic control unit (Orange-Black)
PICKUP CONNECTOR
1. Control unit positive (Red)
2. Negative from control unit (Brown)
3. Oil pressure sensor (White-Pink)
FUEL PUMP CONNECTOR
1. Not connected
2. Ground lead (Black)
3. Not connected
4. Not connected
5.Power from relay (Black - Green)
ELECTRONIC CONTROL UNIT CONNECTOR
1. H.V. COIL (Pink-Black)
2. Not connected
3. Not connected
4. Ground (Orange)
5. Starter button (Purple)
6. Ignition switched live (Orange-Blue)
7. Ground No. 1 (Black)
8. Not connected
9. Battery power (Red-White)
10. Start-up enabling switch (Purple-White)
Electrical system Vespa LX - S 125 3V ie 150 3V ie (2012)
ELE SYS - 98

Vespa LX 2012 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Transmission	Automatic CVT
Fuel Tank Capacity	8.6 liters
Seat Height	785 mm
Curb Weight	114 kg
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Max Power	10.3 hp @ 7, 750 rpm
Front Suspension	Single arm with coil spring and hydraulic shock absorber
Front Brake	200 mm
Rear Suspension	Coil spring and hydraulic shock absorber
Rear Brake	110 mm drum
