Vespa LX 2012 User Manual

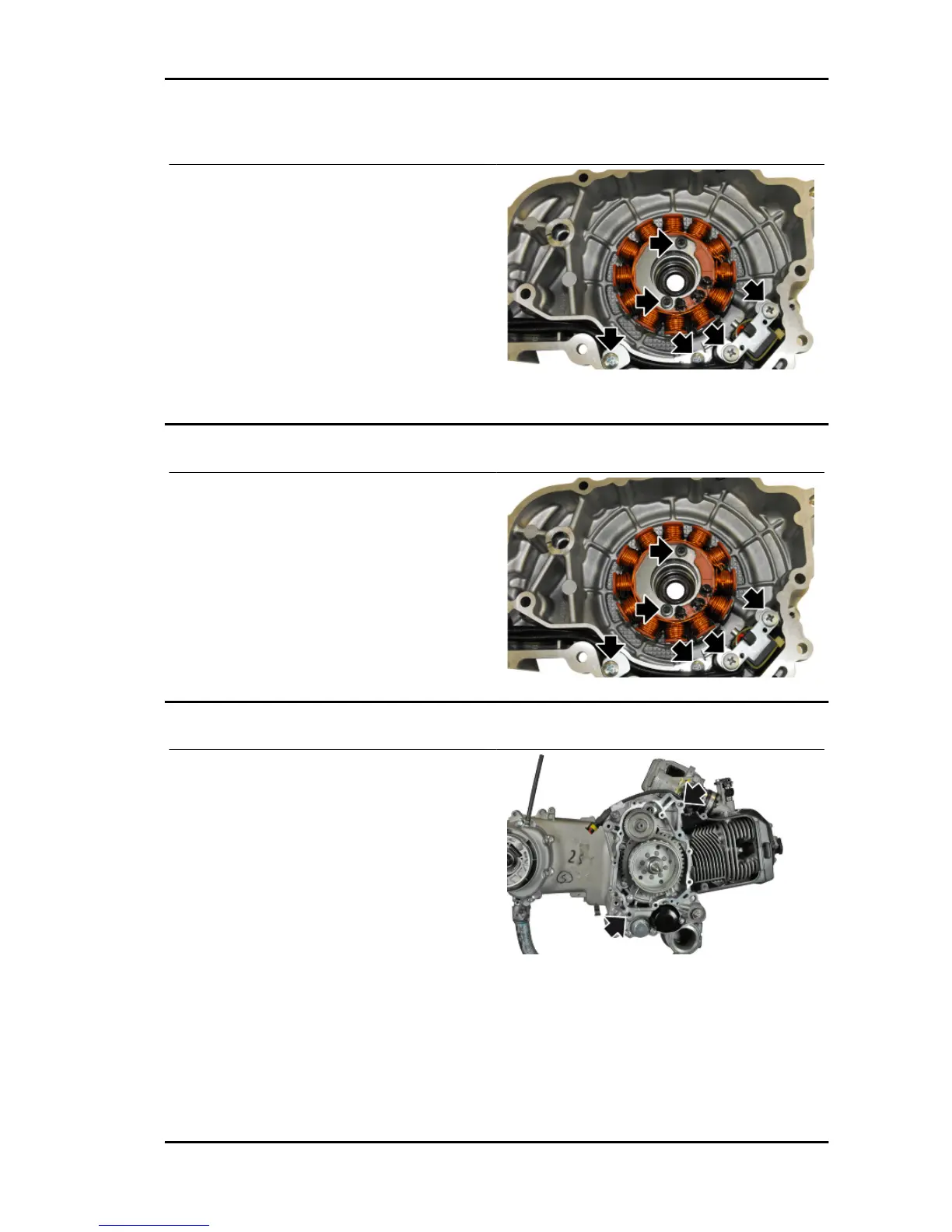

Removing the stator
- Remove the flywheel cover.
- Unscrew the 2 flywheel fixing screws and the four
pick-up fixing screws and cable harness retainer
screws.
- Remove the flywheel and the pick-up complete with cable harness.
Refitting the stator
- Refit the stator and flywheel carrying out the re-
moval procedure in reverse, tightening the retain-
ers to the specified torque.
- Respect the operation of the pick-up.
Locking torques (N*m)
Stator fixing screws 8 to 10 Pickup fixing
screws 3 to 4
Refitting the flywheel cover
- Fit the gasket and be careful with the two align-
ment dowels.
Vespa LX - S 125 3V ie 150 3V ie (2012) Engine
ENG - 137

Vespa LX 2012 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Transmission	Automatic CVT
Fuel Tank Capacity	8.6 liters
Seat Height	785 mm
Curb Weight	114 kg
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Max Power	10.3 hp @ 7, 750 rpm
Front Suspension	Single arm with coil spring and hydraulic shock absorber
Front Brake	200 mm
Rear Suspension	Coil spring and hydraulic shock absorber
Rear Brake	110 mm drum
