Vespa LX 2012 User Manual

TO REMOVE THE LOWER SEAT OF THE LOWER STEERING BEARING JUST USE A SCREW-
DRIVER AS A LEVER BETWEEN THE SEATING AND THE SLEEVE.
Specific tooling
020004Y Punch for removing steering bearings from headstock

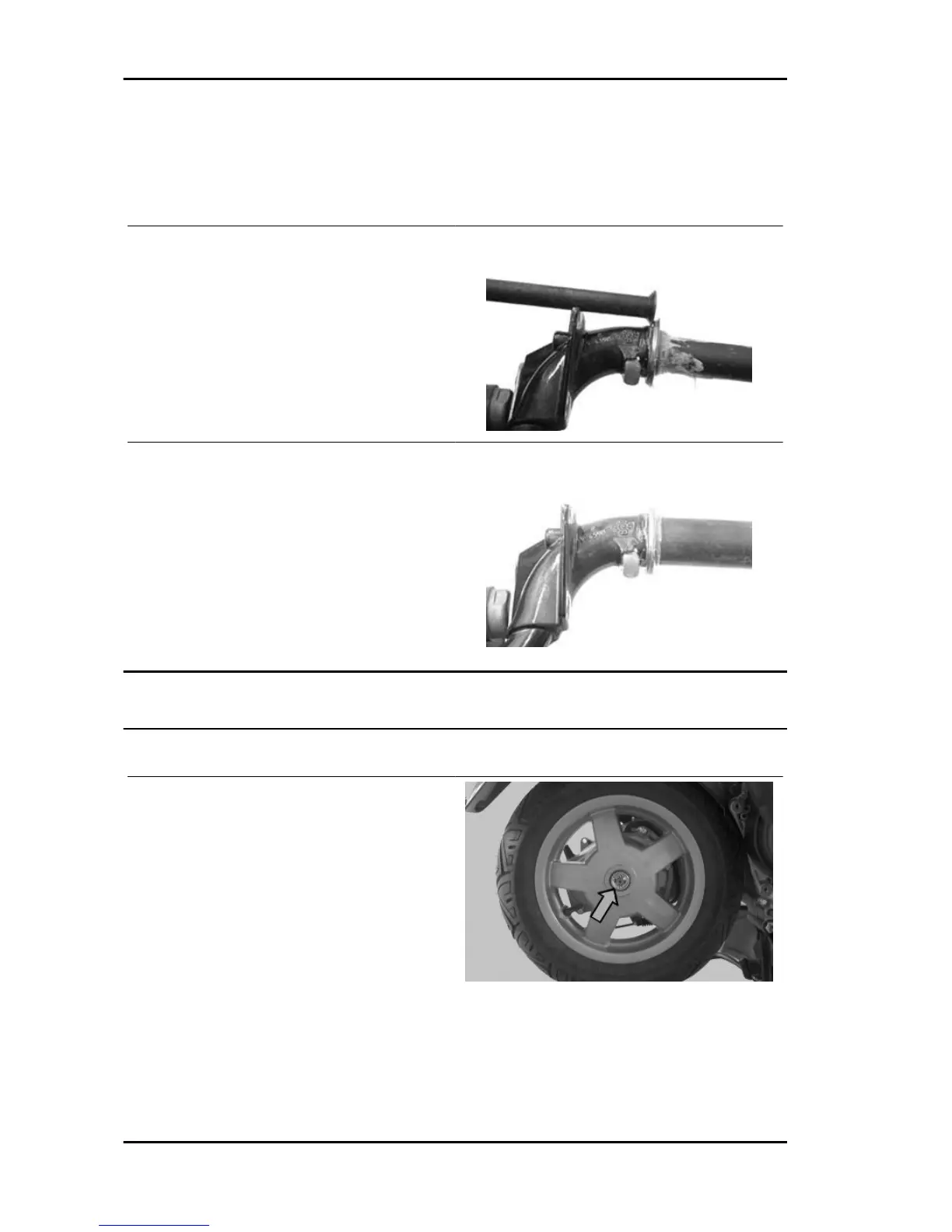

- Remove the fifth wheel fitting and the dust gaiter
on the steering bearing as shown in figure, using
the specific tool. Proceed giving a few taps with the
mallet.
Specific tooling
020004Y Punch for removing steering bearings
from headstock
- Refit the fifth wheel fitting and the dust gaiter on
the steering bearing until they stop, using the spe-
cific tool.
Specific tooling
006029Y Punch for fitting steering bearing seat
on steering tube
Rear
Removing the rear wheel
- Remove the silencer.
- Remove the cotter pin and remove the cap.
Suspensions Vespa LX - S 125 3V ie 150 3V ie (2012)
SUSP - 220

Vespa LX 2012 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Transmission	Automatic CVT
Fuel Tank Capacity	8.6 liters
Seat Height	785 mm
Curb Weight	114 kg
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Max Power	10.3 hp @ 7, 750 rpm
Front Suspension	Single arm with coil spring and hydraulic shock absorber
Front Brake	200 mm
Rear Suspension	Coil spring and hydraulic shock absorber
Rear Brake	110 mm drum
