Vespa LX 2012 User Manual

- Assemble a new roller bearing on the shock ab-
sorber side and move it until it stops using the
specific tool

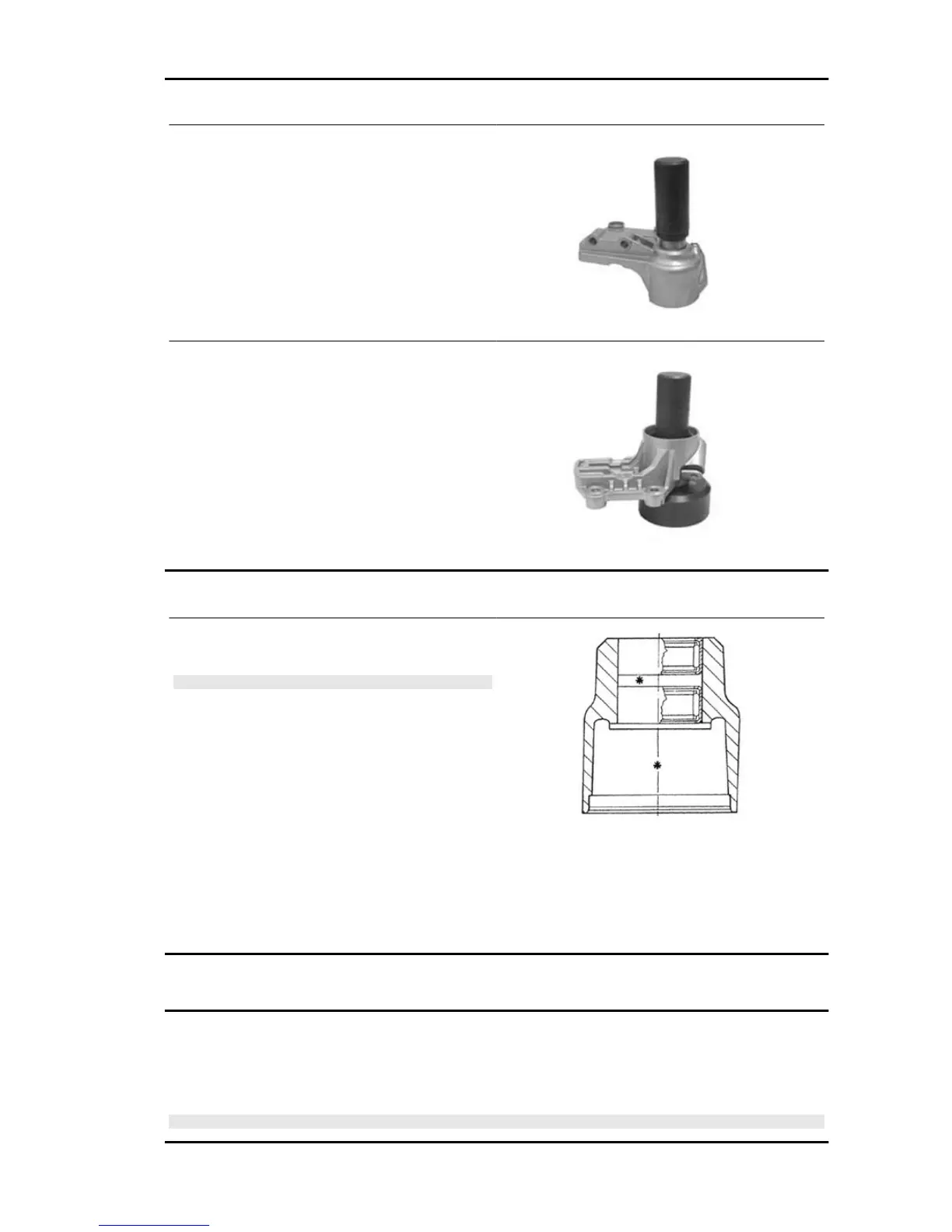

Specific tooling
020036Y Punch
- Suitably hold the brake calliper - shock absorber
attachment bracket
- Assemble a new roller bearing on the wheel hub
side and move it until it stops using the specific tool
Specific tooling
020037Y Punch
Refitting
- Refit the parts in reverse order of the removal
operation.
CAUTION
BEFORE CARRYING OUT REFITTING OPERATIONS IN
THE AREAS MARKED WITH AN ASTERISK, LUBRICATE
THEM WITH THE RECOMMENDED PRODUCT
Specific tooling
020036Y Punch
020037Y Punch
Recommended products
AGIP GREASE PV2 Ivory smooth-textured,
slightly-stringy anhydrous calcium-base
grease.
TL 9150 066, NATO G 460 symbol
Steering bearing
Removal
- Use the specific tool both to remove the lower seat of the upper bearing and to remove the upper seat
of the lower bearing fitted on the chassis.
N.B.
Vespa LX - S 125 3V ie 150 3V ie (2012) Suspensions
SUSP - 219

Vespa LX 2012 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Transmission	Automatic CVT
Fuel Tank Capacity	8.6 liters
Seat Height	785 mm
Curb Weight	114 kg
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Max Power	10.3 hp @ 7, 750 rpm
Front Suspension	Single arm with coil spring and hydraulic shock absorber
Front Brake	200 mm
Rear Suspension	Coil spring and hydraulic shock absorber
Rear Brake	110 mm drum
