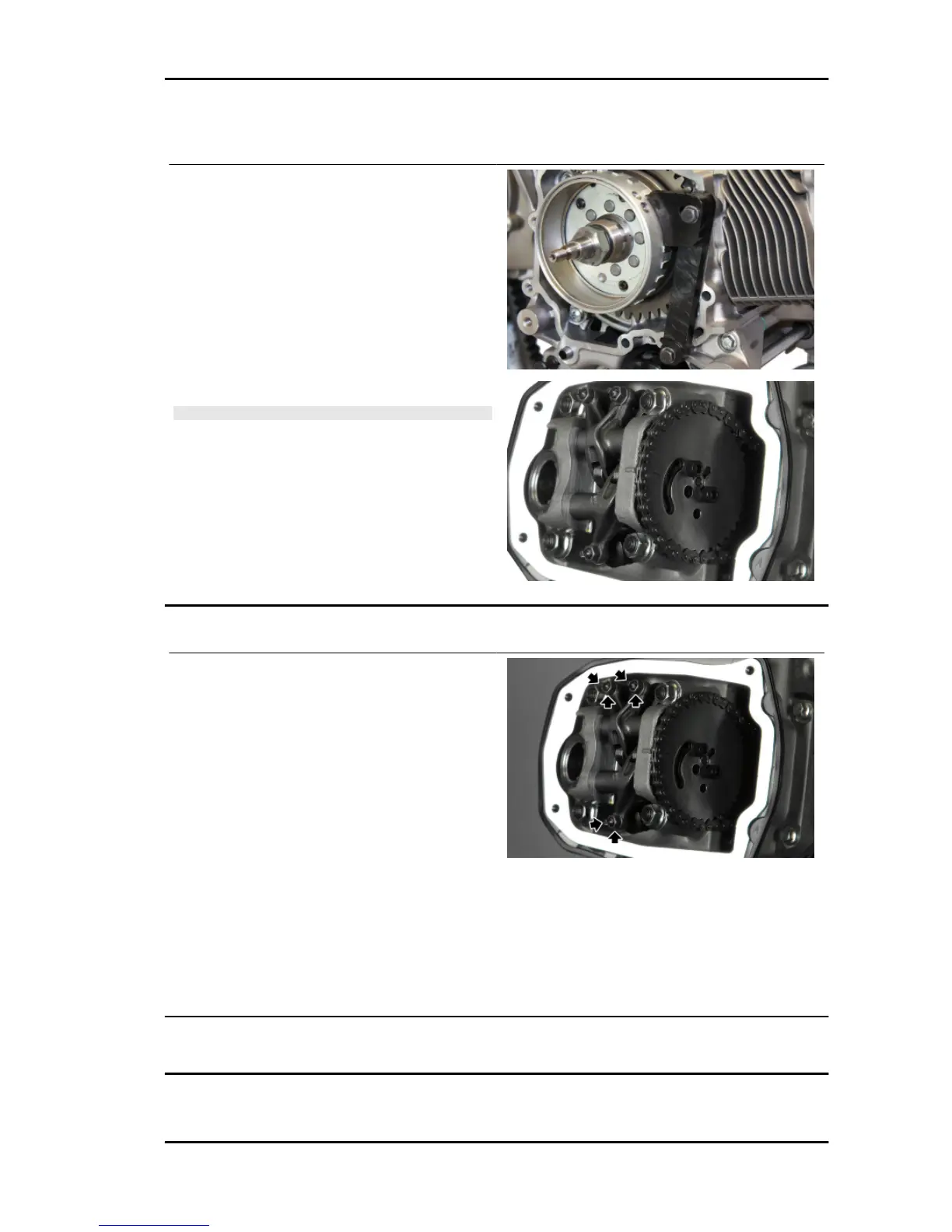

Checking the ignition timing
Position the engine at top dead centre (TDC) in
compression. To do this, use the appropriate tools.
Use the holes on the engine crankcase to secure
the tool.
Position the specific tool in the window between
the flywheel pick-up references as illustrated in the
figure.
The arrows stamped respectively on the valve
frame and sprocket must coincide.
N.B.
IF THE TIMING UNIT IS NOT IN PHASE CHECK THE COR-
RECT FITTING OF COMPONENTS.
Checking the valve clearance
-To check valve clearance, centre the reference
marks of the timing system.
- Use a feeler gauge to check that the clearance
between the valve and the register corresponds
with the indicated values. When the valve clear-
ance values, intake and exhaust respectively, are
different from the ones indicated below, adjust
them by loosening the lock nut and operating on
the corresponding set screw, as shown in the fig-
ure.
Characteristic
Valve clearance (cold engine)
intake: 0.08 mm exhaust: 0.08 mm
Braking system
Vespa LX - S 125 3V ie 150 3V ie (2012) Maintenance
MAIN - 45

Vespa LX 2012 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Transmission	Automatic CVT
Fuel Tank Capacity	8.6 liters
Seat Height	785 mm
Curb Weight	114 kg
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Max Power	10.3 hp @ 7, 750 rpm
Front Suspension	Single arm with coil spring and hydraulic shock absorber
Front Brake	200 mm
Rear Suspension	Coil spring and hydraulic shock absorber
Rear Brake	110 mm drum
