Vespa LX 2012 User Manual

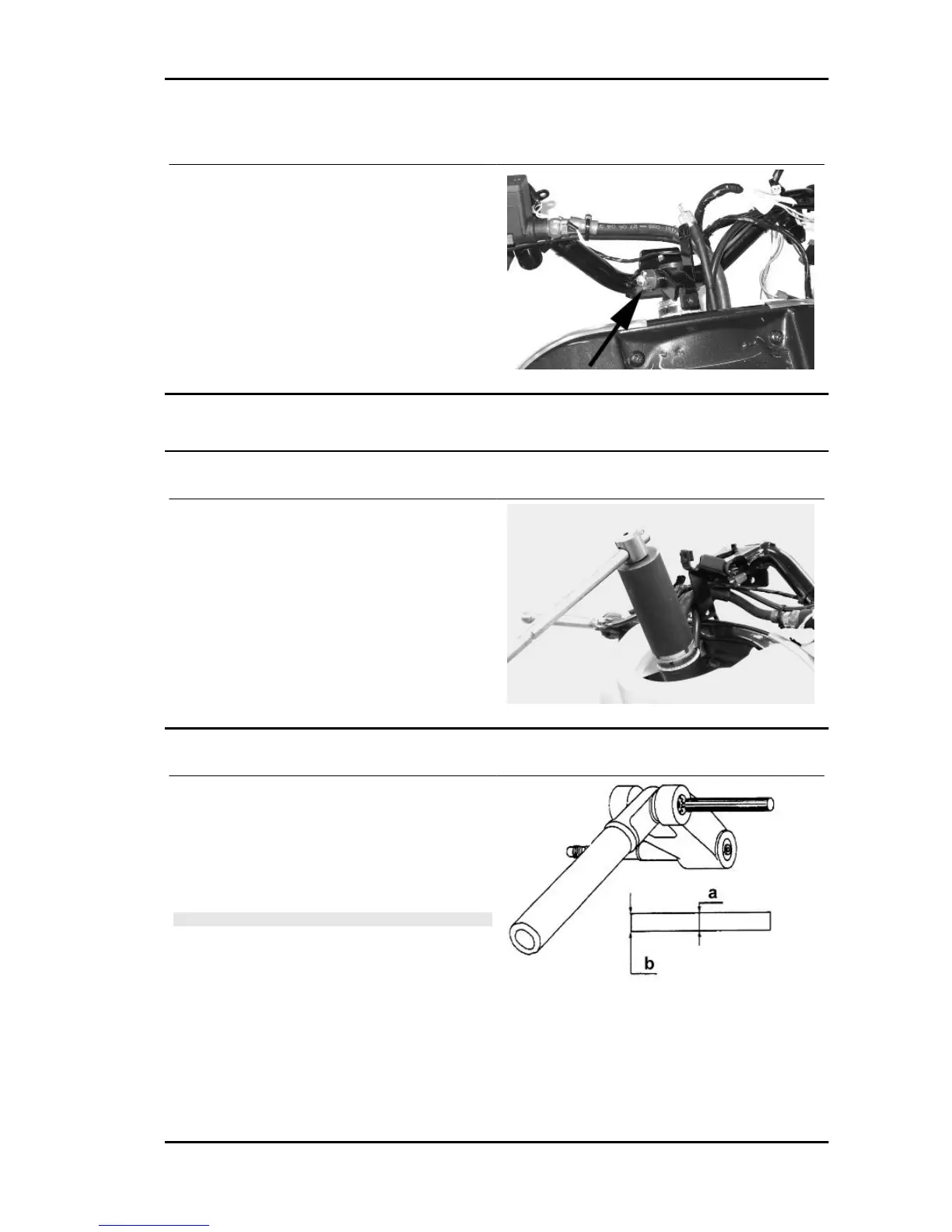

Refitting
Carry out the removal operations but in the reverse
order, observing the prescribed tightening torque.
Locking torques (N*m)
Handlebar lock nut 45 to 50
Steering column
Removal
After removing the upper seat, lean the vehicle on
one side and extract the steering tube completely
from the fork.
Specific tooling
020055Y Wrench for steering tube ring nut
Overhaul
Servicing the front suspension-steering assembly,
described below, deals mainly with replacing parts
(pin- NADELLA roller bushings - sealing rings unit
and dust gaiter) which connect the steering tube
to the front wheel holder swinging hub.
N.B.
BEFORE PROCEEDING WITH THE DESCRIBED SERVICE,
CHECK THAT THE STEERING TUBE AND THE WHEEL
HOLDER HUB ARE IN EXCELLENT CONDITIONS: ONLY
THEN IS THE SERVICE JUSTIFIABLE.
MOREOVER, REMEMBER THE STEERING TUBE SHOULD
BE REPLACED WITH A NEW ONE WHEN DEFORMED.
a = Ø 12 Punch
b = Sharp-edged end
Vespa LX - S 125 3V ie 150 3V ie (2012) Suspensions
SUSP - 211
