Removing the clutch

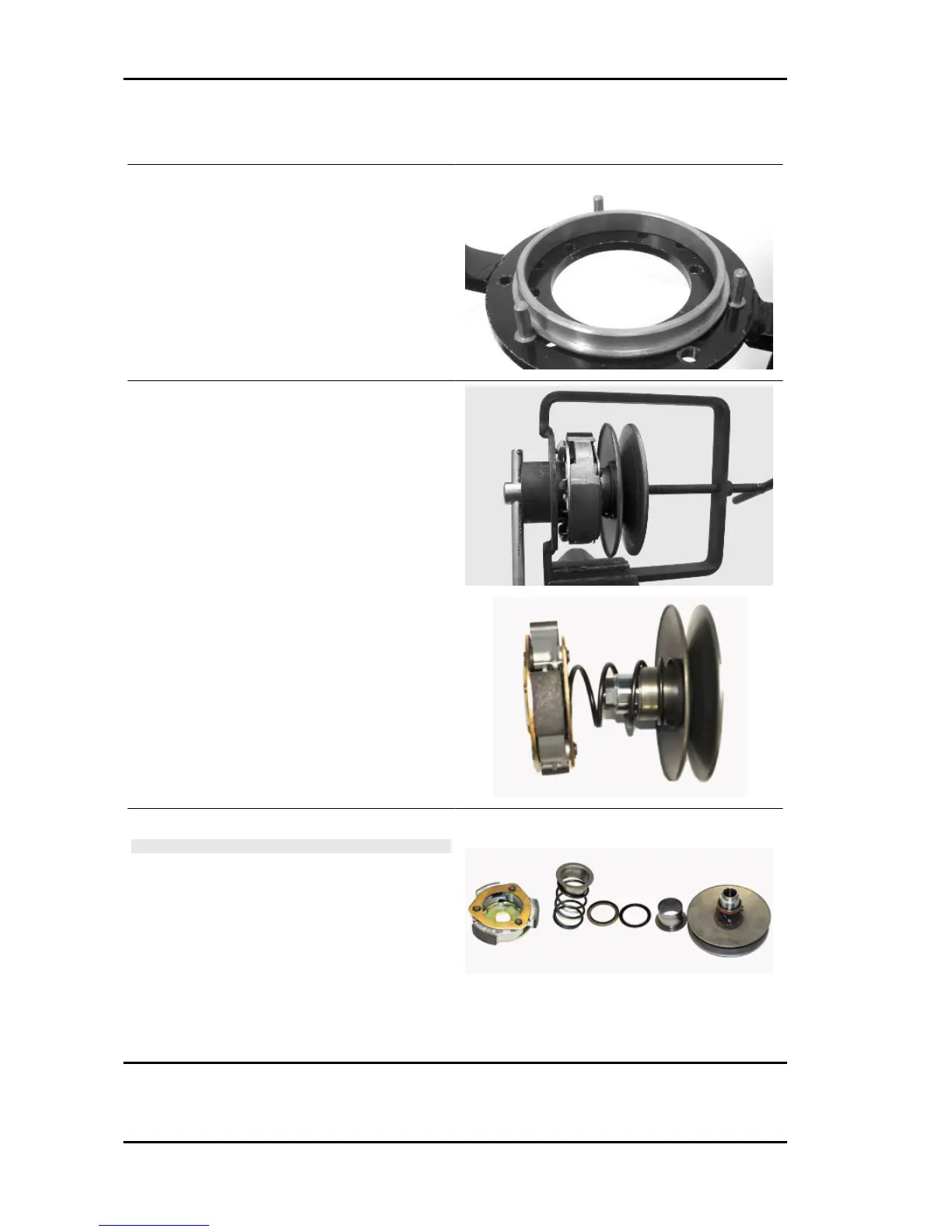

- Prepare the locking tool for the driven pulley with
the pins half-screwed in the tool set to «C».
- Introduce the adapter ring 11 with the chamfering
facing the inside of the tool.
- Fit the driven pulley unit in the tool so as the bolt
get into the masses clutch support holes. After-
wards make the support screw make contact with
a minimum force.
- Using the specific wrench, inserted 46 mm from
the side, remove the clutch central locking nut.
- Separate the components of the driven pulley.
CAUTION
THE TOOL MUST BE FIRMLY FIXED IN THE VICE AND THE
CENTRAL SCREW MUST NOT BE TIGHTENED WITH EX-
CESSIVE TORQUE AS THIS MAY DAMAGE THE PULLEY
OR DEFORM THE SPECIFIC TOOL.
Specific tooling
020444Y Tool for fitting/ removing the driven
pulley clutch
020444Y011 adapter ring
020444Y009 wrench 46 x 55
Engine Vespa LX - S 125 3V ie 150 3V ie (2012)
ENG - 120
