Vespa LX 2012 User Manual

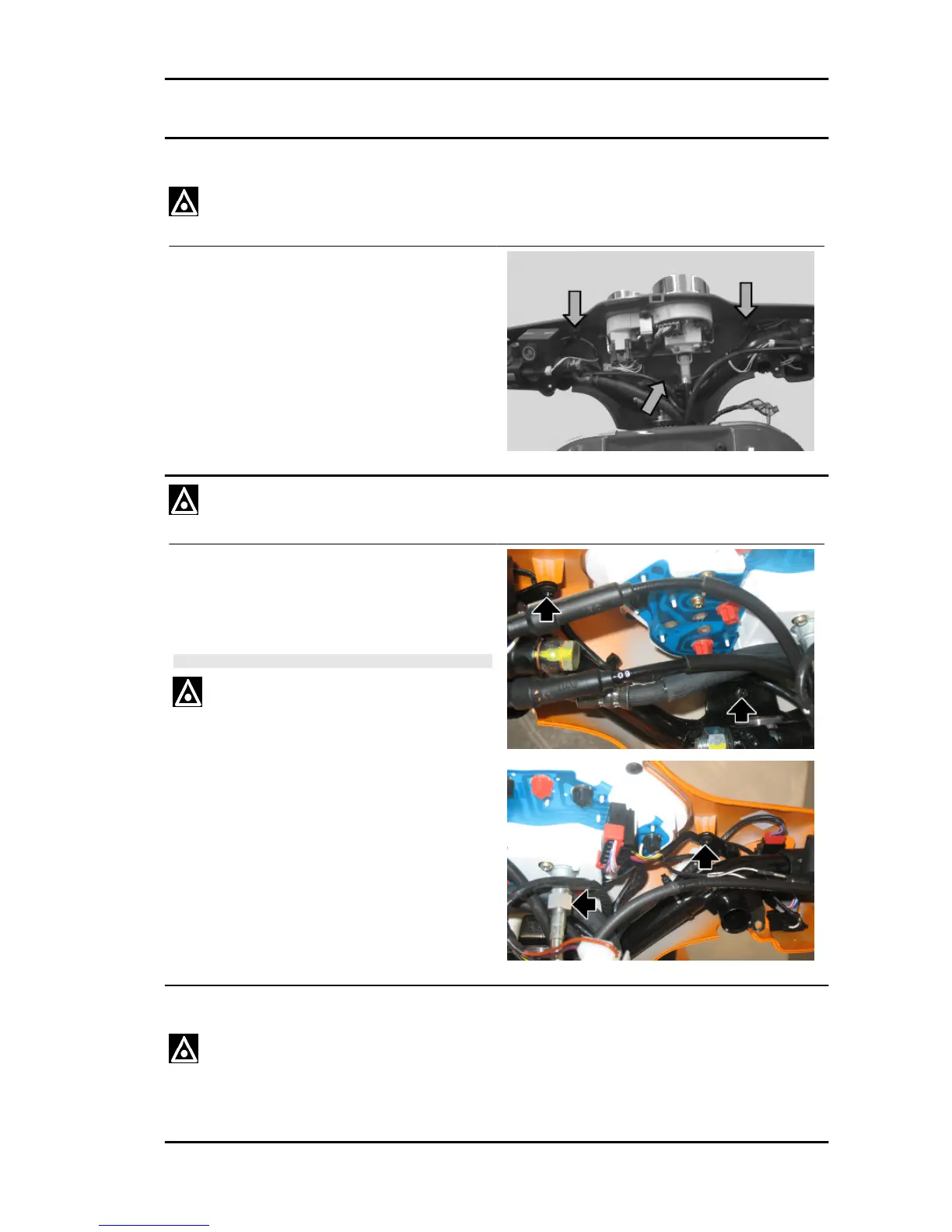

Rear handlebar cover
THE FOLLOWING INDICACTIONS REFER TO THE S VERSION.
- Remove the front handlebar cover.
- Undo the three screws indicated in figure fixing it
to the handlebar, the odometer transmission and
the electrical connectors.
THE FOLLOWING INDICACTIONS REFER TO THE LX VERSION.
- Remove the front handlebar cover.
- Undo the three screws indicated in figure fixing it
to the handlebar, the odometer transmission and
the electrical connectors.
WARNING
DO NOT LEAVE THE REMOVED INSTRUMENT DANGLING
OR UPSIDE DOWN AS THIS COULD DAMAGE IT IRREP-
ARABLY. FAILURE TO OBSERVE THIS INSTRUCTION
CAUSES THE LOSS OF CALIBRATION OF THE INSTRU-
MENT PANEL WHICH, ALTHOUGH OPERATIONAL, INDI-
CATES INCORRECT VALUES.
Instrument panel
THE FOLLOWING INDICACTIONS REFER TO THE S VERSION.
Vespa LX - S 125 3V ie 150 3V ie (2012) Chassis
CHAS - 237
