Vespa LX 2012 User Manual

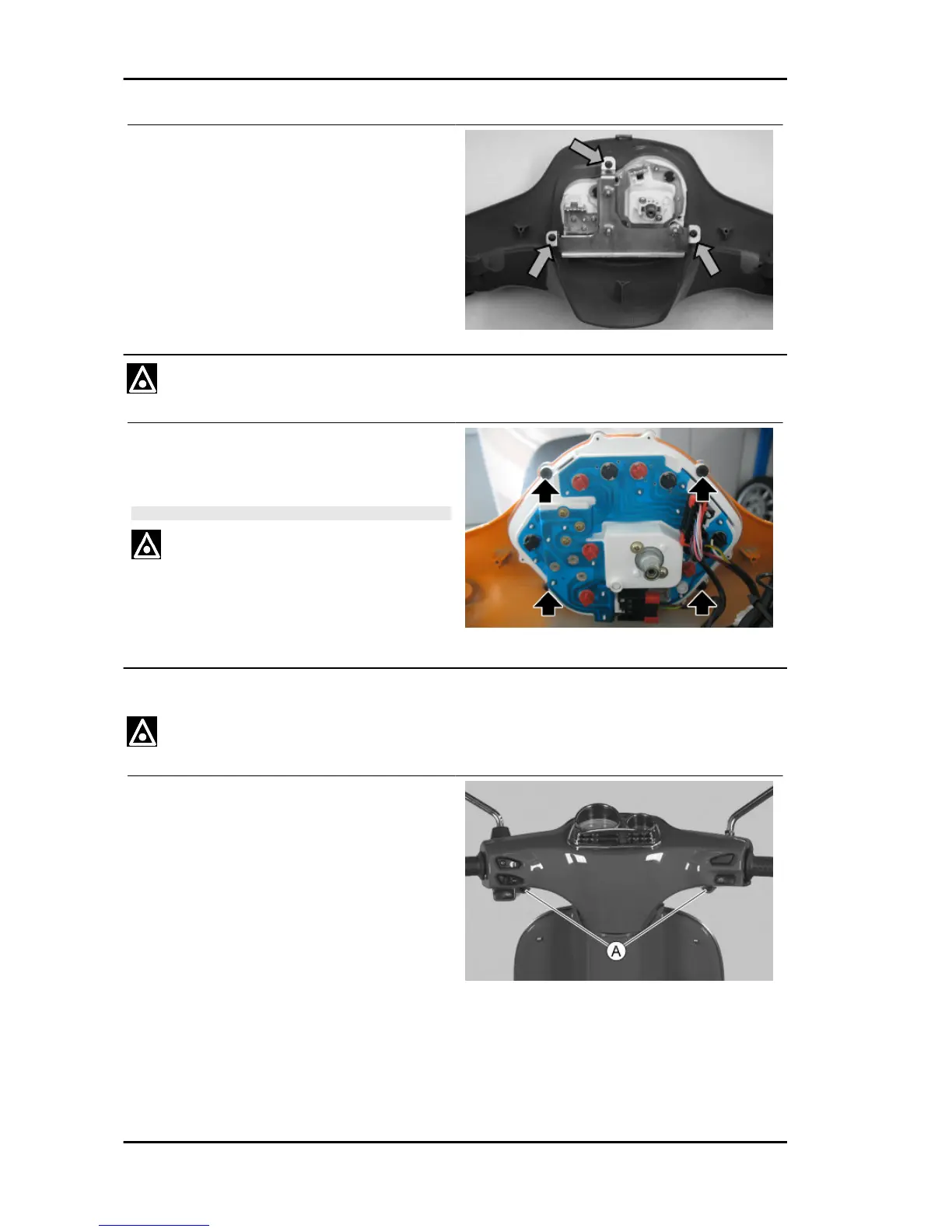

- Remove the rear handlebar cover.
- Undo the three screws indicated fixing the rear
handlebar cover.
THE FOLLOWING INDICACTIONS REFER TO THE LX VERSION.
- Remove the rear handlebar cover.
- Undo the four screws indicated fixing the rear
handlebar cover.
WARNING
DO NOT LEAVE THE REMOVED INSTRUMENT DANGLING
OR UPSIDE DOWN AS THIS COULD DAMAGE IT IRREP-
ARABLY. FAILURE TO OBSERVE THIS INSTRUCTION
CAUSES THE LOSS OF CALIBRATION OF THE INSTRU-
MENT PANEL WHICH, ALTHOUGH OPERATIONAL, INDI-
CATES INCORRECT VALUES.
Front handlebar cover
THE FOLLOWING INDICACTIONS REFER TO THE S VERSION.
Proceed as follows:
-Remove the rear-view mirrors.
- Undo the two screws «A».
Chassis Vespa LX - S 125 3V ie 150 3V ie (2012)
CHAS - 238
