When fitting the fork, lubricate with the steering
bearing tracks with the recommended grease.

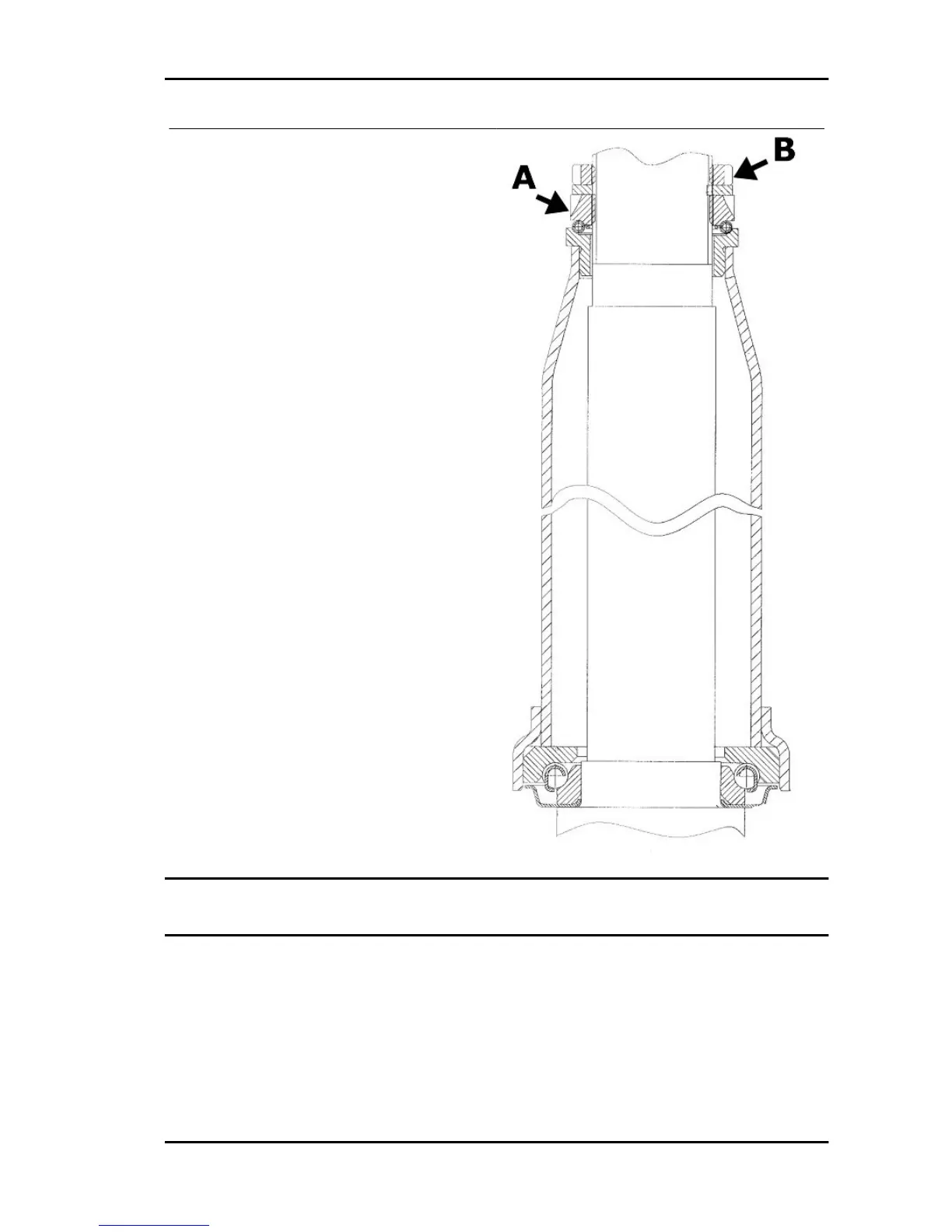

Tighten the lower ring nut "A" and the upper ring
nut "B" to the specified torque
Recommended products
AGIP GREASE PV2 Ivory smooth-textured,
slightly-stringy anhydrous calcium-base
grease.
TL 9150 066, symbol NATO G 460
Locking torques (N*m)
Steering lower ring nut 8 ÷ 10 Steering upper
ring nut 35 to 40
Front shock absorber
Vespa LX - S 125 3V ie 150 3V ie (2012) Suspensions
SUSP - 215

Vespa LX 2012 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Transmission	Automatic CVT
Fuel Tank Capacity	8.6 liters
Seat Height	785 mm
Curb Weight	114 kg
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Max Power	10.3 hp @ 7, 750 rpm
Front Suspension	Single arm with coil spring and hydraulic shock absorber
Front Brake	200 mm
Rear Suspension	Coil spring and hydraulic shock absorber
Rear Brake	110 mm drum
