Use a suitable punch with the dimensions indica-
ted on the figure; hit with a mallet until the wedging
washer is crushed and then extract it with the help
of a pointed end.
Repeat the operation for the second washer using
the punch on the side opposite to the one shown
in the figure.

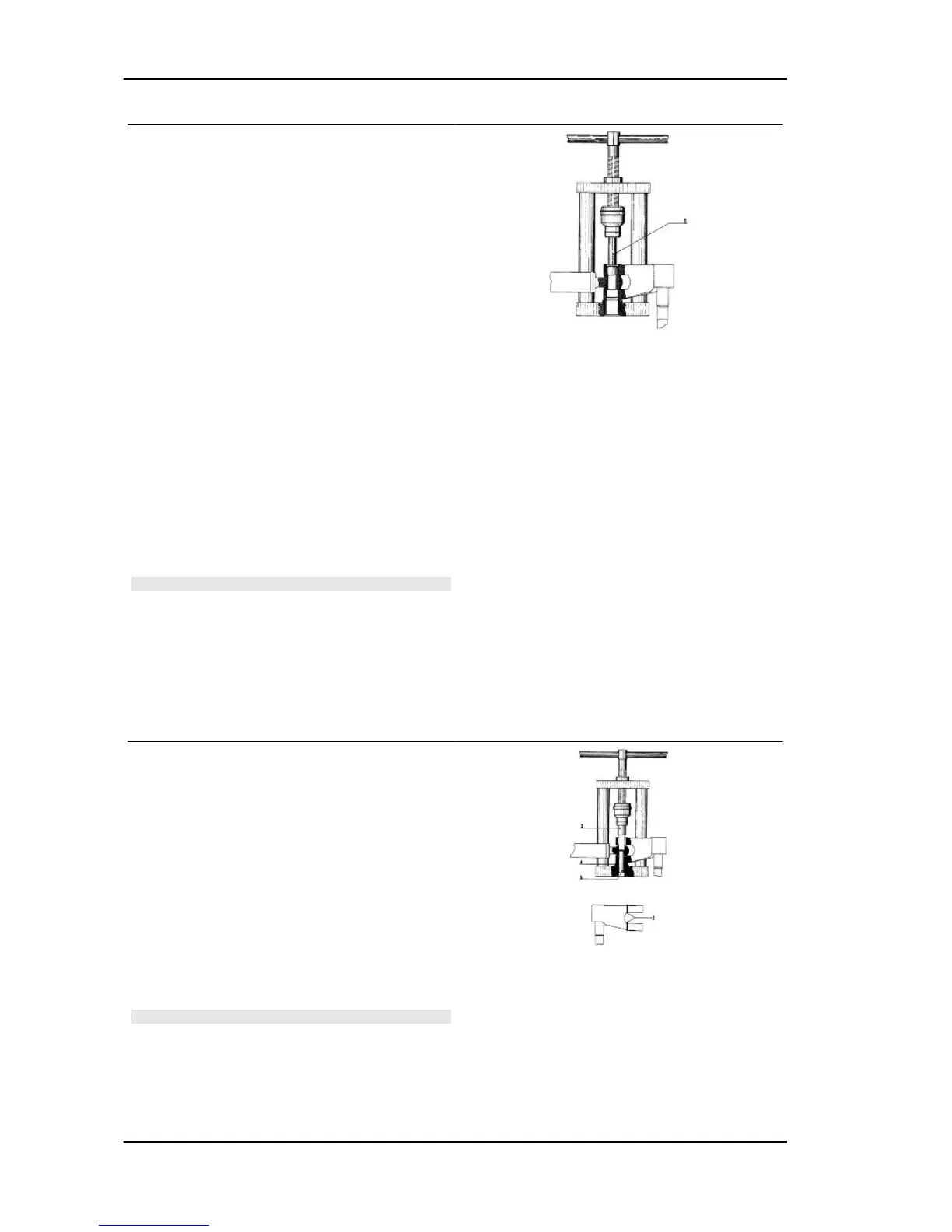

Use the tool fitted with part 1 as shown in the figure
and move the tool handgrip until the pin and the
NADELLA are simultaneously ejected in the direc-
tion opposite the tool thrusting force.
After removing the pin and the first NADELLA, the
swinging hub gets detached from the steering
tube.
To remove the second NADELLA, use the tool fit-
ted with part 2 instead of part 1, on the side oppo-
site the one shown in the figure.
N.B.
DURING THE REMOVAL OPERATIONS DESCRIBED
ABOVE, THE ROLLER BUSHINGS ARE DESTROYED
WHEN THE EXTRACTOR IS USED. UPON REFITTING, IT IS
THEREFORE NECESSARY TO USE NEW BUSHINGS AS
WELL AS A NEW PIN, NEW SEALING RINGS AND DUST
GAITER.
Specific tooling
020021Y Front suspension service tool
Connect the swinging hub to the steering tube with
the guiding pin.
- Use the tool fitted with part 3 on the stem and part
4.
Lubricate the pin with recommended grease and
insert it temporarily on the swinging hub, move the
tool handgrip until part 3 is fully inserted on the
steering tube.
After fitting the pin, insert the two spacers, slightly
hitting them with the mallet.
N.B.
BEFORE PROCEEDING WITH THE DESCRIBED FITTING,
PLACE THE TWO DUST GAITER RINGS ON THE SWING-
ING HUB AS SHOWN IN THE FIGURE.
Specific tooling
020021Y Front suspension service tool
Suspensions Vespa LX - S 125 3V ie 150 3V ie (2012)
SUSP - 212
