Vespa LX 2012 User Manual

11. Lambda probe positive (Green-Blue)
12. Lambda probe negative (Light blue-Black)
13. Water temperature sensor (Sky blue-Green)
14. Immobilizer aerial (Orange-White)
15. Ground sensors (Grey-Green)
16. Serial line K (Orange-Black)
17. Immobilizer (Yellow)
18. Not connected
19. Side stand (Brown - Red)
20. Speed sensor negative (Brown)
21. Not connected
22. Injection load relay (Black-Purple)
23. Ground No. 2 (Black)
24. Not connected
25. Injection warning light (Brown-White)
26. Not connected
27. Not connected
28. Not connected
29. Engine speed sensor positive (Red)
30. Not connected
31. Lambda probe heater (Light blue-Red)
32. Not connected
33. Low beam lights automatic ignition enabling
(White-Black)
34. Fuel injector (Red-Yellow)

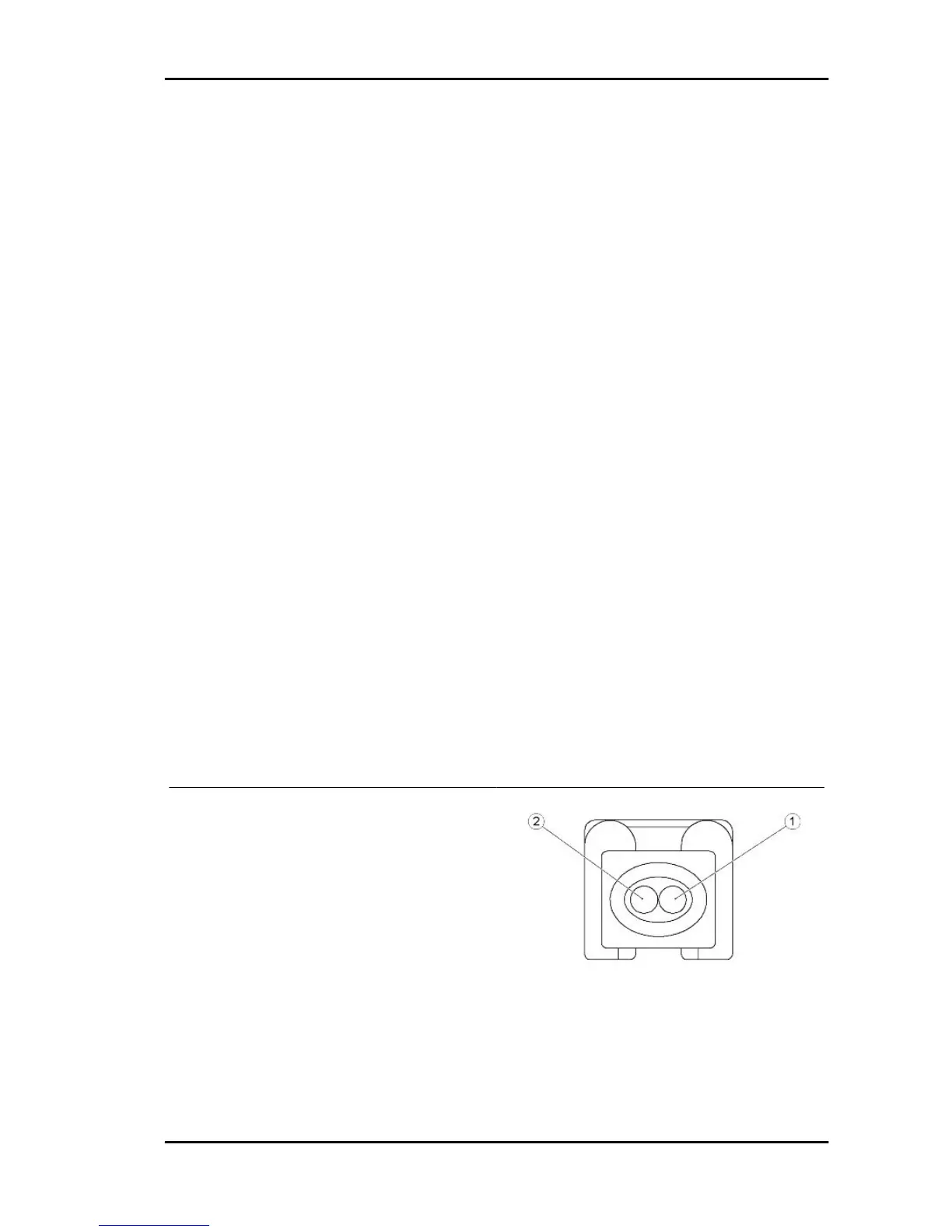

ENGINE TEMPERATURE SENSOR CONNEC-
TOR
1. Electronic control unit (Sky blue - Green)
2. Ground lead (Grey-Green)
Vespa LX - S 125 3V ie 150 3V ie (2012) Electrical system
ELE SYS - 99

Vespa LX 2012 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Transmission	Automatic CVT
Fuel Tank Capacity	8.6 liters
Seat Height	785 mm
Curb Weight	114 kg
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Max Power	10.3 hp @ 7, 750 rpm
Front Suspension	Single arm with coil spring and hydraulic shock absorber
Front Brake	200 mm
Rear Suspension	Coil spring and hydraulic shock absorber
Rear Brake	110 mm drum
