Vespa LX 2012 - Page 100

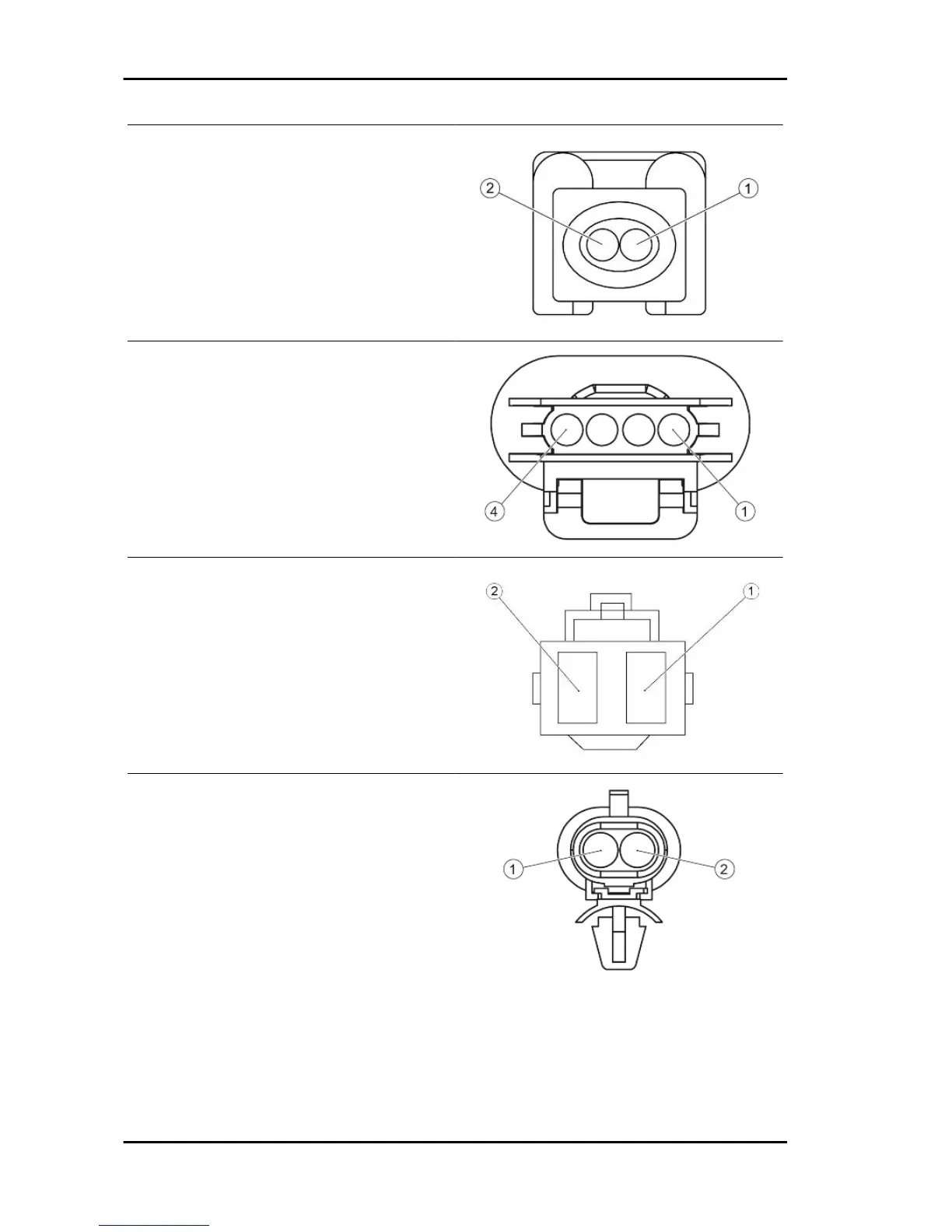

INJECTOR CONNECTOR
1. Power from relay (Black - Green)
2. Electronic control unit (Red - Yellow)
LAMBDA PROBE CONNECTOR
1. Power heater from solenoid (Black - Green)
2. Heater negative from control unit (Light blue-
Red)
3. Control unit positive (Green-Blue)
4. Negative from control unit (Light blue-Black)
VOLTAGE REGULATOR CONNECTOR
1. Battery positive (Red-Black)
2. Ground lead (Black)
H.V. COIL CONNECTOR
1. Power from relay (Black - Green)
2. Electronic control unit (Pink - Black)
Electrical system Vespa LX - S 125 3V ie 150 3V ie (2012)
ELE SYS - 100
