Vespa LX 2012 User Manual

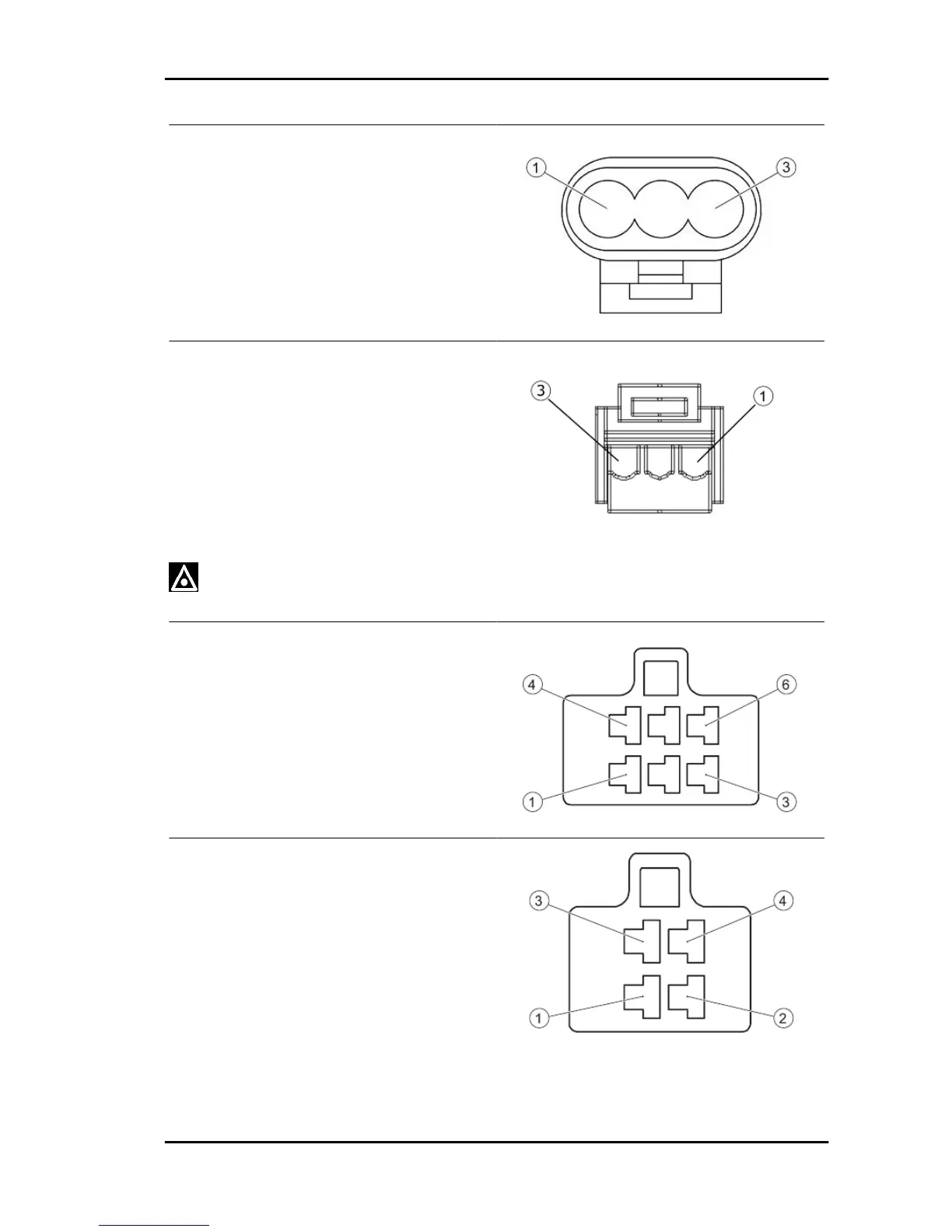

IMMOBILIZER ANTENNA CONNECTOR
1. Ignition switched live (Orange-Blue)
2. Ground lead (Black)
3. Electronic control unit (Orange-White)
FUEL LEVEL TRANSMITTER CONNECTOR
1. Fuel level indicator (White - Green)
2. Ground lead (Black)
3.Low fuel warning light (Yellow-Green)
THE FOLLOWING INDICACTIONS REFER TO THE LX VERSION.
INSTRUMENT PANEL CONNECTOR «A»
1. Live supply (White)
2. Fuel level indicator (White-Green)
3. Ground lead (Black)
4. Instrument panel lighting (Yellow-Black)
5. Right indicator warning light (White-Blue)
6. Left indicator warning light (Pink)
INSTRUMENT PANEL CONNECTOR «B»
1. Low fuel warning light (Yellow-Green)
2. Oil pressure warning light (White-Pink)
3. High beam warning light (Purple)
4. Injection warning light (Brown-White)
Vespa LX - S 125 3V ie 150 3V ie (2012) Electrical system
ELE SYS - 101

Vespa LX 2012 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Transmission	Automatic CVT
Fuel Tank Capacity	8.6 liters
Seat Height	785 mm
Curb Weight	114 kg
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Max Power	10.3 hp @ 7, 750 rpm
Front Suspension	Single arm with coil spring and hydraulic shock absorber
Front Brake	200 mm
Rear Suspension	Coil spring and hydraulic shock absorber
Rear Brake	110 mm drum
