Vespa LX 2012 User Manual

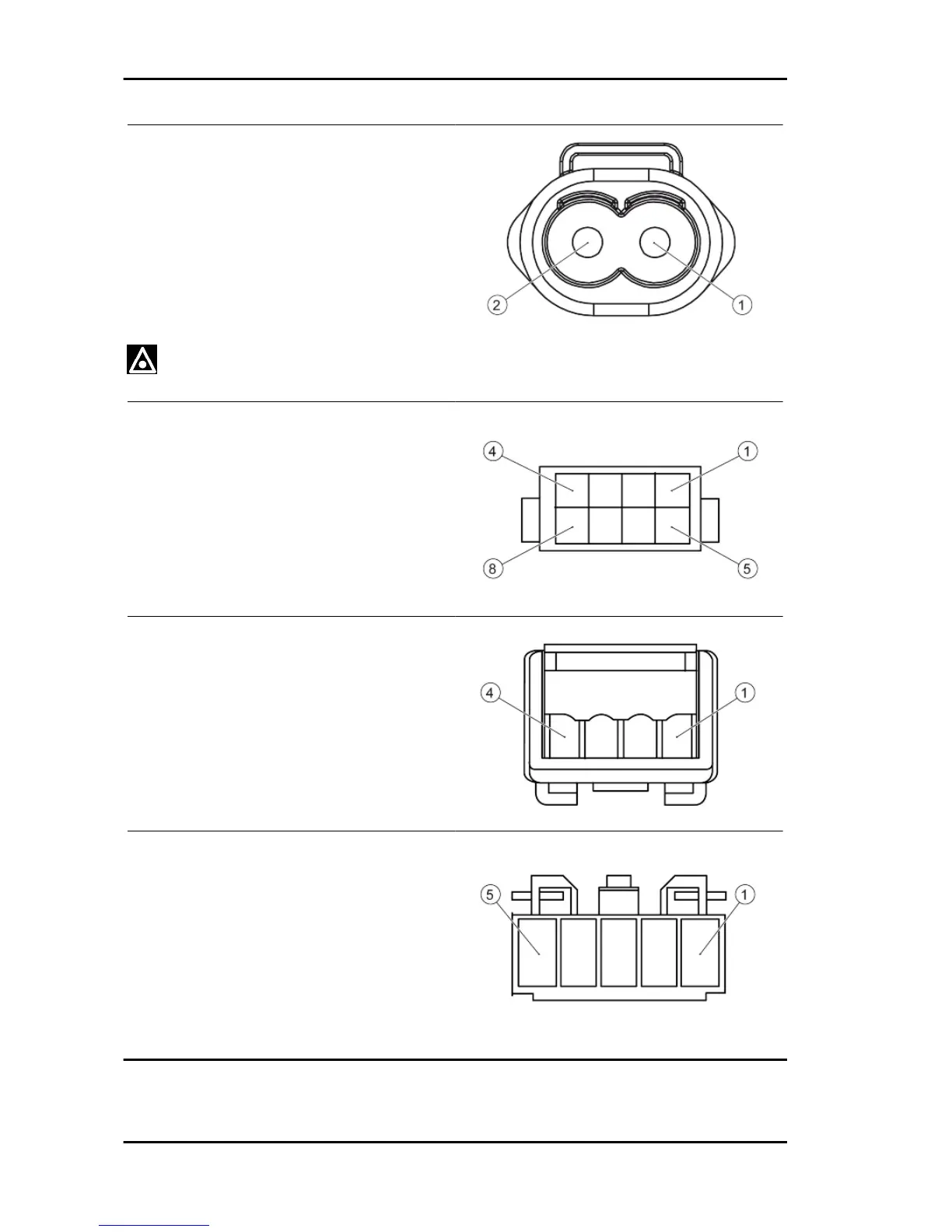

INSTRUMENT PANEL CONNECTOR «C»
1. Immobilizer warning light (Yellow)
2. Battery power (Red-White)
THE FOLLOWING INDICACTIONS REFER TO THE S VERSION.
INSTRUMENT PANEL CONNECTOR «A»
1. Right indicator warning light (White-Blue)
2. Left indicator warning light (Pink)
3. Instrument panel lighting (Yellow-Black)
4. Ground lead (Black)
INSTRUMENT PANEL CONNECTOR «B»
1. Injection warning light (Brown-White)
2. Live supply (White)
3. Battery power (Red-White)
4. Immobilizer warning light (Yellow)
INSTRUMENT PANEL CONNECTOR «C»
1. Battery-powered (White)
2. Low fuel warning light (Yellow-Green)
3. Oil pressure warning light (White-Pink)
4. Fuel level indicator (White-Green)
5. High beam warning lights (Purple)
Diagnostic instrument
STARTER COMMAND
Electrical system Vespa LX - S 125 3V ie 150 3V ie (2012)
ELE SYS - 102

Vespa LX 2012 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Transmission	Automatic CVT
Fuel Tank Capacity	8.6 liters
Seat Height	785 mm
Curb Weight	114 kg
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Max Power	10.3 hp @ 7, 750 rpm
Front Suspension	Single arm with coil spring and hydraulic shock absorber
Front Brake	200 mm
Rear Suspension	Coil spring and hydraulic shock absorber
Rear Brake	110 mm drum
