Vespa LX 2012 User Manual

001467Y008 Pliers to extract 17 mm ø bearings
001467Y009 Bell for OD 42-mm bearings

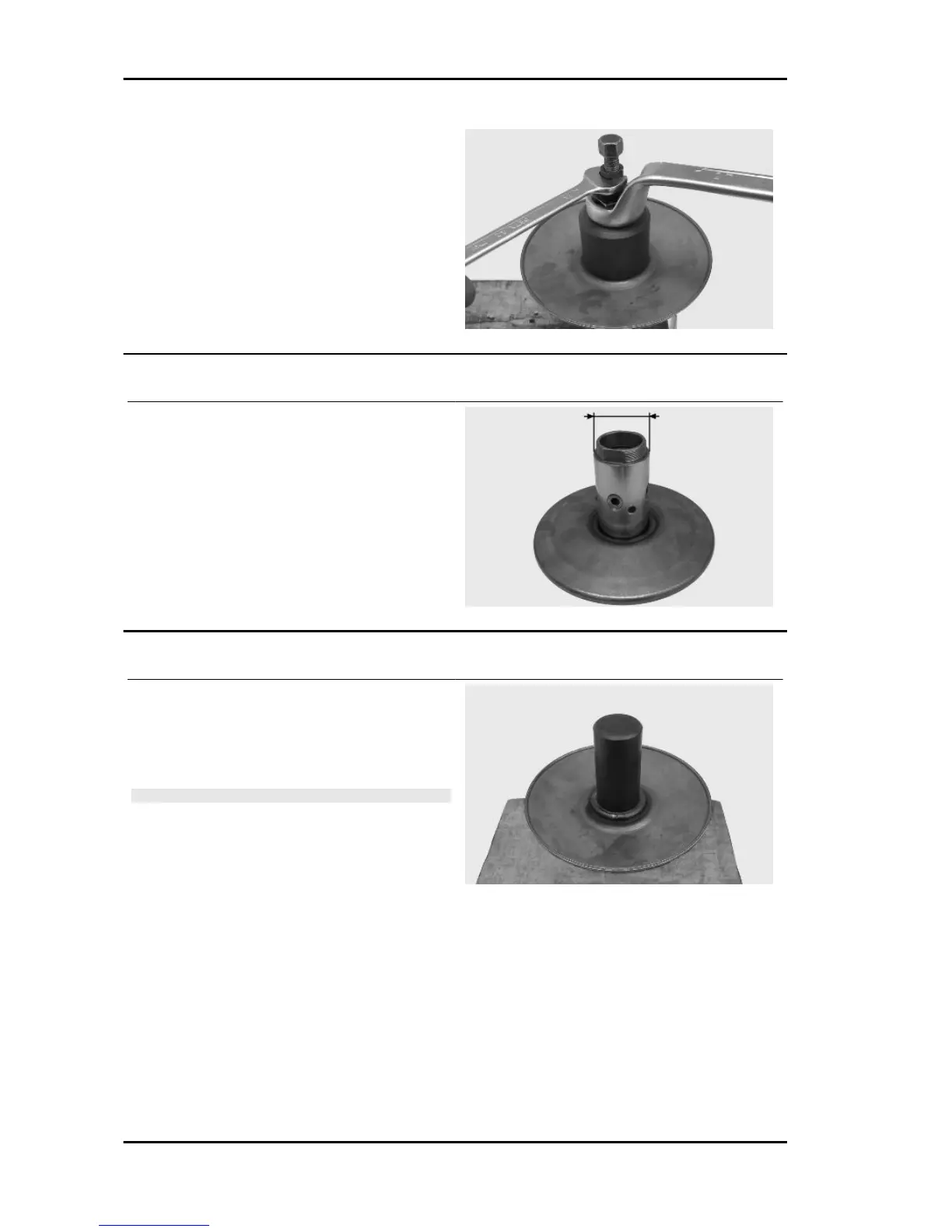

Inspecting the driven fixed half-pulley
- Measure the outside diameter of the pulley bush-
ing.
Characteristic
Standard diameter:
Ø 40.1 ± 0.05 mm
Refitting the driven half-pulley bearing
- Assemble a new roller bearing using the specific
punch, fit the bearing with the label facing outward
and insert it completely up to the punch on the half-
pulley.
N.B.
REST THE HALF-PULLEY ON A WOOD SURFACE TO
AVOID DAMAGING THE THREADED RINGLET OF THE
DRIVEN PULLEY UPON REMOVING IT.
Specific tooling
020424Y Driven pulley roller casing fitting
punch
Engine Vespa LX - S 125 3V ie 150 3V ie (2012)
ENG - 122
