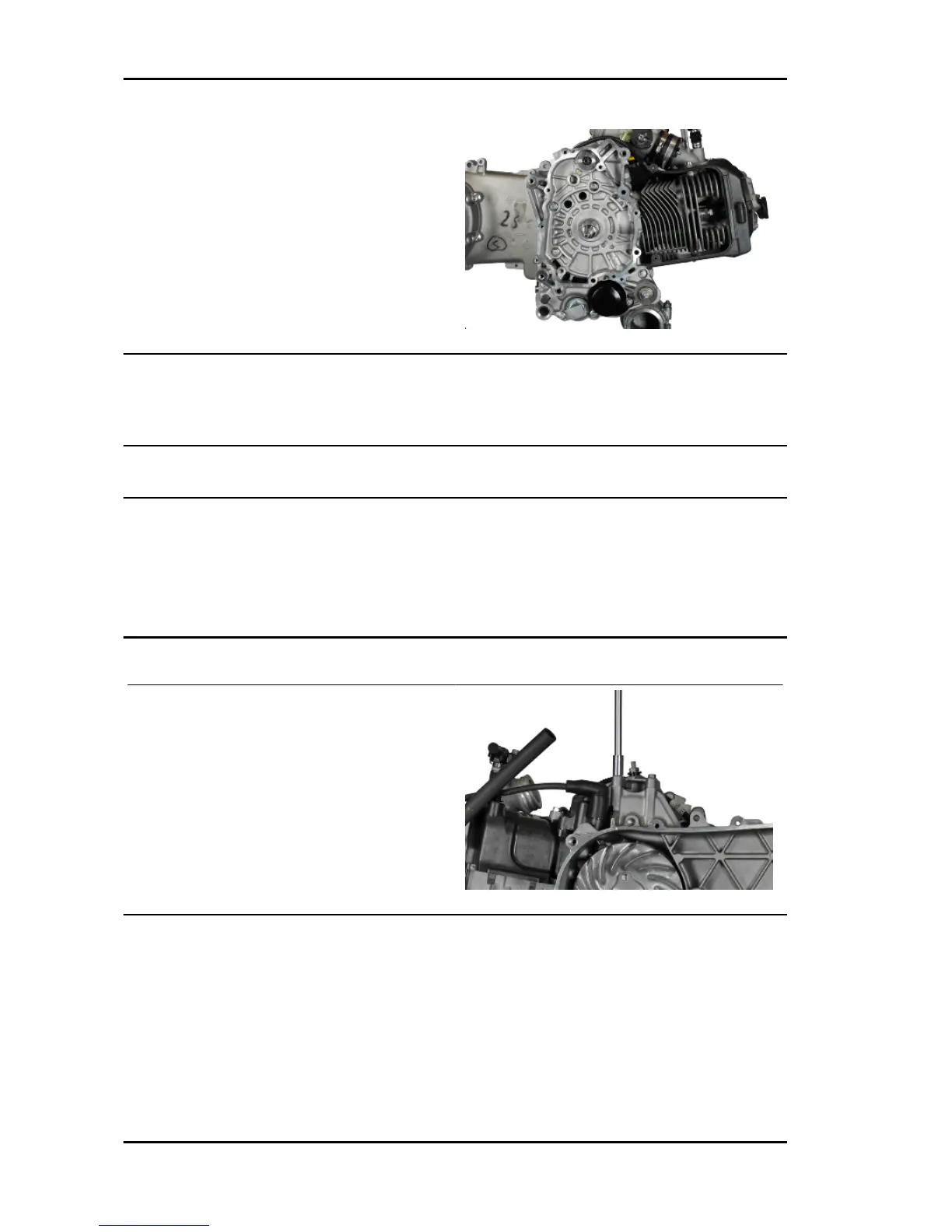

Inspecting the flywheel components
- Check the integrity of the internal plastic parts of the flywheel and the Pickup control plate.
- Check the integrity of the internal plastic parts of the flywheel and the Pickup control plate.
Refitting the flywheel magneto
- Perform the procedure in reverse order of disassembly, taking care to tighten to specified torque.
Locking torques (N*m)
Flywheel fixing nut 100 to 110
Refitting the starter motor
- Fit a new O-ring on the starter motor and lubricate
it.
- Fit the starter motor on the crankcase and lock
the two screws to the prescribed torque.
Locking torques (N*m)
Starter motor screws 10.8 to 12.8
Engine Vespa LX - S 125 3V ie 150 3V ie (2012)
ENG - 140

Vespa LX 2012 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Transmission	Automatic CVT
Fuel Tank Capacity	8.6 liters
Seat Height	785 mm
Curb Weight	114 kg
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Max Power	10.3 hp @ 7, 750 rpm
Front Suspension	Single arm with coil spring and hydraulic shock absorber
Front Brake	200 mm
Rear Suspension	Coil spring and hydraulic shock absorber
Rear Brake	110 mm drum
