Vespa LX 2012 User Manual

- By means of the table, see the Specifications chapter identify the cylinder base gasket thickness to
be used for refitting. Correctly identify the cylinder base gasket thickness to keep the correct compres-
sion ratio.
- Remove the special tool and the cylinder.
See also
Slot packing system

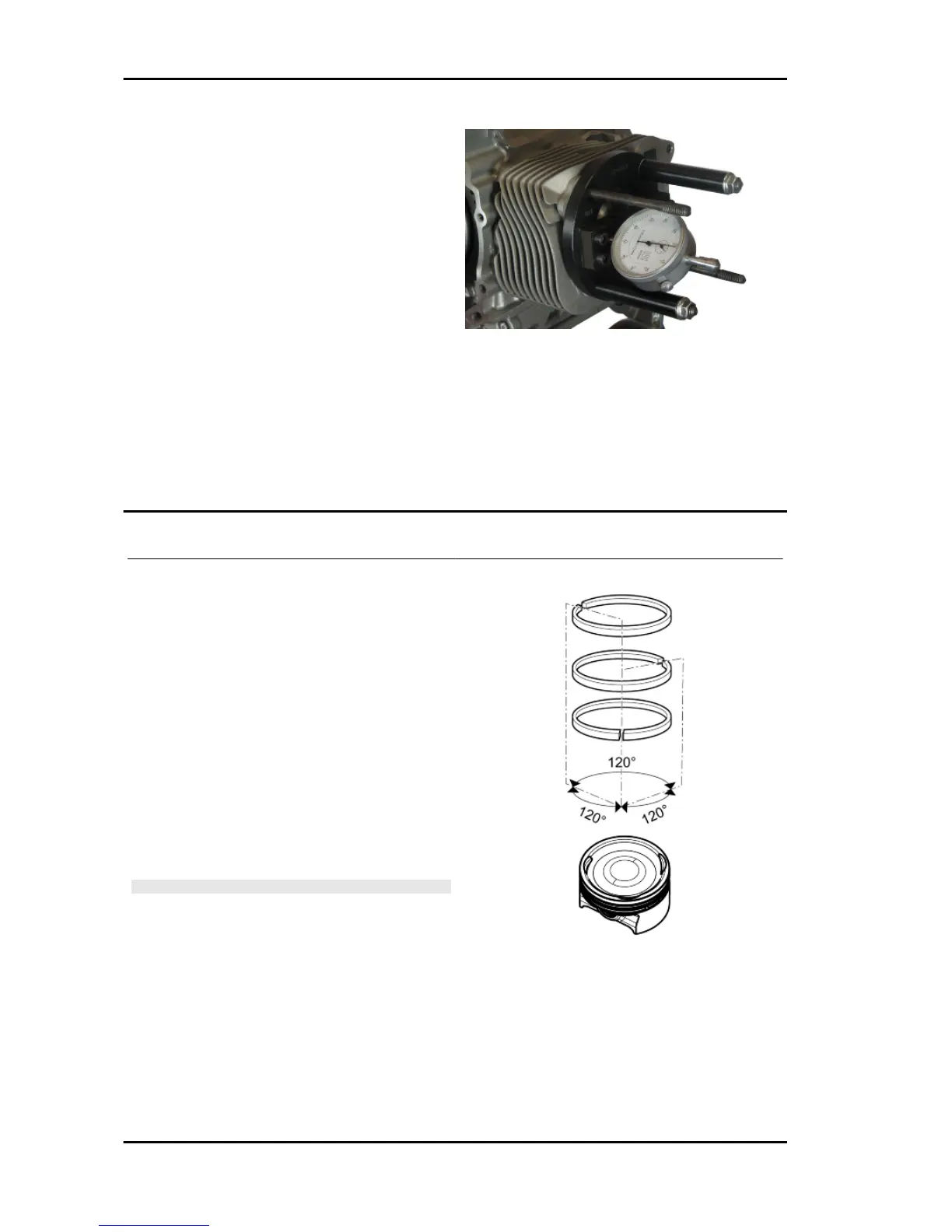

Refitting the piston rings
- Pistons (like cylinders) are supplied in 4 catego-
ries: A, B, C and D, and must be fitted so that the
reference arrow faces the exhaust duct. The letter
is found at the centre of the piston.
- Fit the sealing rings with the word TOP or the
identification letter facing upwards. In any case,
the step must be facing opposite the piston crown.
- Sealing rings are manufactured with a cylinder
contact conical cross-section and piston gaps
must be offset by 120° in order to obtain a better
bedding.
- Lubricate rings with engine oil when fitting them.
CAUTION
AT EVERY NEW MOUNTING USE RETAINER RING PINS.
Engine Vespa LX - S 125 3V ie 150 3V ie (2012)
ENG - 154

Vespa LX 2012 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Transmission	Automatic CVT
Fuel Tank Capacity	8.6 liters
Seat Height	785 mm
Curb Weight	114 kg
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Max Power	10.3 hp @ 7, 750 rpm
Front Suspension	Single arm with coil spring and hydraulic shock absorber
Front Brake	200 mm
Rear Suspension	Coil spring and hydraulic shock absorber
Rear Brake	110 mm drum
