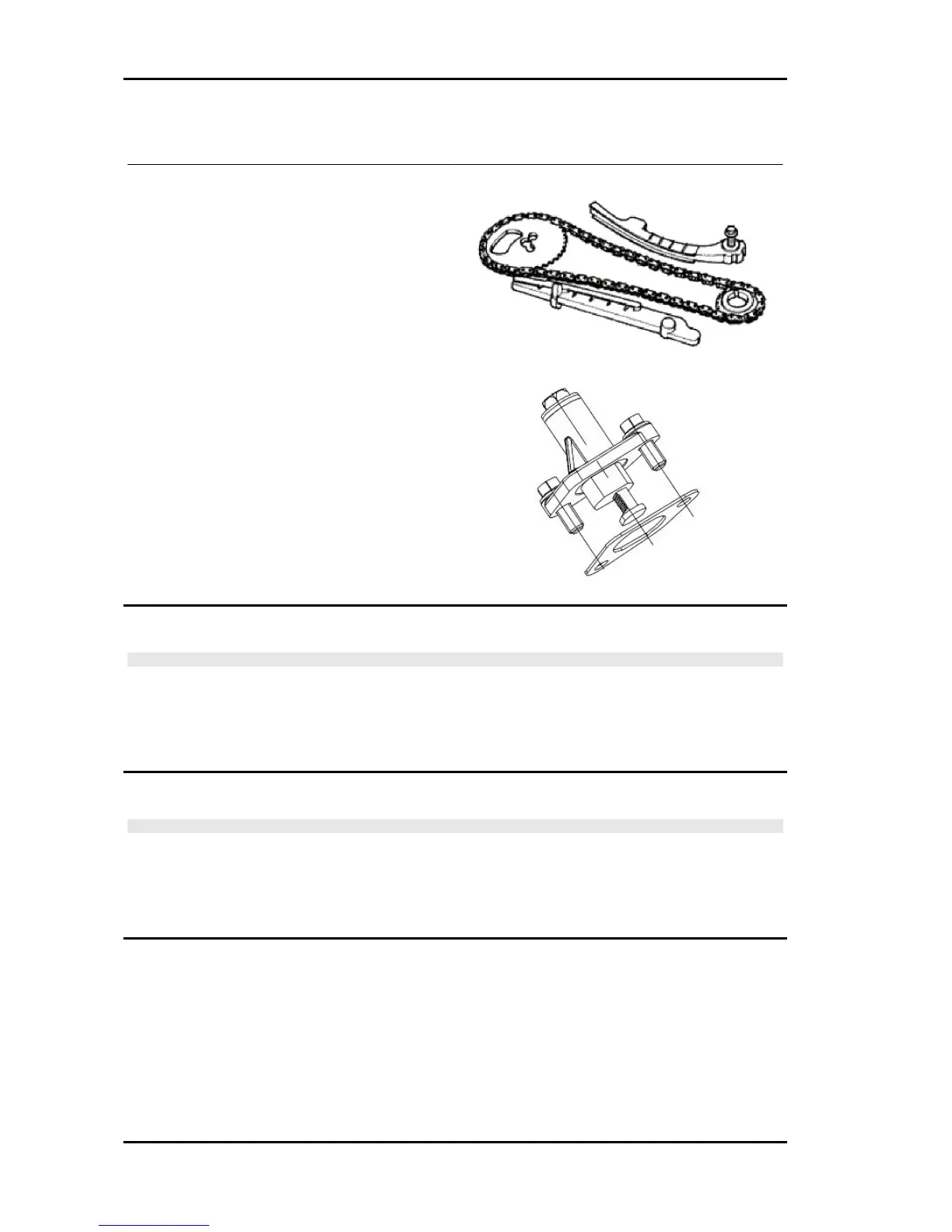

Inspecting the timing system components
- Check that the guide slider and the tensioner
slider are not worn out.
- Ensure that the camshaft control pulley chain as-
sembly and the sprocket wheel are not worn.
- If you detect wear, replace the parts or, if the
chain, sprocket wheel and pulley are worn, replace
the whole unit.
- Remove the centre screw with the washer and
the tensioner spring. Check that the one-way
mechanism is not worn.
- Check the condition of the tensioner spring.
- If examples of wear are found, replace the whole
unit.
Inspecting the valve sealings
N.B.
TO MEASURE WEAR LIMITS AND COUPLING CLEARANCES, SEE THE SPECIFICATIONS CHAP-
TER.
See also
Cylinder Head
Inspecting the valves
N.B.
TO MEASURE WEAR LIMITS AND COUPLING CLEARANCES, SEE THE SPECIFICATIONS CHAP-
TER.
See also
Cylinder Head
Engine Vespa LX - S 125 3V ie 150 3V ie (2012)
ENG - 156

Vespa LX 2012 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Transmission	Automatic CVT
Fuel Tank Capacity	8.6 liters
Seat Height	785 mm
Curb Weight	114 kg
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Max Power	10.3 hp @ 7, 750 rpm
Front Suspension	Single arm with coil spring and hydraulic shock absorber
Front Brake	200 mm
Rear Suspension	Coil spring and hydraulic shock absorber
Rear Brake	110 mm drum
