Vespa LX 2012 User Manual

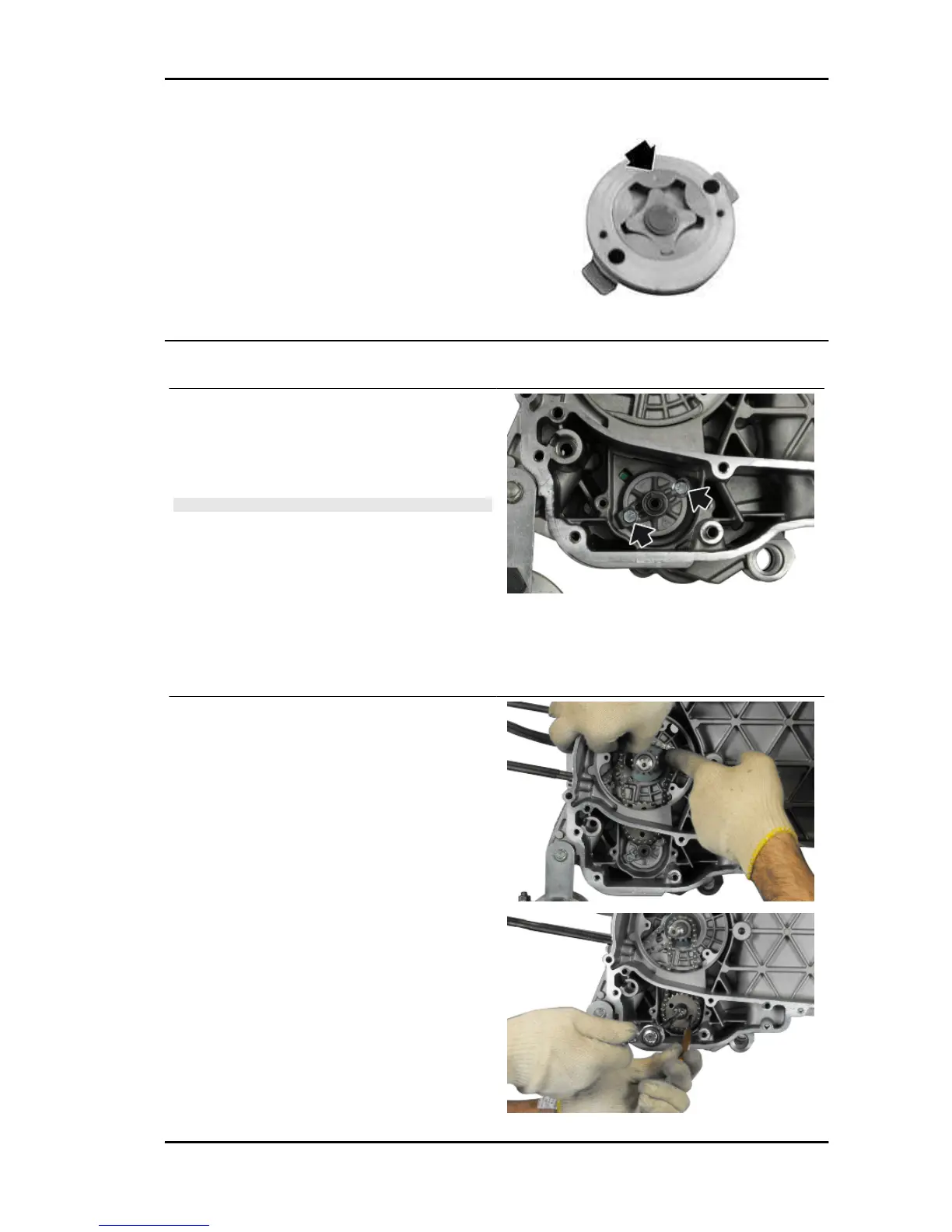

Refitting
- Follow the steps in reverse order to the removal,
tightening the screws to the specified torque.
- Insert the oil pump.
- Insert the control sprocket and the chain.
N.B.
FIT THE CUP WASHER SO THAT ITS OUTER RIM TOUCH-
ES THE PULLEY. MAKE SURE THAT THE PUMP TURNS
FREELY.
Recommended products
Loctite 243 Medium-strength threadlock
Medium Loctite 243 threadlock
Locking torques (N*m)
Screws fixing oil pump to the crankcase 5 to 6
- Preventing rotation, tighten the water pump com-
mand screw complete with washer.
Vespa LX - S 125 3V ie 150 3V ie (2012) Engine
ENG - 171
