Vespa LX 2012 User Manual

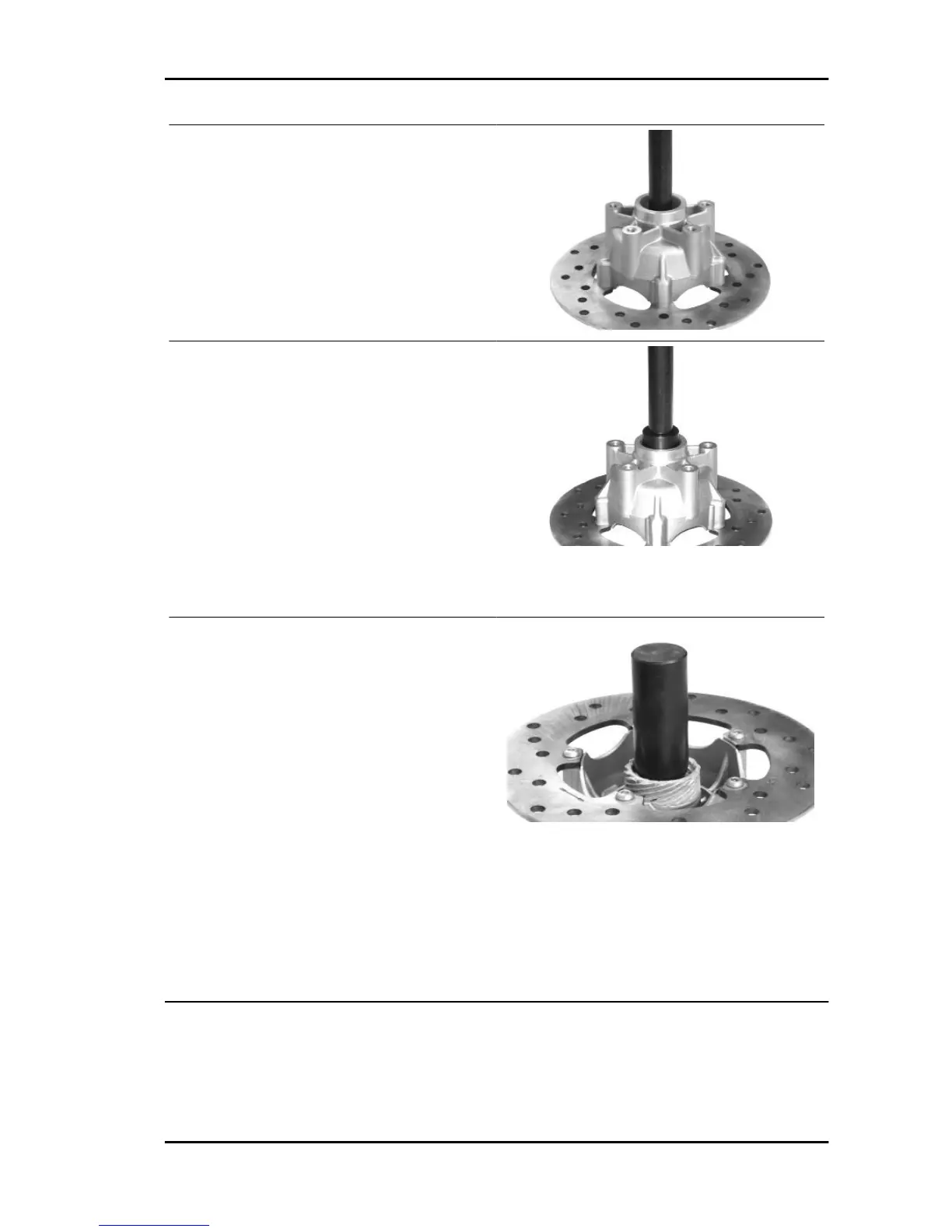

- Remove the roller bearing using the specific tool
Specific tooling
020376Y Adaptor handle
020456Y Ø 24 mm adaptor
020363Y 20-mm guide
- Heat the roller bearing seat with a heat gun
- Use the specific tool to introduce and push the
bearing until it stops, with the shielded side facing
out
- Refit the ball bearing check Seeger ring
Specific tooling
020151Y Air heater
020376Y Adaptor handle
020357Y 32 x 35-mm Adaptor
020412Y 15-mm guide
- Use the specific tool to fit and push the roller cas-
ing until it stops
- Refit the oil seal on the roller bearing side
- Lubricate the area between the roller bearing and
the ball bearing
Specific tooling
020038Y Punch
Recommended products
AGIP GREASE MU3 Yellow-brown, lithium-
base, medium-fibre multipurpose grease.
ISO L-X-BCHA 3 - DIN 51 825 K3K -20
- To refit, follow the removal steps but in reverse order; be careful to tighten to the prescribed torque.
Locking torques (N*m)
Front wheel axle nut 75 to 90
Vespa LX - S 125 3V ie 150 3V ie (2012) Suspensions
SUSP - 209
