Vespa LX 2012 User Manual

Refitting
To refit, carry out the removal operations in reverse order, observing the prescribed tightening torques.
Locking torques (N*m)
shock absorber lower clamping 20 - 27 shock absorber upper clamp 20 to 30
Shock-absorber - calliper bracket

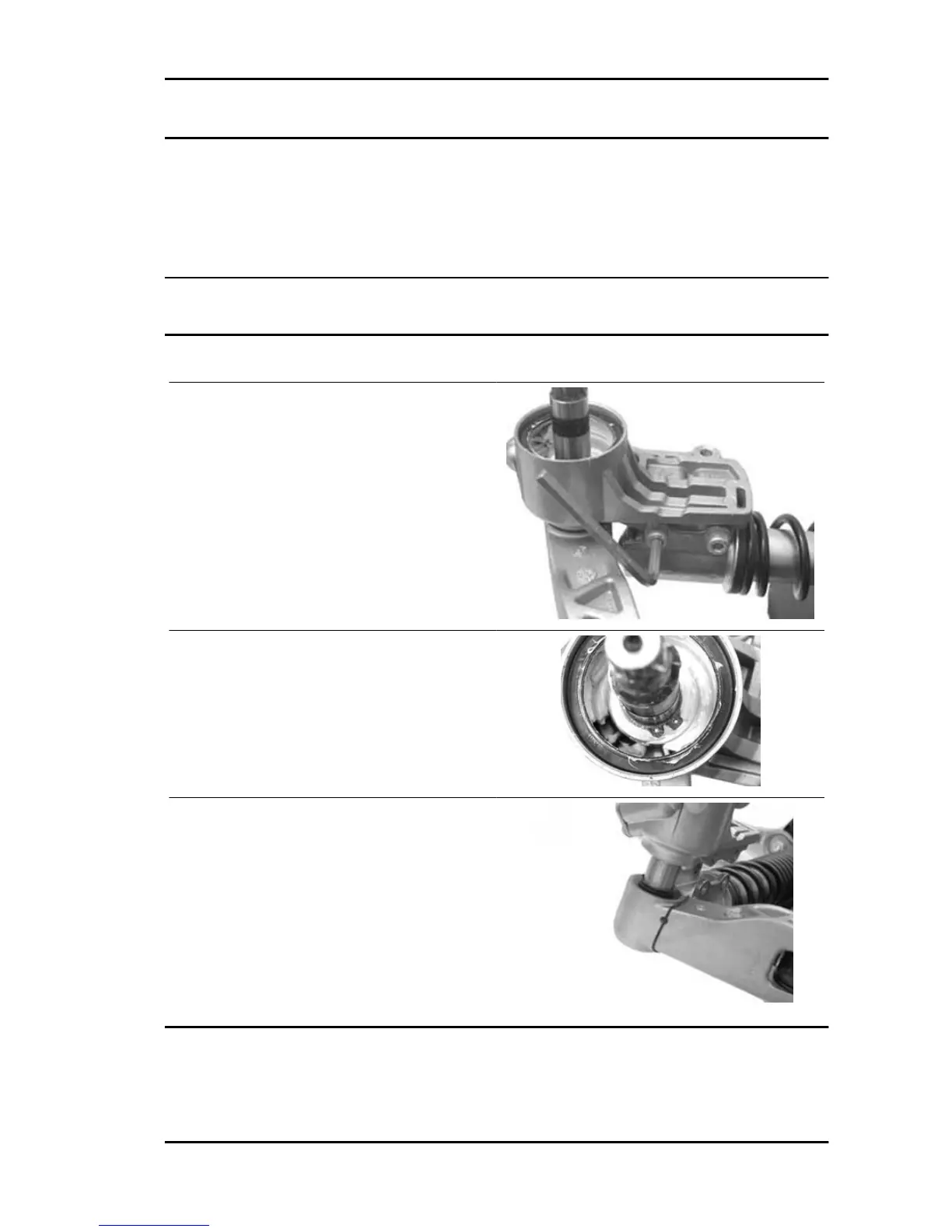

Removal
- Remove the front wheel hub with the brake disc
- Remove the front shock absorber lower clamps
- Remove the bracket locking Seeger ring
- Unscrew the bracket
- Before refitting the bracket in the wheel axle,
place the O-ring as shown in the photograph so
that it is correctly placed after fitting the bracket.
- Refit the washer and the Seeger ring.
- Refit the lower screws fixing the shock absorber
to the bracket and tighten at the prescribed torque
Locking torques (N*m)
Shock absorber lower clamping 20 to 27
Vespa LX - S 125 3V ie 150 3V ie (2012) Suspensions
SUSP - 217

Vespa LX 2012 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Transmission	Automatic CVT
Fuel Tank Capacity	8.6 liters
Seat Height	785 mm
Curb Weight	114 kg
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Max Power	10.3 hp @ 7, 750 rpm
Front Suspension	Single arm with coil spring and hydraulic shock absorber
Front Brake	200 mm
Rear Suspension	Coil spring and hydraulic shock absorber
Rear Brake	110 mm drum
