Vespa LX 2012 User Manual

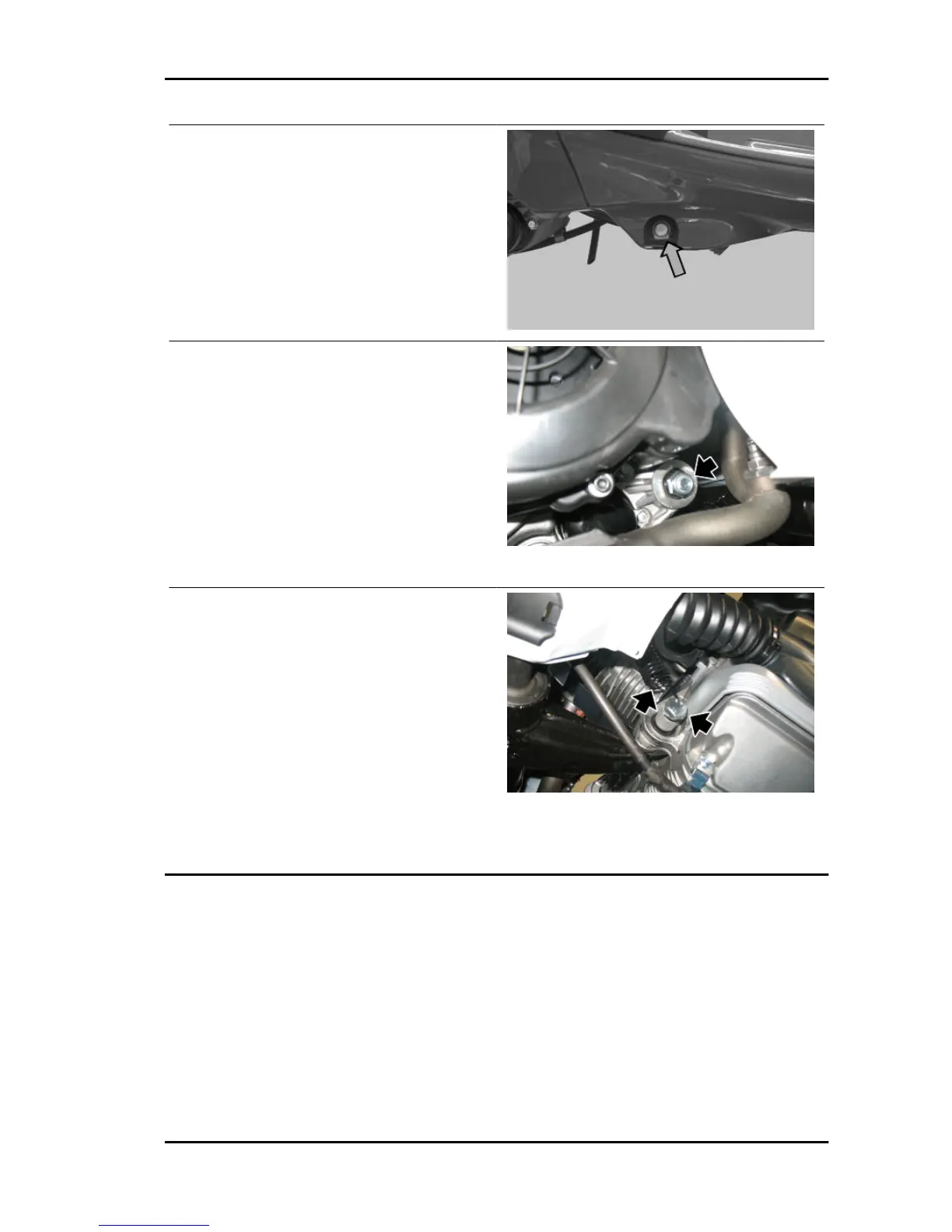

- Working on the left side, remove the pin.
- Remove the spoiler terminal from both sides.
- Working on the right side, unscrew the fixing nut.
- Working on the left side, release the pin from the spring shown.
- Remove the fixing pin to the engine and collect
the spacer.
- Now the swinging arm is free.
- Remove the swinging arm from the vehicle; first release it from the engine side and then from the
chassis side.
Vespa LX - S 125 3V ie 150 3V ie (2012) Suspensions
SUSP - 223

Vespa LX 2012 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Transmission	Automatic CVT
Fuel Tank Capacity	8.6 liters
Seat Height	785 mm
Curb Weight	114 kg
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Max Power	10.3 hp @ 7, 750 rpm
Front Suspension	Single arm with coil spring and hydraulic shock absorber
Front Brake	200 mm
Rear Suspension	Coil spring and hydraulic shock absorber
Rear Brake	110 mm drum
