Vespa LX 2012 User Manual

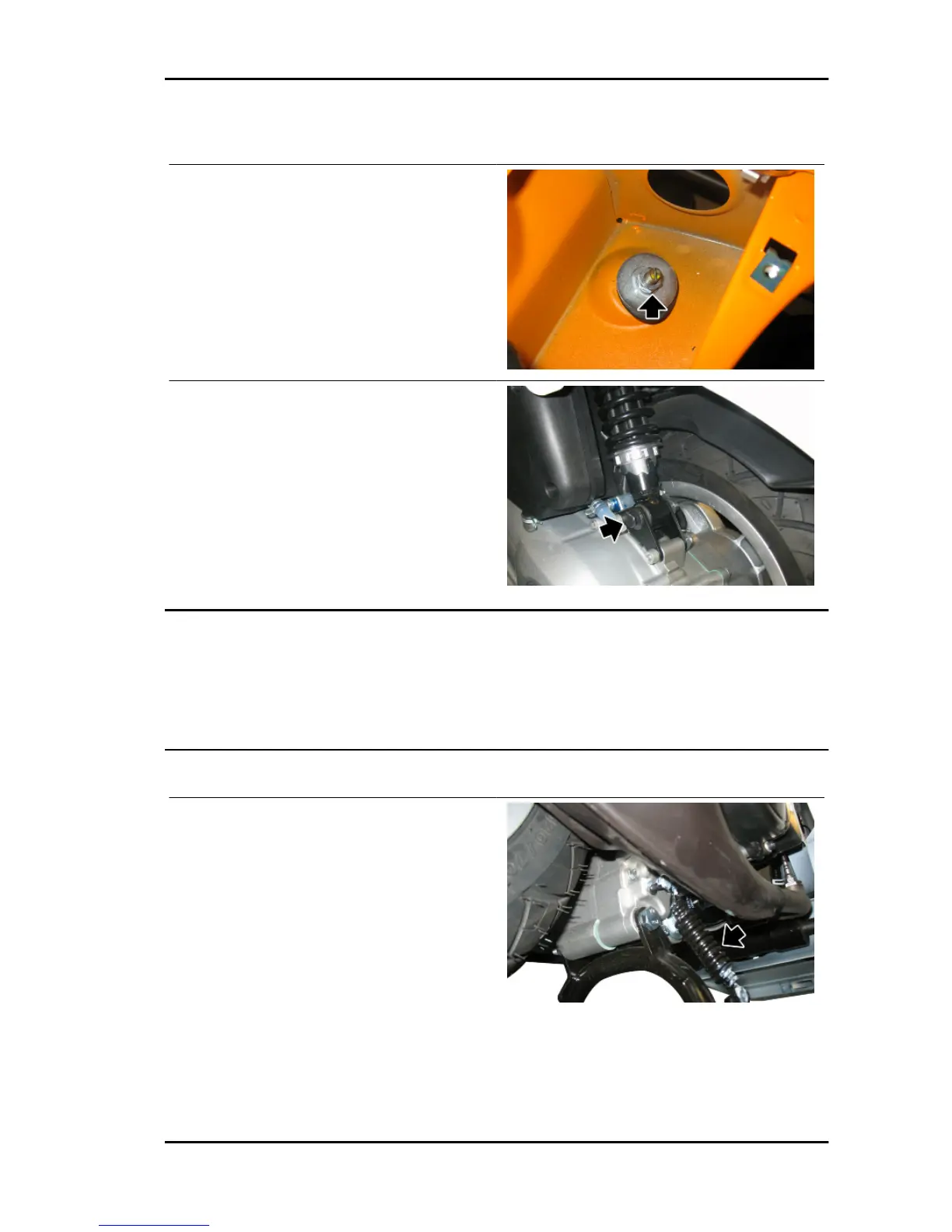

Removal
- Adequately support the rear part of the vehicle.
- Remove the battery.
- Undo the indicated upper fixing screw to the
chassis.
- Unscrew the lower fixing pin to the transmission
crankcase.
Refitting
- To fit, follow the removal steps but in reverse order; be careful to tighten to the prescribed torques.
Locking torques (N*m)
Shock absorber/chassis nut torque 20 - 25 Nm Lower shock absorber clamp 40 to 45
Centre-stand
REMOVAL
- Use a jack to support the vehicle properly.
- Remove the two return springs from the centre
stand.
- Undo the nut shown in the figure.
- Remove the pin from the right side.
- Remove the centre stand.
FITTING
- On refitting tighten the nut to the specified torque.
Locking torques (N*m)
Centre stand pin 40 to 45
Vespa LX - S 125 3V ie 150 3V ie (2012) Suspensions
SUSP - 225

Vespa LX 2012 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Transmission	Automatic CVT
Fuel Tank Capacity	8.6 liters
Seat Height	785 mm
Curb Weight	114 kg
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Max Power	10.3 hp @ 7, 750 rpm
Front Suspension	Single arm with coil spring and hydraulic shock absorber
Front Brake	200 mm
Rear Suspension	Coil spring and hydraulic shock absorber
Rear Brake	110 mm drum
