8) Check that the cable harnesses of the bulbs and their ground connection are not interrupted.
level indicators
WARNING
ALL CONTINUITY TESTS MUST BE CARRIED OUT WITH THE CORRESPONDING CONNECTORS
DISCONNECTED.
If faults are detected:
1) With a multimeter, check resistance values be-
tween the White-Green cable and the Black cable
of the fuel level transmitter under different condi-
tions.
2) If the transmitter operates correctly but the in-
dication on the instrument panel is not exact,
check that the cable harnesses between them are
not interrupted.
Electric characteristic
Resistance value when the tank is full
<= 7 Ω
Resistance value when the tank is empty
90 +13/-3 Ω

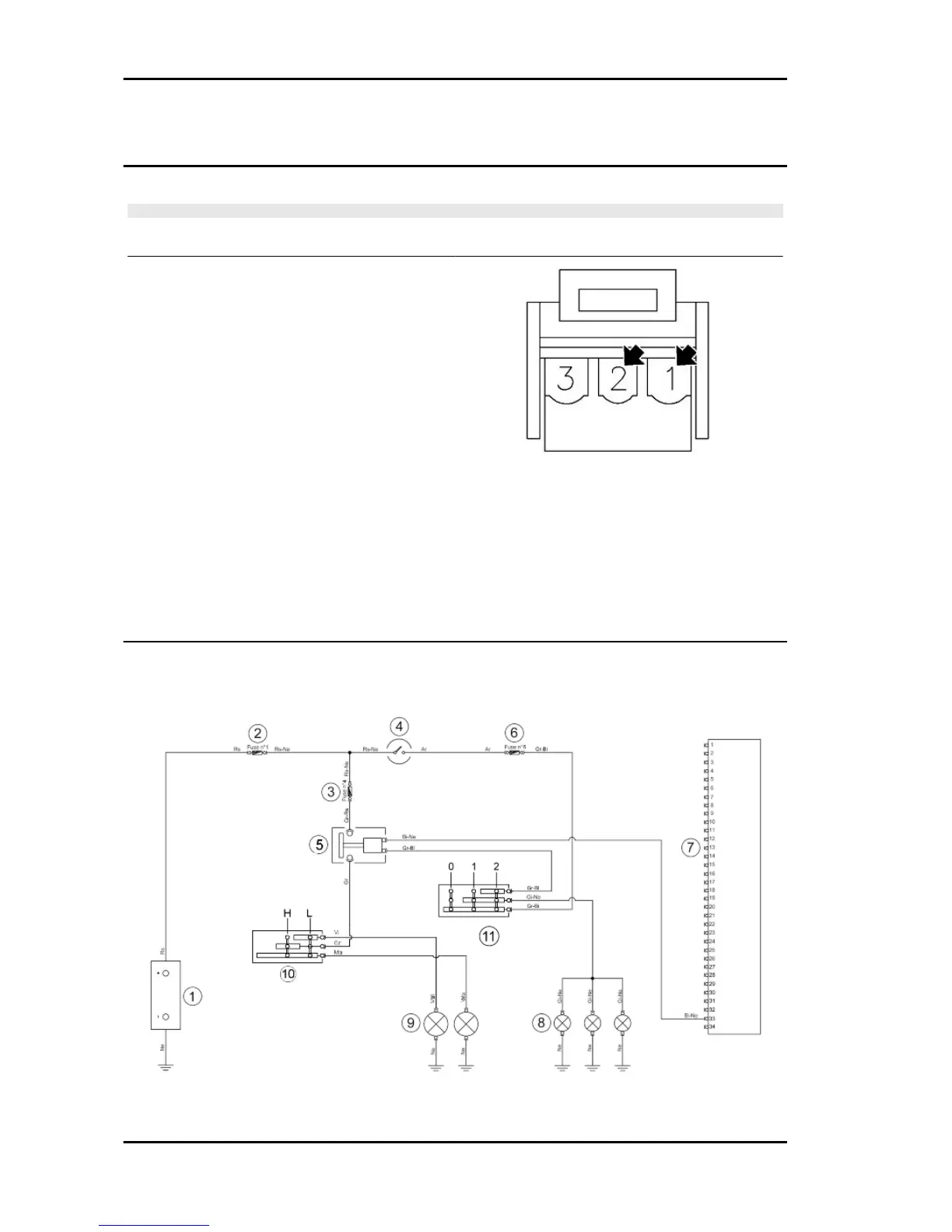

Lights list
Electrical system Vespa LX - S 125 3V ie 150 3V ie (2012)
ELE SYS - 88

Vespa LX 2012 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Transmission	Automatic CVT
Fuel Tank Capacity	8.6 liters
Seat Height	785 mm
Curb Weight	114 kg
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Max Power	10.3 hp @ 7, 750 rpm
Front Suspension	Single arm with coil spring and hydraulic shock absorber
Front Brake	200 mm
Rear Suspension	Coil spring and hydraulic shock absorber
Rear Brake	110 mm drum
