Vespa LX 2012 User Manual

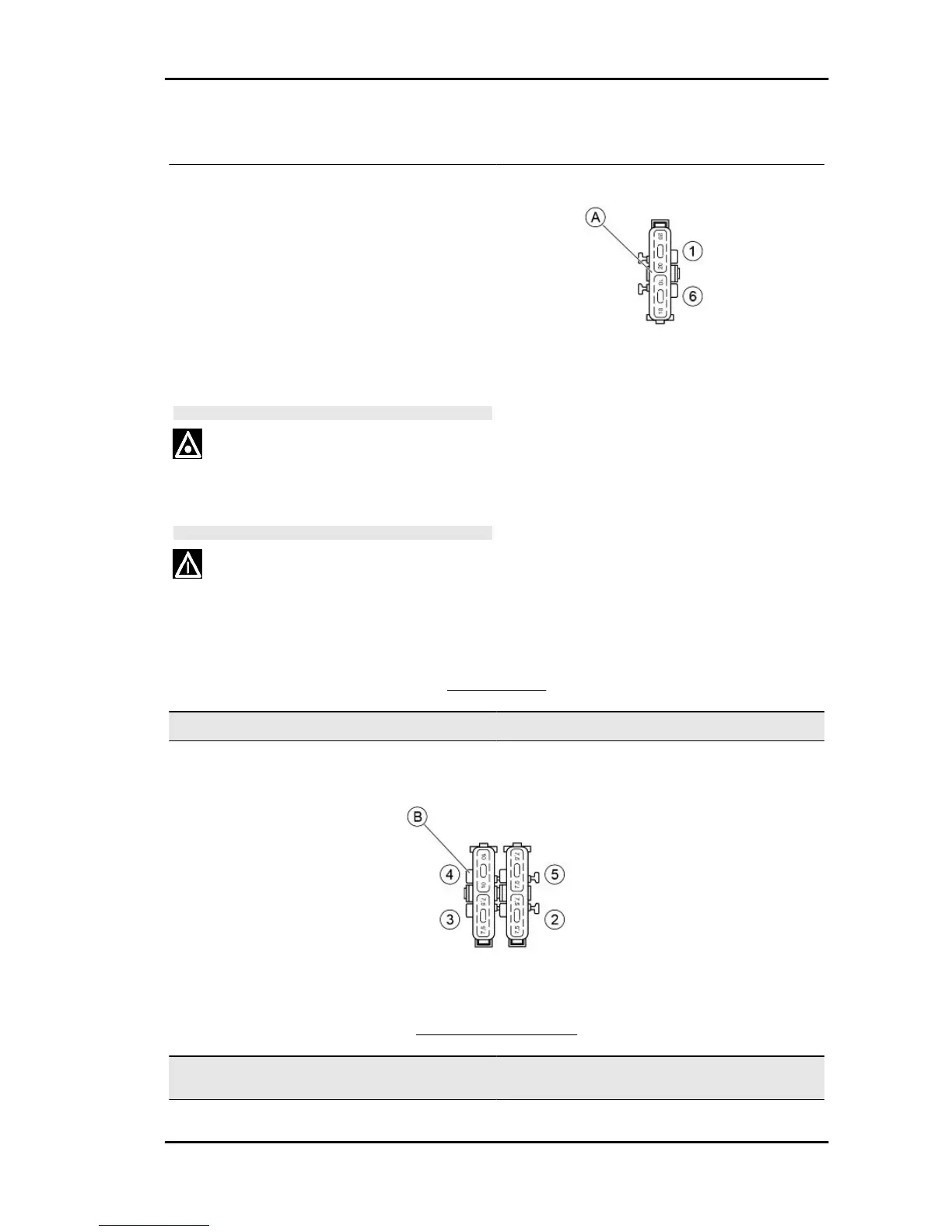

Fuses
The electrical system is protected by main and
secondary fuses:
1. two main fuses inserted in the fuse holder «A»
positioned in the battery compartment.
2. four secondary fuses inserted in the fuse holder
«B» accessible by removing the front cover of the
shield.
The tables show the position and characteristics
of the fuses on the vehicle.
CAUTION
BEFORE REPLACING A BLOWN FUSE, FIND AND SOLVE
THE FAILURE THAT CAUSED IT TO BLOW. NEVER TRY
TO REPLACE THE FUSE WITH ANY OTHER MATERIAL
(E.G., A PIECE OF ELECTRIC WIRE).
CAUTION
MODIFICATIONS OR REPAIRS TO THE ELECTRICAL SYS-
TEM, PERFORMED INCORRECTLY OR WITHOUT STRICT
ATTENTION TO THE TECHNICAL SPECIFICATIONS OF
THE SYSTEM CAN CAUSE MALFUNCTIONING AND RISK
OF FIRE.
MAIN FUSES
Specification
Desc./Quantity
Fuse No. 1 Capacity: 20 A
Protected circuits: General, recharge circuit
Fuse No. 6 Capacity: 10 A
Protected circuits: Injection loads relay, MIU ECU, instrument
panel.
SECONDARY FUSES
Specification
Desc./Quantity
Fuse No. 2 Capacity: 7.5 A
Protected circuits: Injection loads relay, MIU ECU, immobil-
izer aerial.
Fuse No. 3 Capacity: 7.5 A
Vespa LX - S 125 3V ie 150 3V ie (2012) Electrical system
ELE SYS - 91

Vespa LX 2012 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Transmission	Automatic CVT
Fuel Tank Capacity	8.6 liters
Seat Height	785 mm
Curb Weight	114 kg
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Max Power	10.3 hp @ 7, 750 rpm
Front Suspension	Single arm with coil spring and hydraulic shock absorber
Front Brake	200 mm
Rear Suspension	Coil spring and hydraulic shock absorber
Rear Brake	110 mm drum
