Vespa LX 2012 User Manual

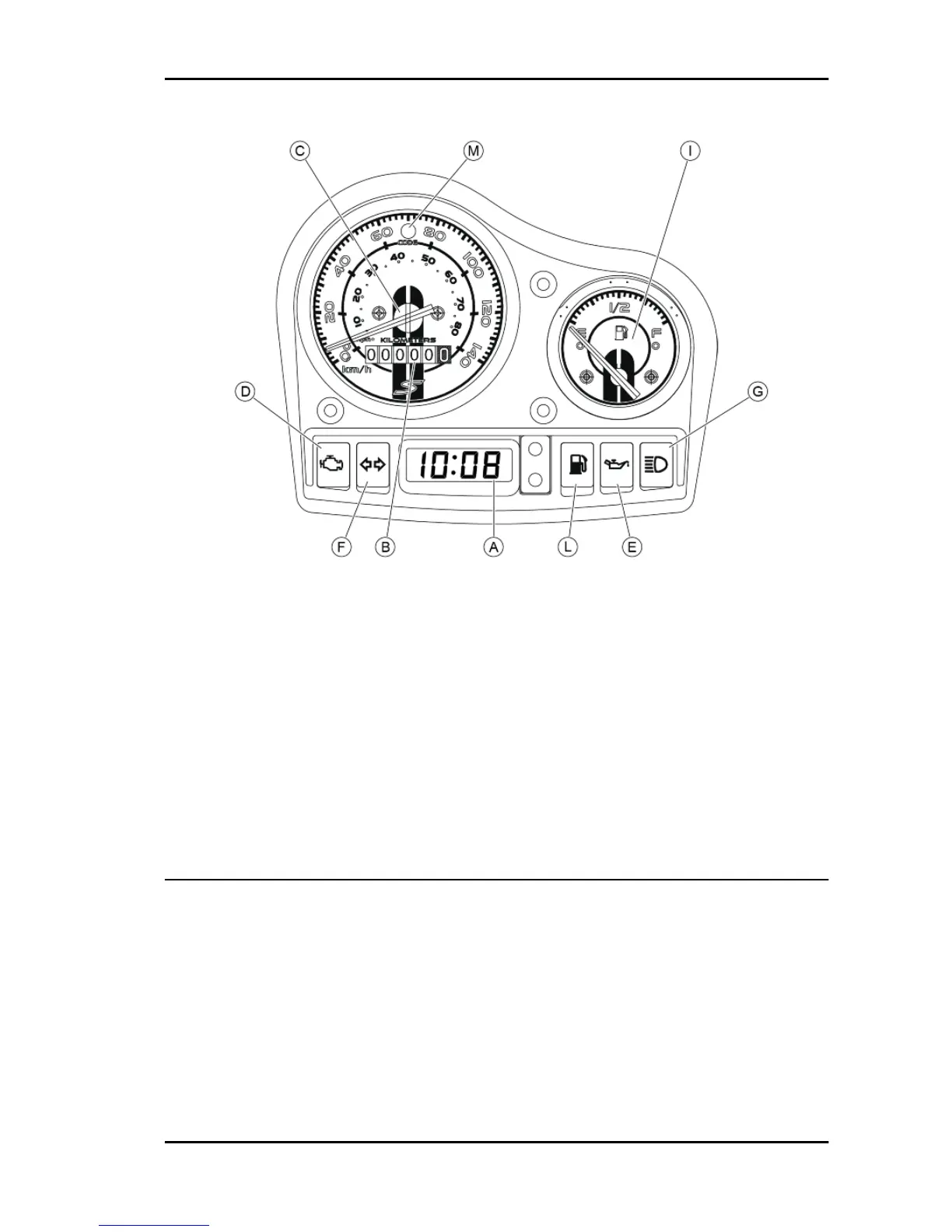

A = Digital clock
B = Odometer
C = Speedometer
D = Engine control telltale light
E = Engine oil pressure warning light
F = Turn indicators
G = High beam warning light
H = Headlight warning light
I = Fuel gauge
L = Low fuel warning light
M = Immobilizer LED
Sealed battery
If the vehicle is provided with a sealed battery, the only maintenance required is the check of its charge
and recharging, if necessary.
These operations should be carried out before delivering the vehicle, and on a six-month basis while
the vehicle is stored in open circuit.
Besides upon pre-delivery it is therefore necessary to check the battery charge and recharge it, if re-
quired, before storing the vehicle and afterwards every six months.
INSTRUCTIONS FOR THE BATTERY REFRESH AFTER OPEN-CIRCUIT STORAGE
1) Voltage check
Vespa LX - S 125 3V ie 150 3V ie (2012) Electrical system
ELE SYS - 93

Vespa LX 2012 Specifications

General

Engine Type	Single-cylinder, 4-stroke
Displacement	124 cc
Cooling System	Air-cooled
Fuel System	Carburetor
Transmission	Automatic CVT
Fuel Tank Capacity	8.6 liters
Seat Height	785 mm
Curb Weight	114 kg
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Max Power	10.3 hp @ 7, 750 rpm
Front Suspension	Single arm with coil spring and hydraulic shock absorber
Front Brake	200 mm
Rear Suspension	Coil spring and hydraulic shock absorber
Rear Brake	110 mm drum
