- Refit the plastic cover.
Specific tooling
020423Y Driven pulley lock wrench
Locking torques (N*m)
Transmission cover screws 11 to 13 Driven pul-
ley shaft nut 54 to 60
End gear

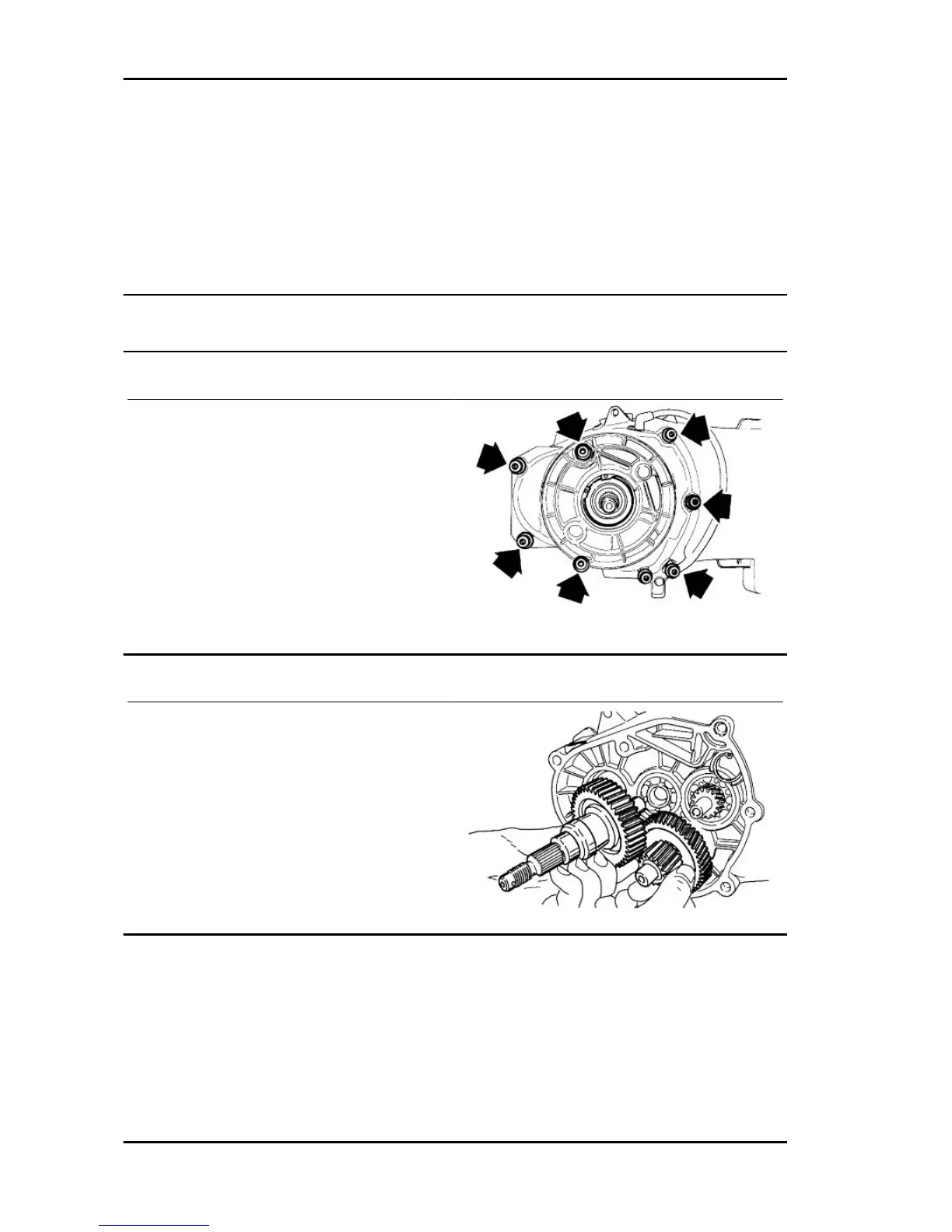

Removing the hub cover
- Empty the rear hub through the oil drainage tap
located inside the hub cover
- Remove the brake shoe and relevant spring
- Remove the 7 flanged screws as shown in the
figure.
- Remove the rubber cover and the brake pad lever
sliding unscrewing the relevant retaining screw to
reach the rear of the cover
- Take off the hub cover and relevant gaskets
Removing the wheel axle
Remove the intermediate gear and the complete
hub cover.
Engine Vespa LX 125 - 150 i.e.
ENG - 104

Vespa LX Series Specifications

General

Displacement	124 cc
Cooling System	Air-cooled
Front Tire	110/70 - 11"
Rear Tire	120/70 - 10"
Seat Height	785 mm
Kerb Weight	114 kg
Wheelbase	1, 280 mm
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Engine Type	Single-cylinder, 4-stroke
Fuel System	Carburetor
Max Torque	10.4 Nm @ 6, 000 rpm
Transmission	Automatic
Front Suspension	Single-sided trailing arm with hydraulic shock absorber
Rear Suspension	Hydraulic shock absorber
Front Brake	200mm disc brake
Rear Brake	110mm drum brake
