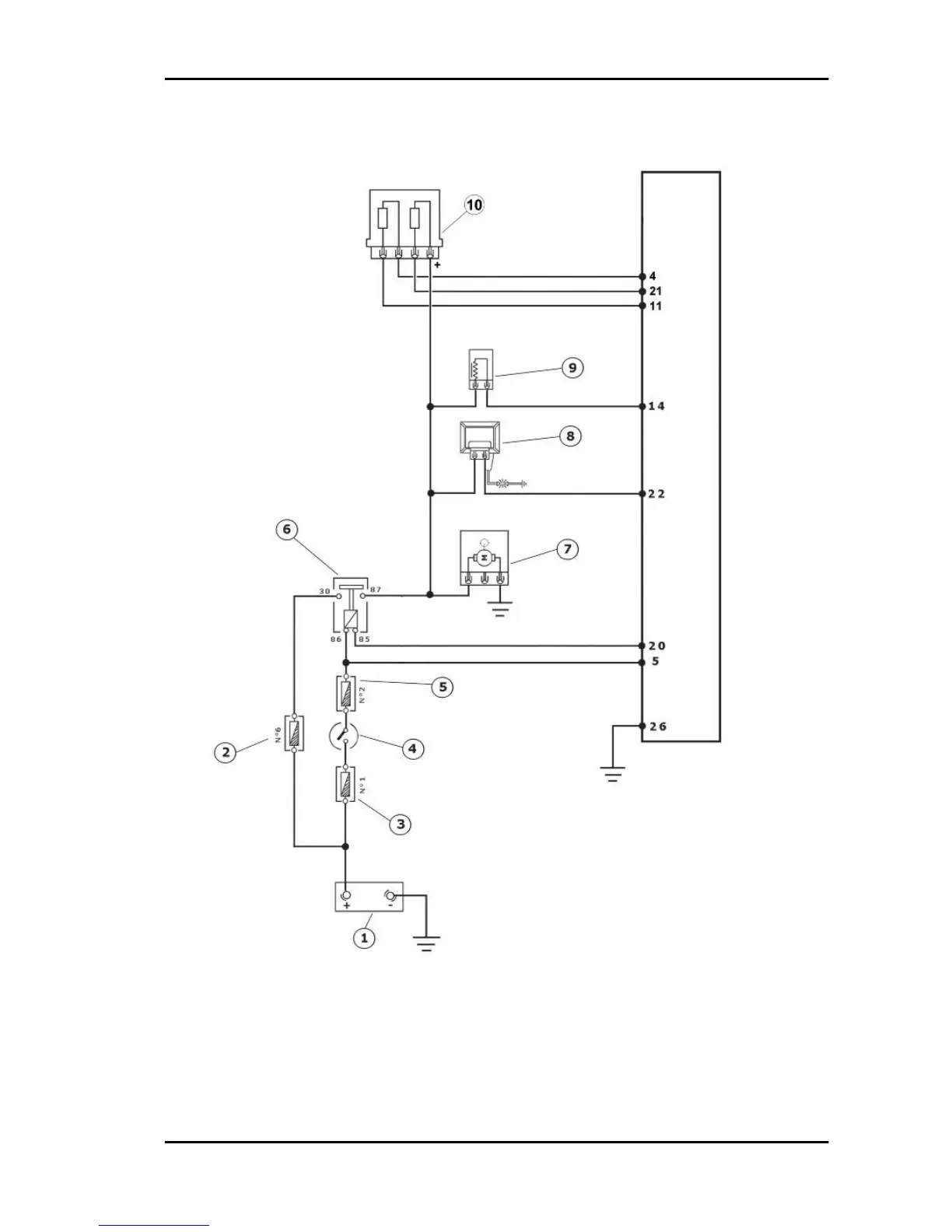

Pump supply circuit
1. 12V - 10Ah Battery
2. Fuse No. 6; 15A
3. Fuse No. 1; 20A
4. Key switch contacts
5. 7.5A fuse No. 2
Vespa LX 125 - 150 i.e. Injection
INJEC - 161
