Vespa LX Series User Manual

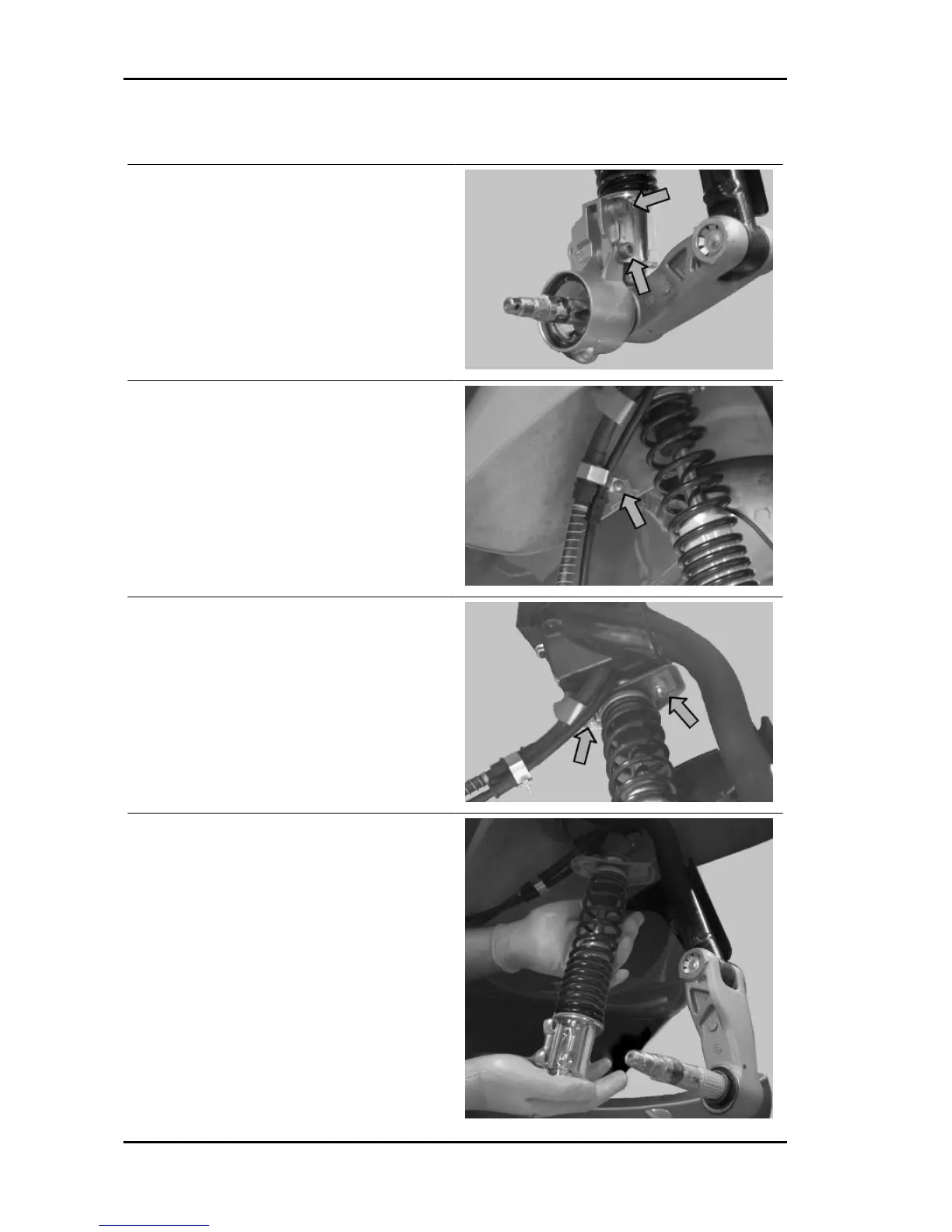

Removal
- Support the vehicle adequately.
- Remove the wheel hub.
- Loosen the shock absorber lower clamps and re-
move the brake calliper shock absorber mounting.
- Loosen the screws fixing the front brake pipe re-
tainer clamp and the odometer cable in order to
reach the upper clamps.
- Unscrew the upper fixing nuts.
- Remove the front shock absorber.
Suspensions Vespa LX 125 - 150 i.e.
SUSP - 194

Vespa LX Series Specifications

General

Displacement	124 cc
Cooling System	Air-cooled
Front Tire	110/70 - 11"
Rear Tire	120/70 - 10"
Seat Height	785 mm
Kerb Weight	114 kg
Wheelbase	1, 280 mm
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Engine Type	Single-cylinder, 4-stroke
Fuel System	Carburetor
Max Torque	10.4 Nm @ 6, 000 rpm
Transmission	Automatic
Front Suspension	Single-sided trailing arm with hydraulic shock absorber
Rear Suspension	Hydraulic shock absorber
Front Brake	200mm disc brake
Rear Brake	110mm drum brake
