Vespa LX Series User Manual

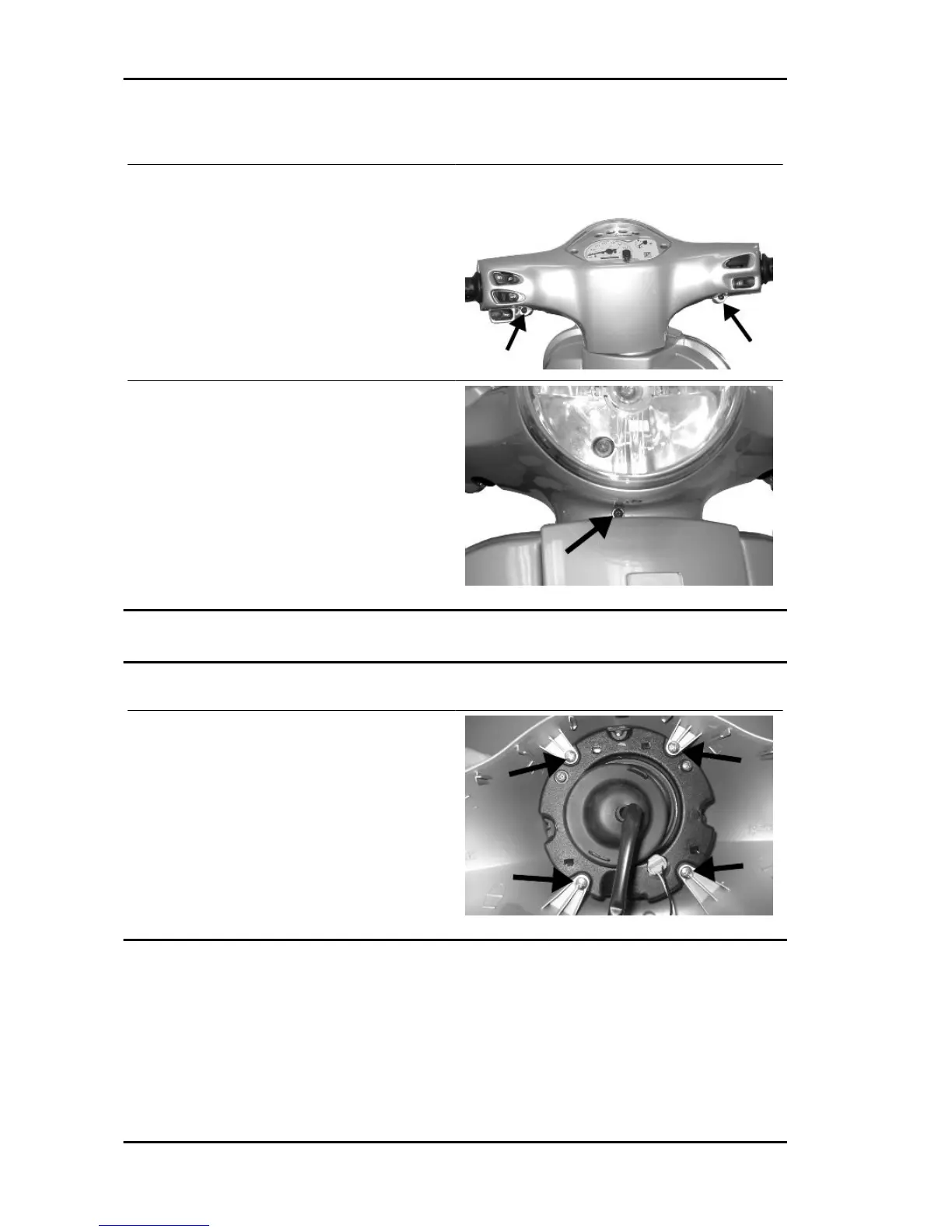

Front handlebar cover
Proceed as follows:
-Remove the rear-view mirrors.
- Undo the two screws indicated.
- Undo the screw under the headlamp.
- Laterally release the handlebar cover end.
- Disconnect the electrical terminals and remove the front handlebar cover.
Headlight assy.
- Remove the front handlebar cover.
- Undo the four screws indicated fixing the front
handlebar cover.
Chassis Vespa LX 125 - 150 i.e.
CHAS - 216

Vespa LX Series Specifications

General

Displacement	124 cc
Cooling System	Air-cooled
Front Tire	110/70 - 11"
Rear Tire	120/70 - 10"
Seat Height	785 mm
Kerb Weight	114 kg
Wheelbase	1, 280 mm
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Engine Type	Single-cylinder, 4-stroke
Fuel System	Carburetor
Max Torque	10.4 Nm @ 6, 000 rpm
Transmission	Automatic
Front Suspension	Single-sided trailing arm with hydraulic shock absorber
Rear Suspension	Hydraulic shock absorber
Front Brake	200mm disc brake
Rear Brake	110mm drum brake
