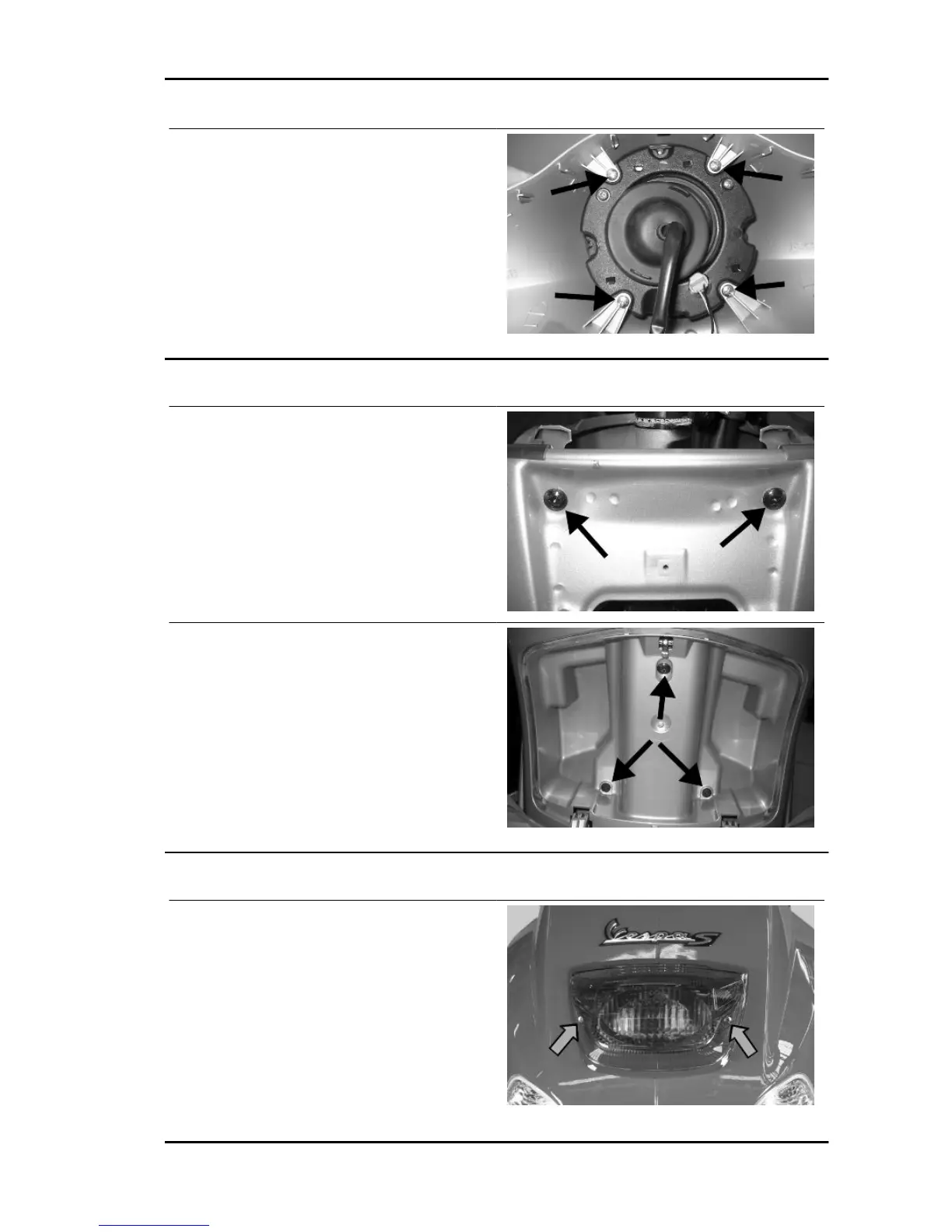

After removing the front handlebar cover, operate
the 4 screws shown in the figure and remove the
headlight.
Knee-guard
- Unscrew the two screws shown in the figure
placed under the front central cover.
- Remove the 3 screws shown in the figure, placed
inside the glove-box; they can be reached opening
the glove-box door.
- Remove the shield back plate by pulling it up-
wards.
Taillight assy.
- Undo the two fixing screws and remove the rear
light unit.
Vespa LX 125 - 150 i.e. Chassis
CHAS - 217
