Vespa LX Series - Page 59

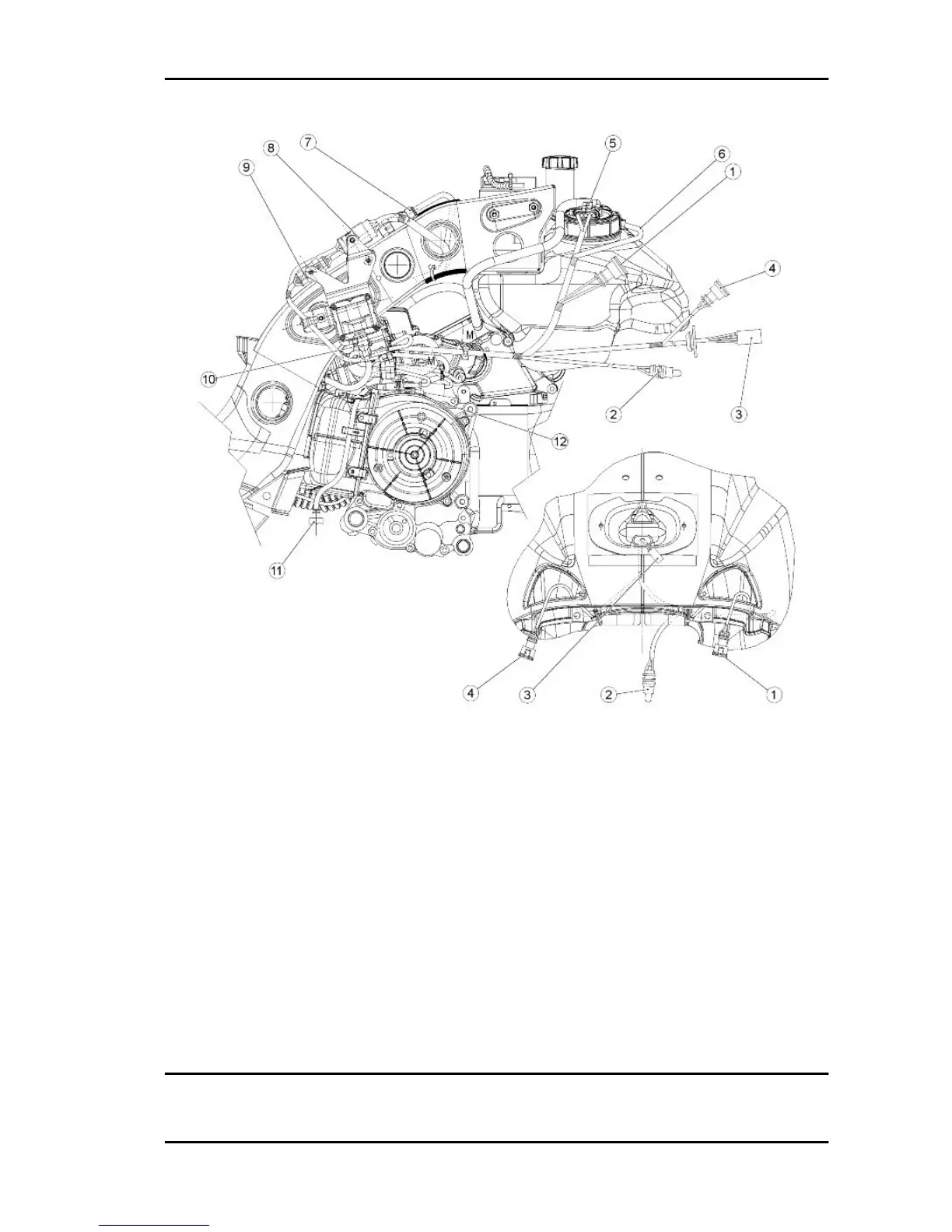

1. Rear right turn indicator
2. License plate light
3. To rear light
4. Rear left turn indicator
5. Fuel pump
6. To the fuel level transmitter
7. Diagnostic socket
8. Generator connector
9. Pick-up connector
10.HV coil
11.Lambda sensor
12.Lambda probe connector
Vespa LX 125 - 150 i.e. Electrical system
ELE SYS - 59
