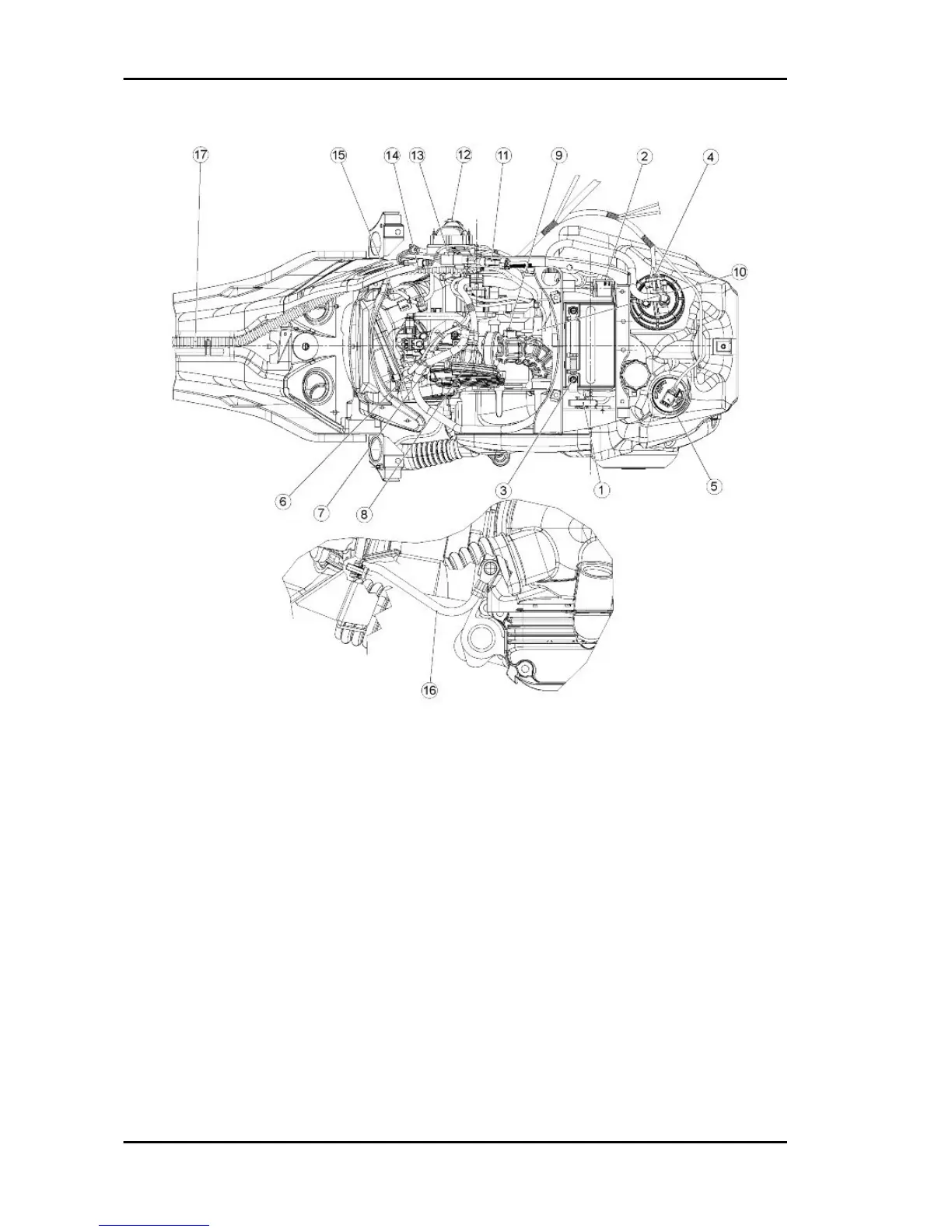

1. Fuse box
2. Start-up remote control switch
3. Battery
4. Fuel pump
5. Fuel level transmitter
6. Injector
7. Engine temperature sensor
8. Injection ECU
9. Start-up motor ground
10.Start-up motor positive terminal
11.Diagnostic socket
12.HV coil
13.Generator connector
14.Pick-up connector
Electrical system Vespa LX 125 - 150 i.e.
