Vespa LX Series User Manual

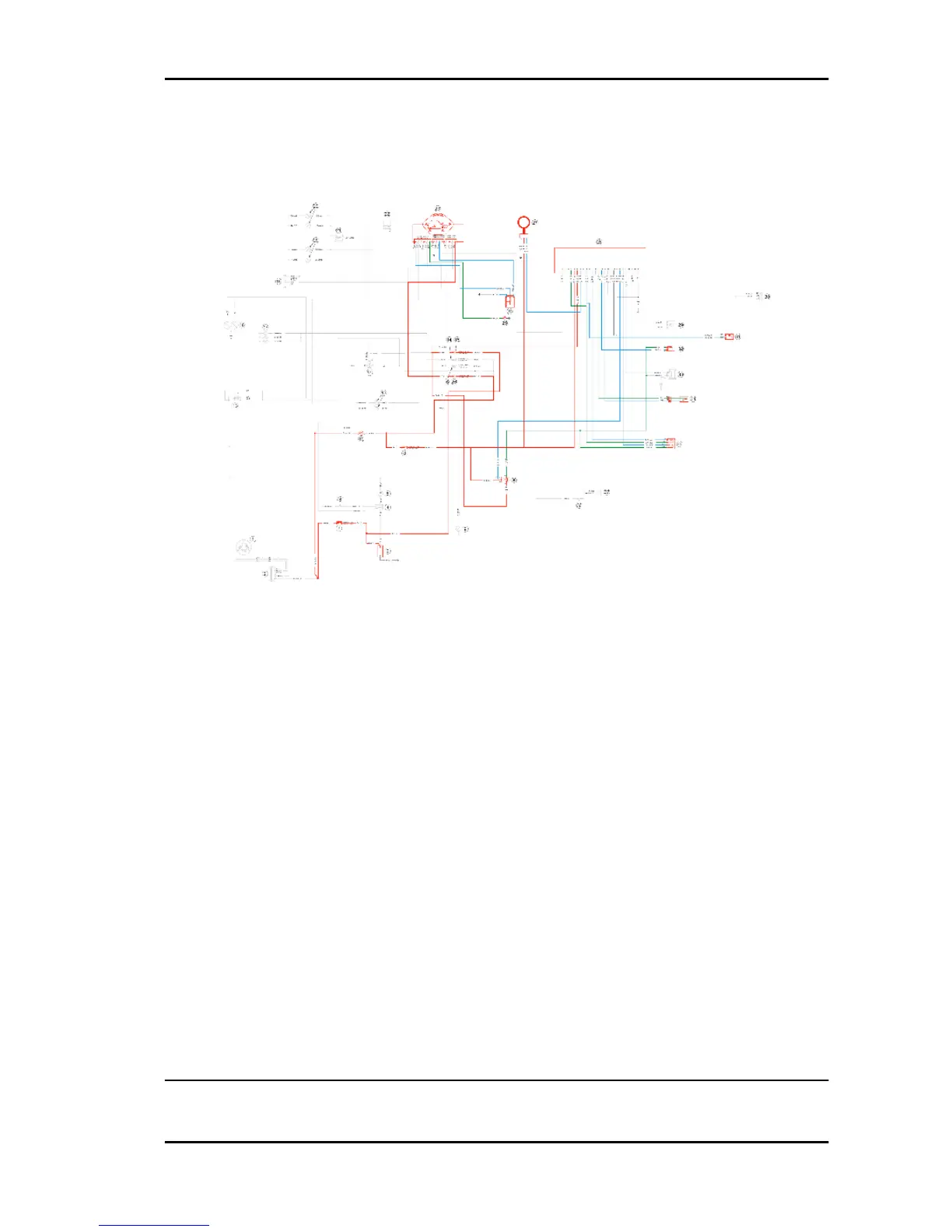

Level indicators and enable signals section
3. 12V-10Ah Battery
7. 20A Fuse
8. 7.5A Fuse
10. Key switch contacts
15. Fuse 15A
23. Instrument panel
24. Fuel level transmitter
25. Oil pressure sensor
26. Fuse 10A
27. Immobilizer aerial
28. Injection electronic control unit
31. Engine temperature sensor
32. Fuel injector
34. Engine speed sensor
35. Lambda probe
38. Injection load remote control
Vespa LX 125 - 150 i.e. Electrical system
ELE SYS - 63

Vespa LX Series Specifications

General

Displacement	124 cc
Cooling System	Air-cooled
Front Tire	110/70 - 11"
Rear Tire	120/70 - 10"
Seat Height	785 mm
Kerb Weight	114 kg
Wheelbase	1, 280 mm
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Engine Type	Single-cylinder, 4-stroke
Fuel System	Carburetor
Max Torque	10.4 Nm @ 6, 000 rpm
Transmission	Automatic
Front Suspension	Single-sided trailing arm with hydraulic shock absorber
Rear Suspension	Hydraulic shock absorber
Front Brake	200mm disc brake
Rear Brake	110mm drum brake
