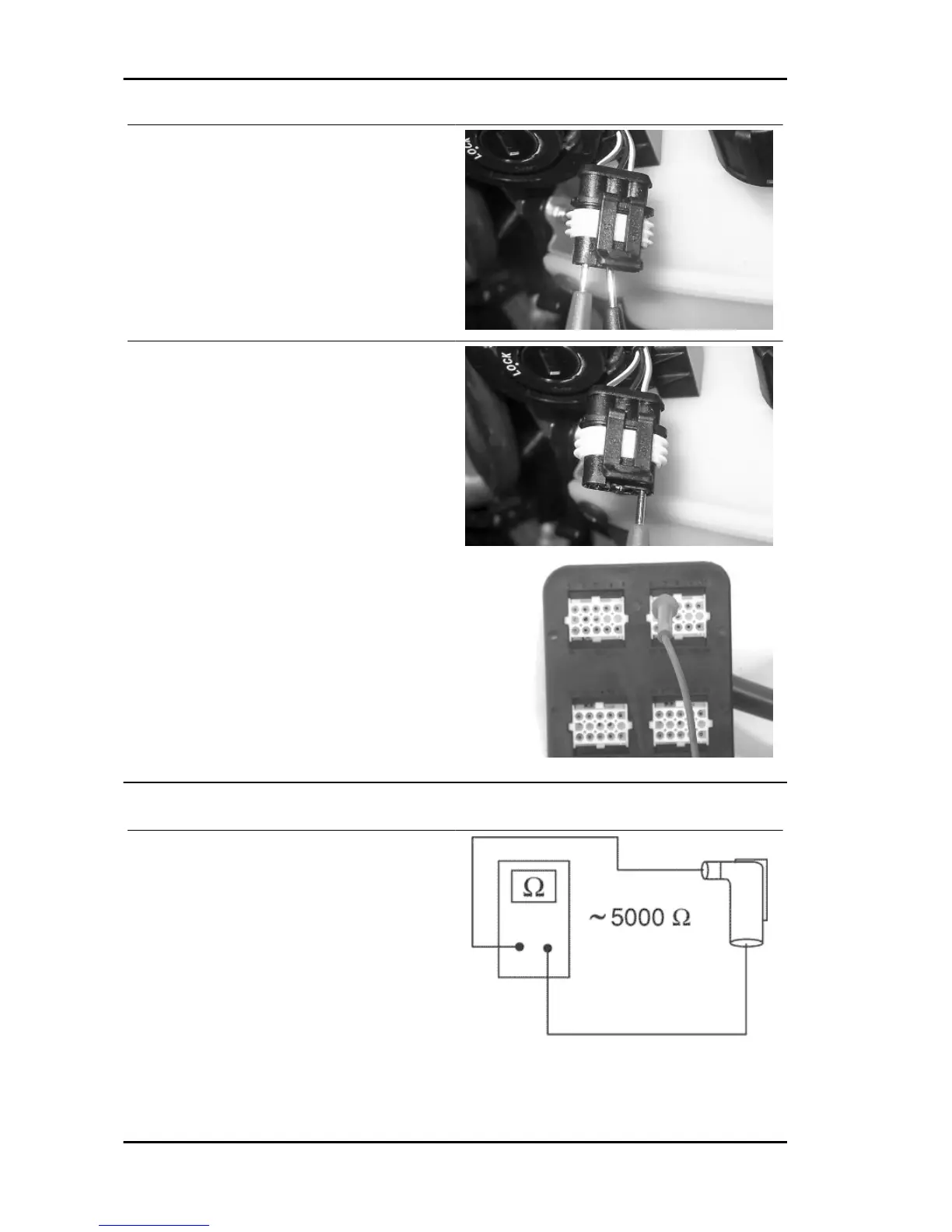

With the ignition key switch at ON check there is
battery voltage between the Red-White and Black
cables
With MIU connector disconnected, check the con-
tinuity between the Orange-White cable and pin 7
of the interface wiring.
Specific tooling
020481Y Control unit interface wiring
020331Y Digital multimeter
Virgin circuit
When the ignition system is not encrypted, any key
will start the engine but limited to 2000 rpm. The
keys can only be recognised if the control unit has
been programmed properly.
The data storage procedure for a previously un-
programmed control unit provides for the recogni-
tion of the red key (master key) as the first key to
be stored to memory: this becomes particularly
important because it is the only key that enables
the control unit to be wiped clean and reprogram-
med for the memorisation of the service keys.
Electrical system Vespa LX 125 - 150 i.e.
ELE SYS - 68
