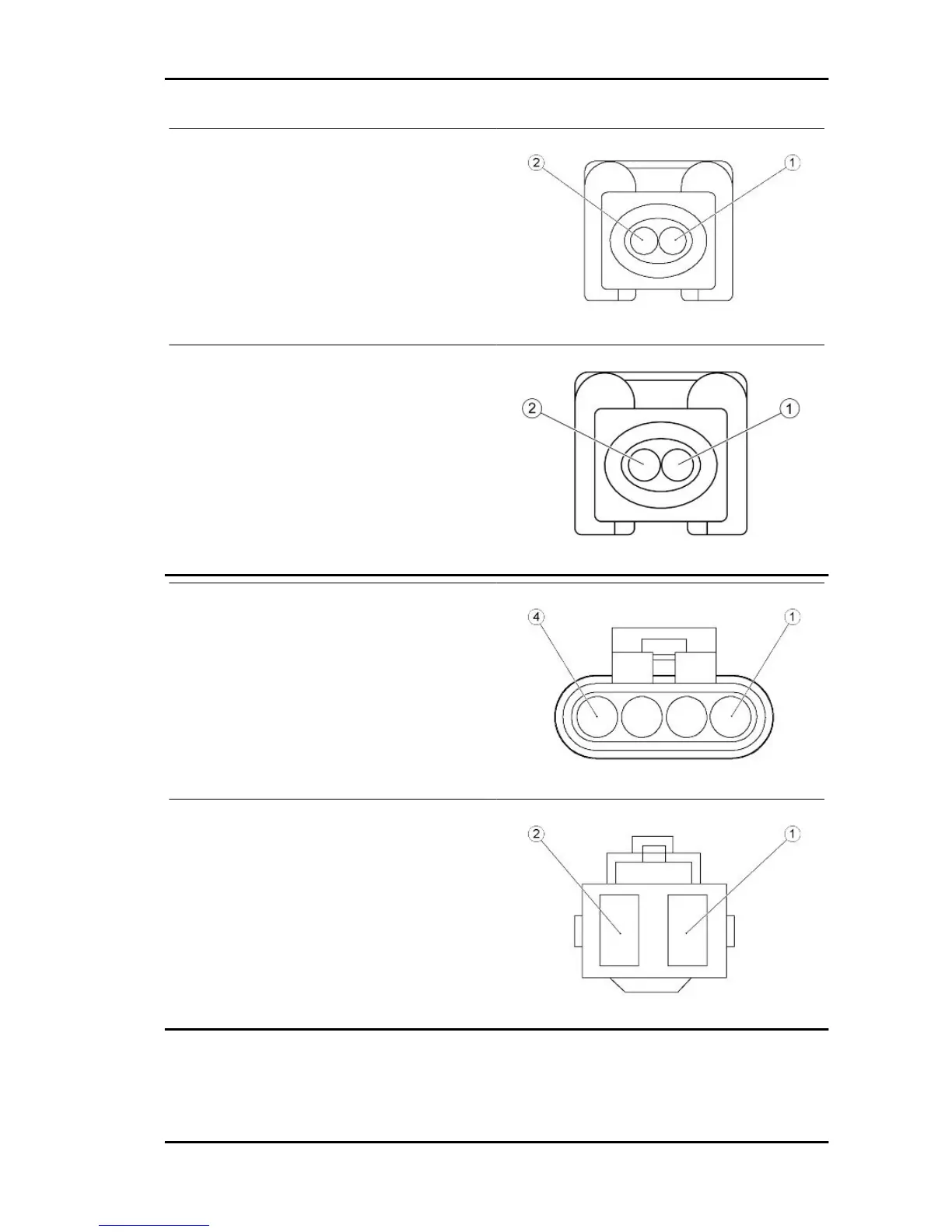

ENGINE TEMPERATURE SENSOR CONNEC-
TOR
1. Electronic control unit (Sky Blue-Green)
2. Ground (Grey-Green)
INJECTOR CONNECTOR
1. Power via remote control (Black-Green)
2. Electronic control unit (Red-Yellow)
LAMBDA PROBE CONNECTOR
1. Positive from control unit (Sky blue-Black)
2. Negative from control unit (White-Green)
3. Electronic control unit (Green-Yellow)
4.Power supply via solenoid (Black-Green)
VOLTAGE REGULATOR CONNECTOR
1. +Battery (Red-Black)
2. Ground (Black)
Vespa LX 125 - 150 i.e. Electrical system
ELE SYS - 83
