Vicon Extra 124 - Technical Data

About the machine
19
Technical data

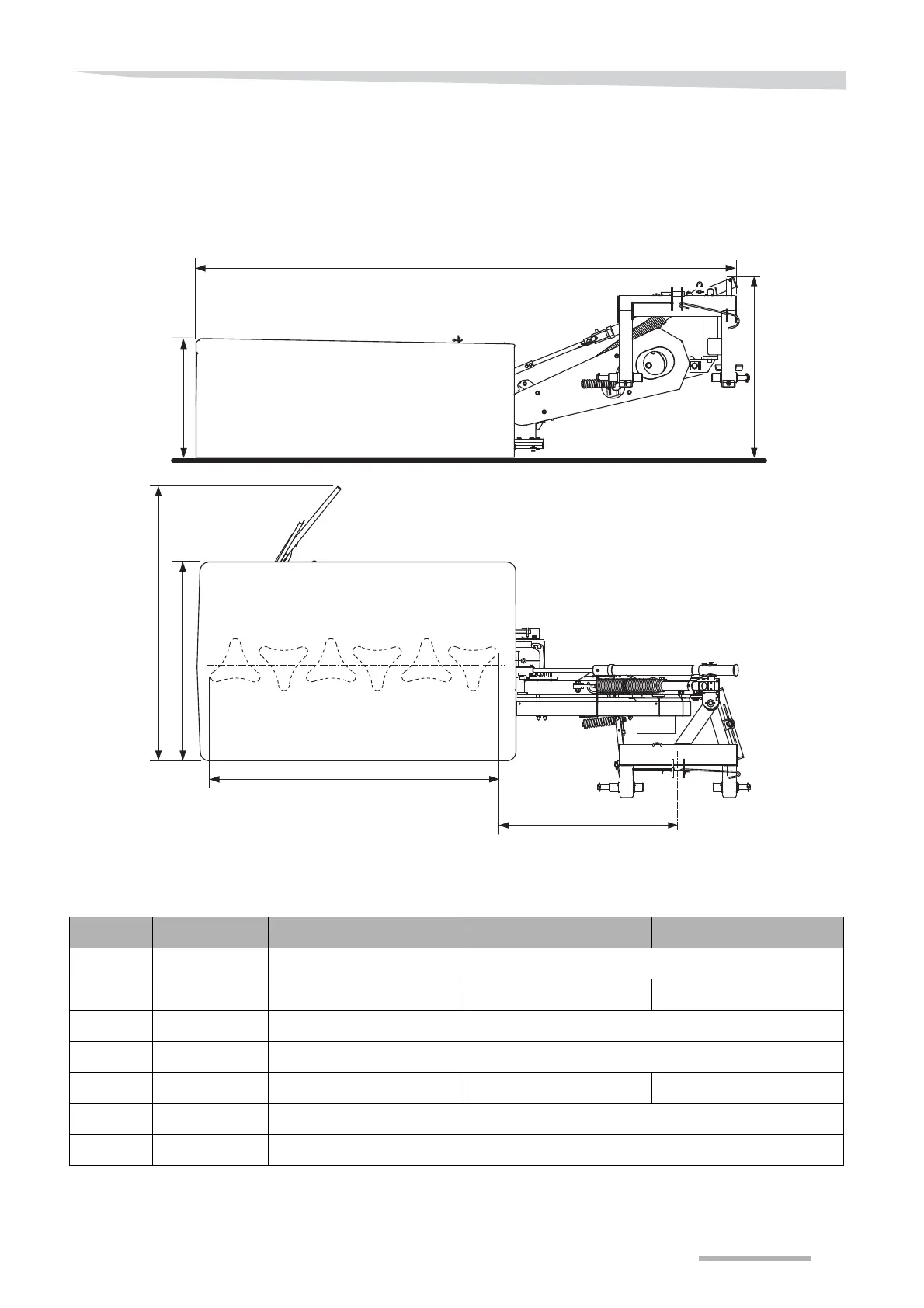

Machine dimensions
A
B
C
F
E
D
G
Dim. Unit 117 122 124
A mm / ft in 1020 / 3’ 4”
B mm / ft in 3300 / 10’ 10” 3650 / 12’ 4050 / 13’ 3”
C mm / ft in 680 / 2’ 3”
D mm / ft in 1270 / 4’ 2”
E mm / ft in 1650 / 5’ 5½” 2000 / 6’ 6½” 2400 / 7’ 10½”
F mm / ft in 1200 / 3’ 11”
G mm / ft in 1730 / 5’ 8”
