Assembly - attachment
23
Coupling the
tractor

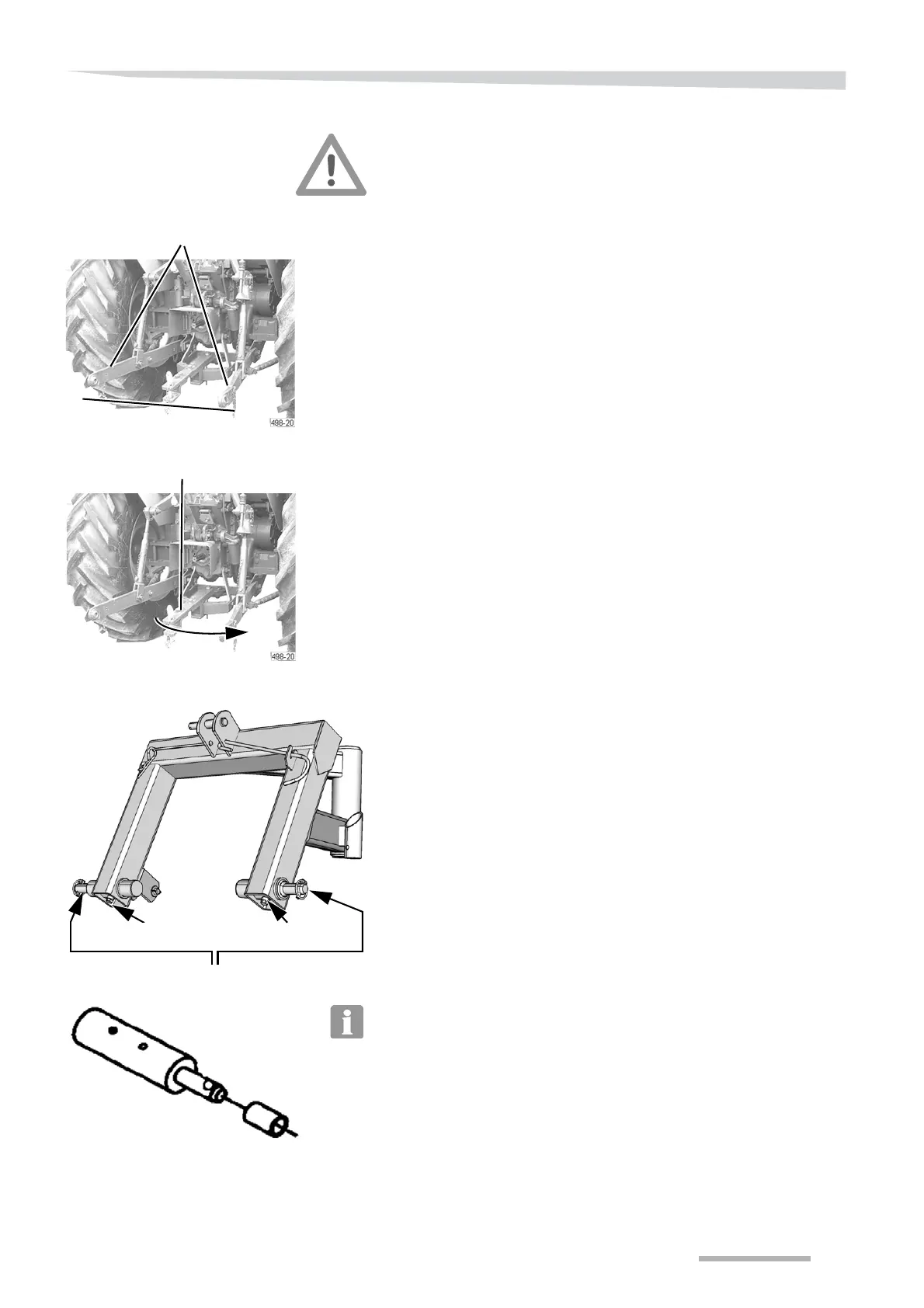

Lock the tractor's lift arms
Lock the tractor's lift arms at the correct height.
If the lift arms are at the correct height,it will prevent damage to the
PTO shaft and injury to persons in the vicinity.
Lowering or raising the lift arms can lead to injury and can damage the
PTO shaft.
Adjust the right and left lift arm so they are at the same height.
Swing the lower link crossbar to the side or remove the lower link
crossbar.
Raise or lower the tractor's lift arms until the machine's linkage pin
can be mounted on the tractor's lift arms.
The machine is fitted with linkage pins which can be turned if required,
depending on the size of the tractor and the model.
The linkage pins are changed in the following way:
• Use a suitable tool to loosen the bolts on the linkage pins.
• Adjust or turn the linkage pins.
• Fit the linkage pins.
• Tighten and secure the bolts.
adjusting the linkage pins to category 1 and 2:
»category 1« page 24
»category 2« page 24
Model 117 is equipped with category 1 linkage pins. If a bushing is
used, category 2 linkage pins may also be used.
