Vicon Extra 124 - Knife and Bolt Replacement Details

Maintenance
76

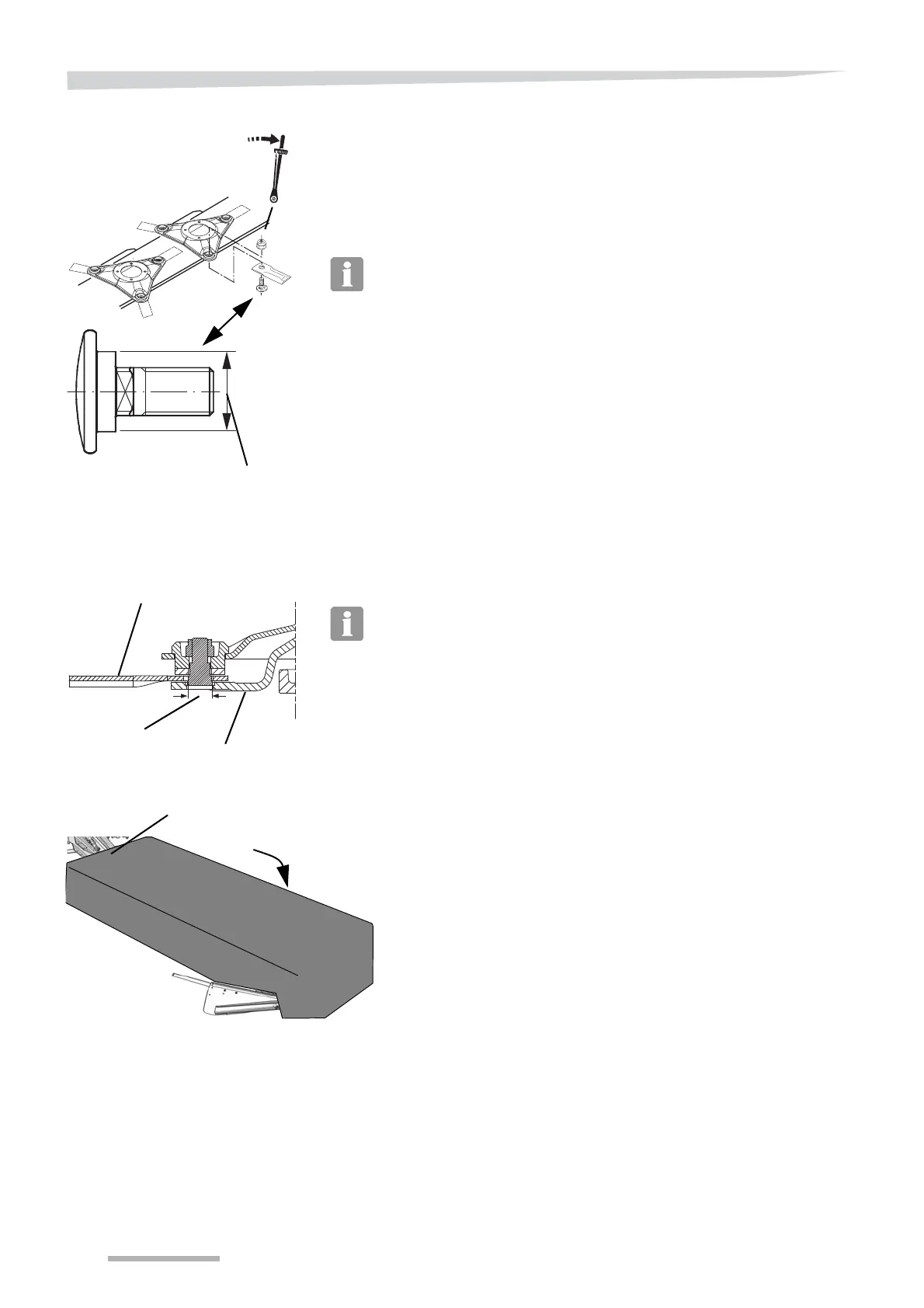

 Turn the cutting discs by hand until the damaged knife is in the
position shown.
 Use a suitable tool to remove the bolt.
 Replace the knife.
 Inspect the bolt for wear.
• If the bolts are damaged or worn, they must be changed.
The minimum diameter of the bolt must not be less than 16 mm (
5
/
8”).
 Mount the knife and bolt.
 Tighten the bolt with a torque wrench to a torque of 95 Nm (70 ft/lb).
If the machine is fitted with knife quick release*, the same requirement
applies for bolt wear.
* Extra equipment.
 »Quick release of knives« page 87
 Close the guards around the machine's cutterbar.
 Fit the pin.
Minimum
16 mm (
5
/8”)
95 Nm +/- 5
(70 ft. lbs. +/- 4)
Min. 16 mm (
5
/8”)
Spring
Knife
Pin
