30

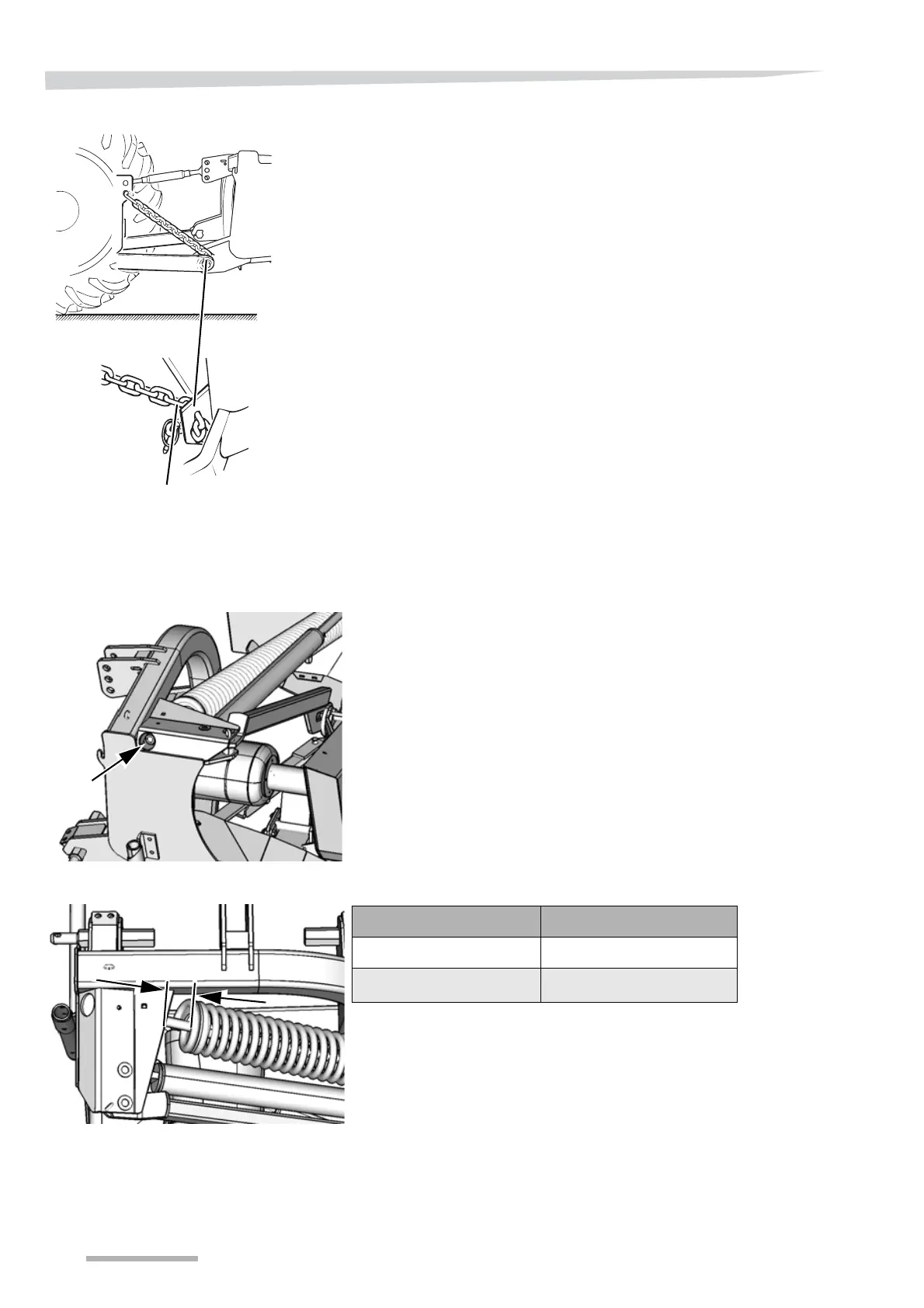

Assembly - attachment
> Fit the chain.
> Lock the lift arms.
Adjusting the springs
To ensure that the cutting unit is correctly balanced, the springs should
be pre-tensioned in the following way:
> use a suitable tool and adjust the springs in the following way:
93-041 f
r
Chain
Model Measurement (mm - ’’)
228 150 (6”)
232
120 (4
3
/4”)
