PIN
CODE
COLOUR
DESCRIPTION
CABLE
1
EV1
Red
1 gr coffee
valve relay
00
2
EV2
Red
2 gr coffee
valve relay
11
3
EV3
Red
3 gr coffee
valve relay
22
4
EV4
Red
4 gr coffee
valve relay
ND
5
POM
Red
Pump relay 44
6 EVLIV
Red
Auto level
valve relay
55
7
EVH2O
Red
Hot water
valve relay
66
8
STEAM1
Red
Left steam
valve
V1
9
ANTIRIS
Red
10
ON/OFF
Red
Meter
relay
88
11
EVSCLT2
Red
ND
12
EVSCLT1
Red
Cup warmer 1 77
Edition 01 of 08/2017
8.4
SERVICE MANUAL
12..........1

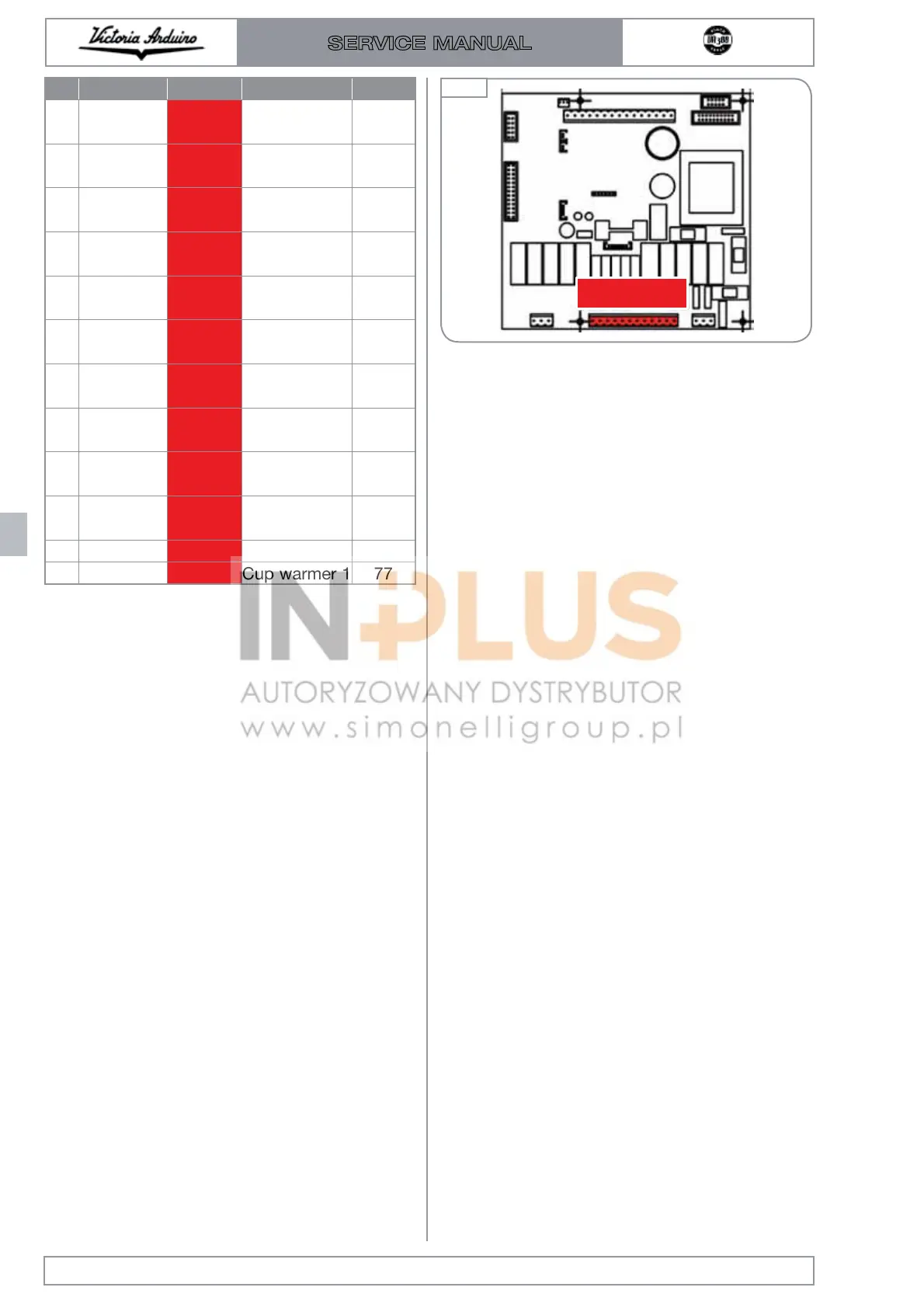

Fig. 266
