2 Partially unscrew the 2 side screws that hold
the front panel in place. Lower and rotate the
panel to remove it.
7.1 DRAINING TUBS AND
SERVICE TAPS
To access the hydraulic part at the base of the
machine it is necessary to:
1 Remove the work surface.

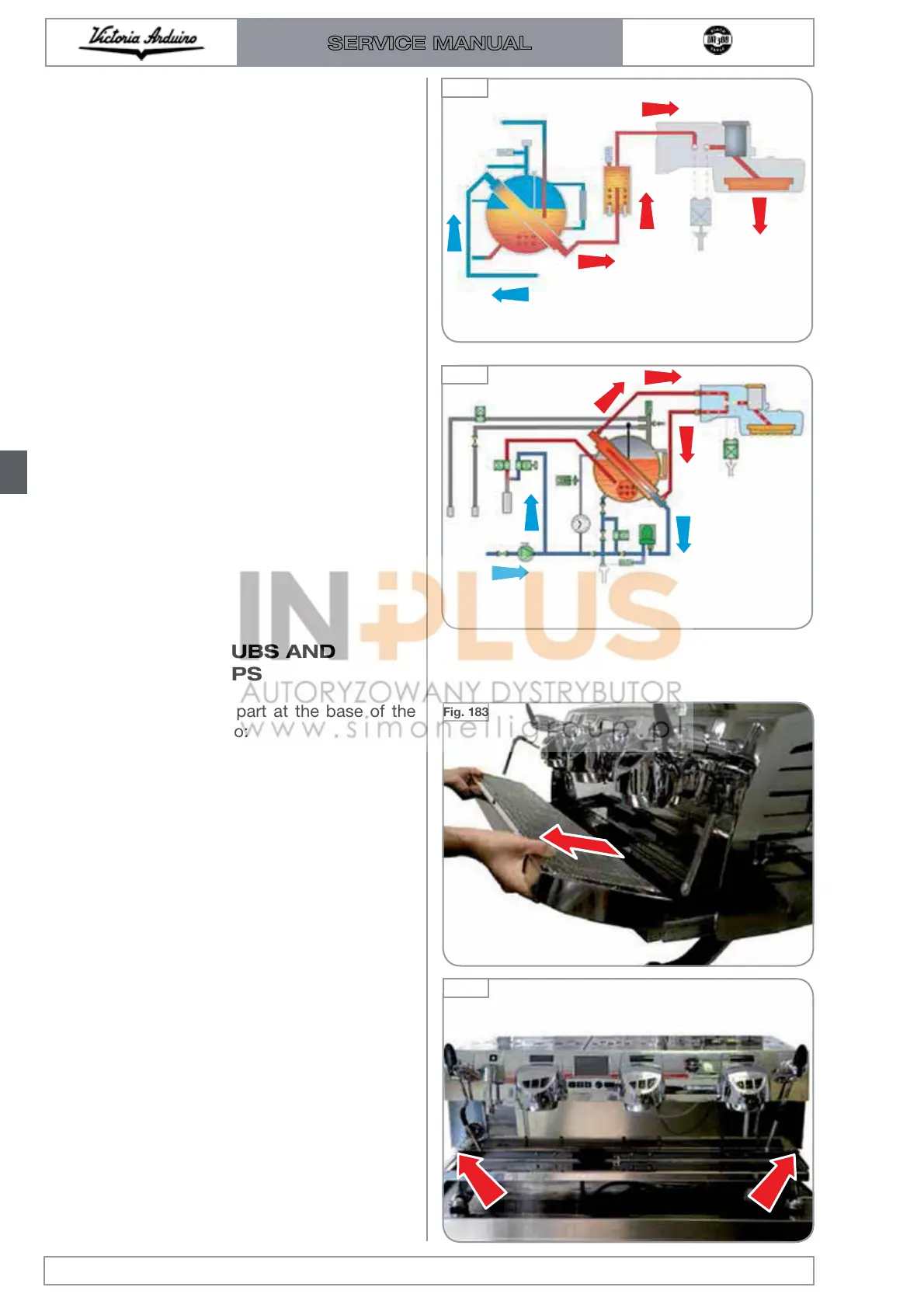

Normally in conventional machines the cold water
is fed into the lower part of the heat exchanger
and then exits from the upper part.
T3 technology instead uses water in a different
way: the liquid enters the heat exchanger from
above and exits from below.
The heat exchanger is smaller than normal and
contains a reduced amount of water.
In the DIGIT version, the water enters under-
neath the heat exchanger and exits from above.
Therefore, it is heated by the effect of heat radia-
tion circulation.
Edition 01 of 08/2017
7.2
SERVICE MANUAL
Fig. 184
Fig. 183
T3 version
Fig. 181
DIGIT version
Fig. 182
