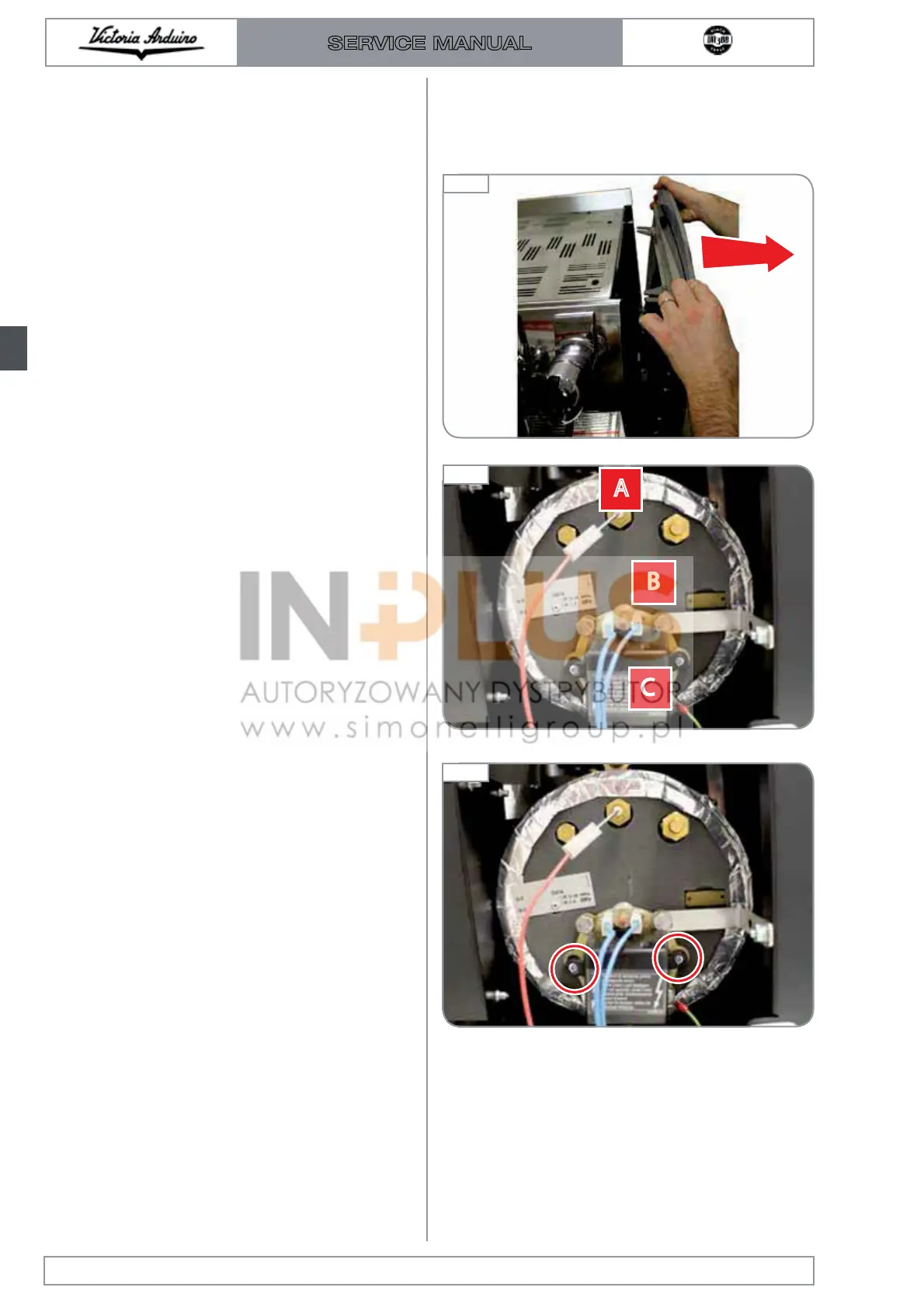

1 Loosen the two Phillips screws on the upper
right side of the cup warmer and carefully
remove the side
.
The visible parts are:
A the level probe.
B the 135° heat protection.
C the cover of the resistor connection terminal.
5.2 ACCESS TO THE HEATER
To access the heating elements and the visible
parts of the heater:
To access the terminal, simply unscrew the two
screws on the cover with a Phillips screwdriver.
Edition 01 of 08/2017
5.4
SERVICE MANUAL
Fig. 116
A
B
C
Fig. 117
Fig. 118
