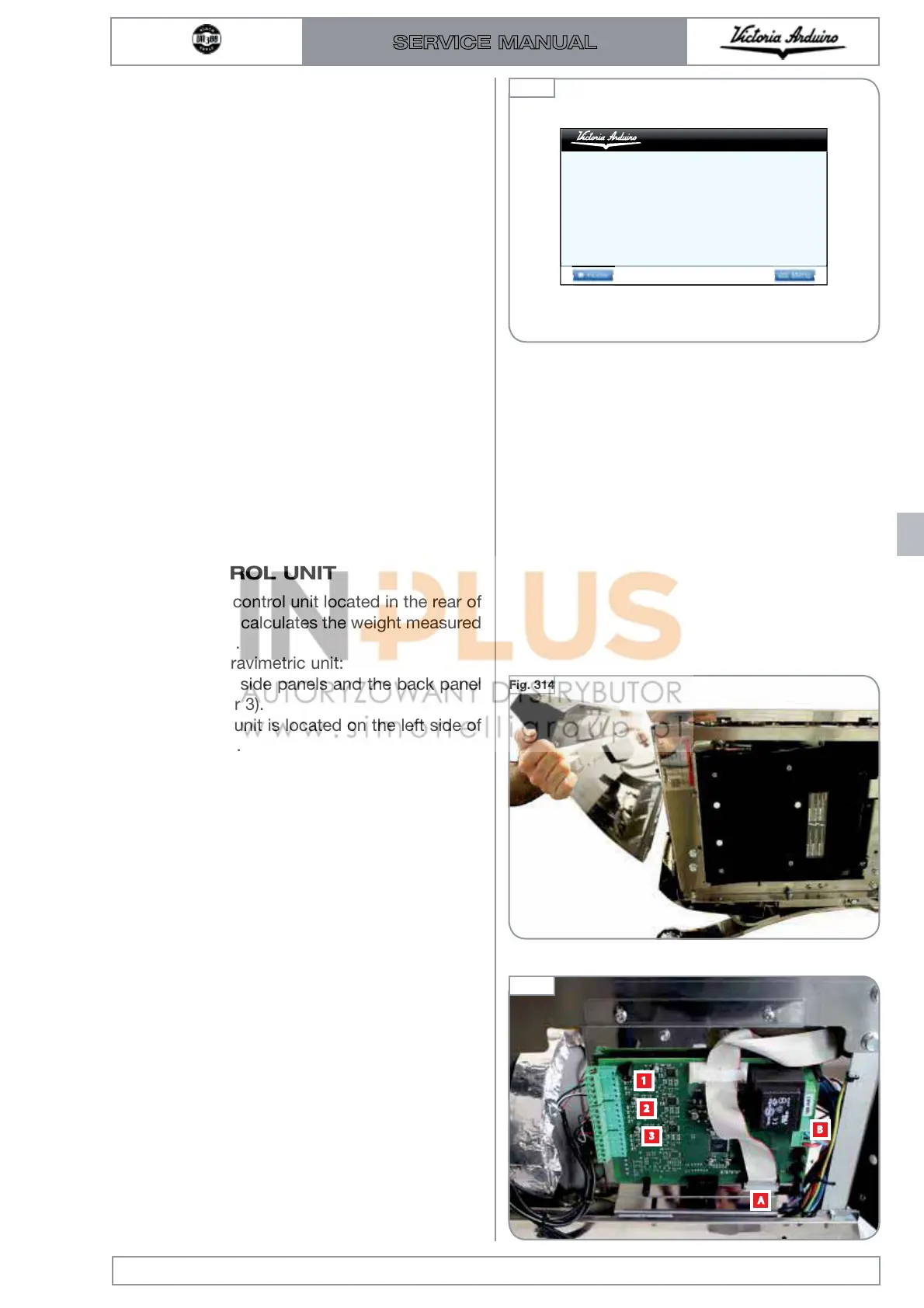

8.10 GRAVIMETRIC
CONTROL UNIT
The gravimetric control unit located in the rear of
the machine and calculates the weight measured
by the load cells.
To access the gravimetric unit:
1 Remove the side panels and the back panel
(see Chapter 3).
The control unit is located on the left side of
the machine.
2 Disconnect the cables for groups 1, 2 and
3, the FLAT cable "A" and the power supply
"B".
4 Set the various parameters using the scroll
wheel to scroll through the various options
e.g.: T3/digit, 2/3 units etc.
See Chapter 10 for more details.
5 Exit configuration by pressing the “Home”
key.
Edition 01 of 08/2017
8.19
SERVICE MANUAL
Fig. 314
1
2
3
A
B
Fig. 315
Impostazioni tecniche
Operating mode T3
Machine groups 3
Cup warmer left off
Cup warmer right off
Menu Principale
Operating mode T3
Machine groups 3
Cup warmer left off
Cup warmer right off
Fig. 313
