Victoria Arduino BLACK EAGLE VA388 User Manual

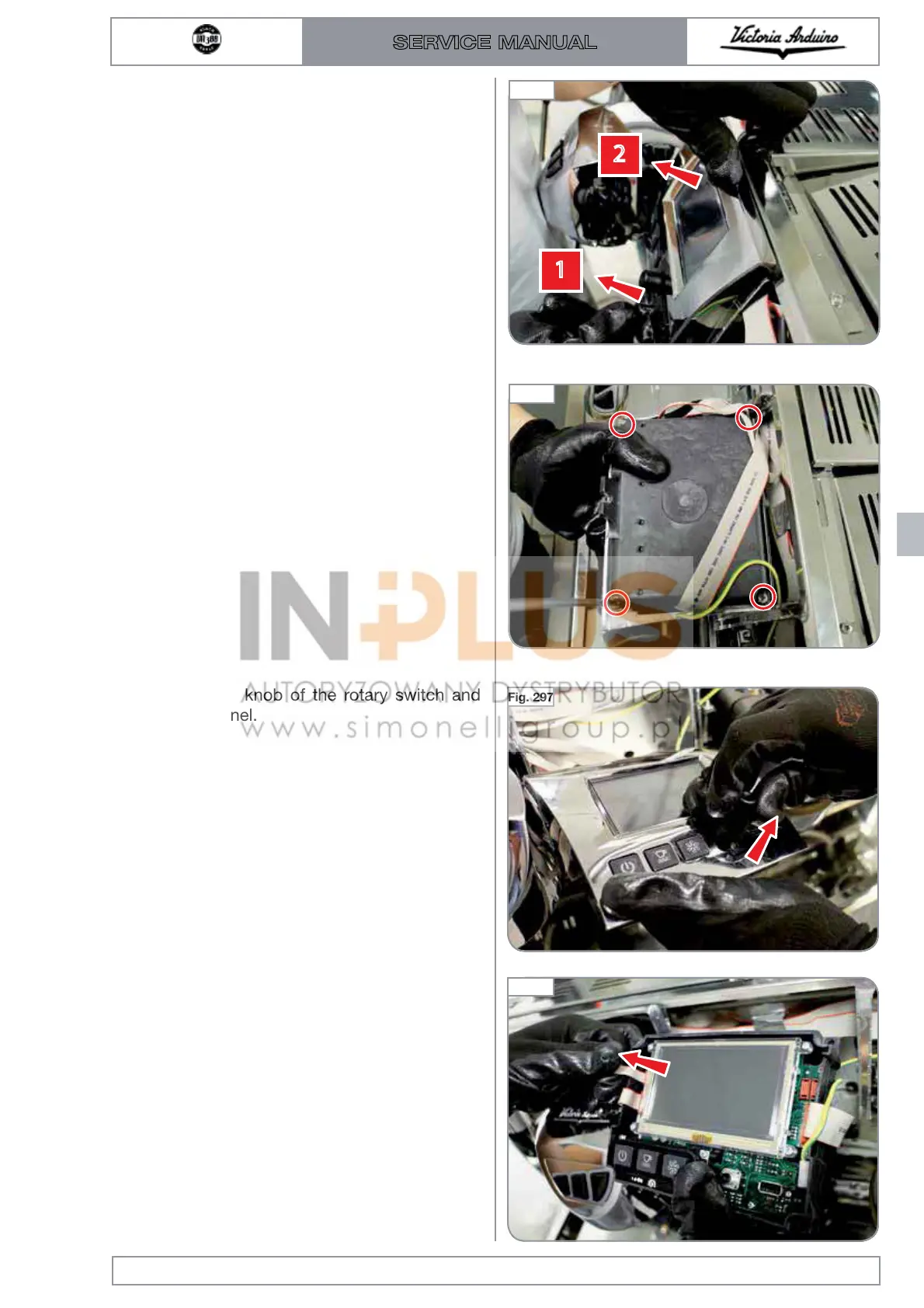

3 Remove the screen from its holder.
First lift the lower side, then the upper.
4 Unscrew the four screws that secure the
back cover.
5 Remove the knob of the rotary switch and
then the panel.
6 Disconnect all ribbon cables that connect
the screen to the power control unit, the but-
tons and the hot water button.
Edition 01 of 08/2017
8.13
SERVICE MANUAL
2
1
Fig. 295
Fig. 296
Fig. 297
Fig. 298
